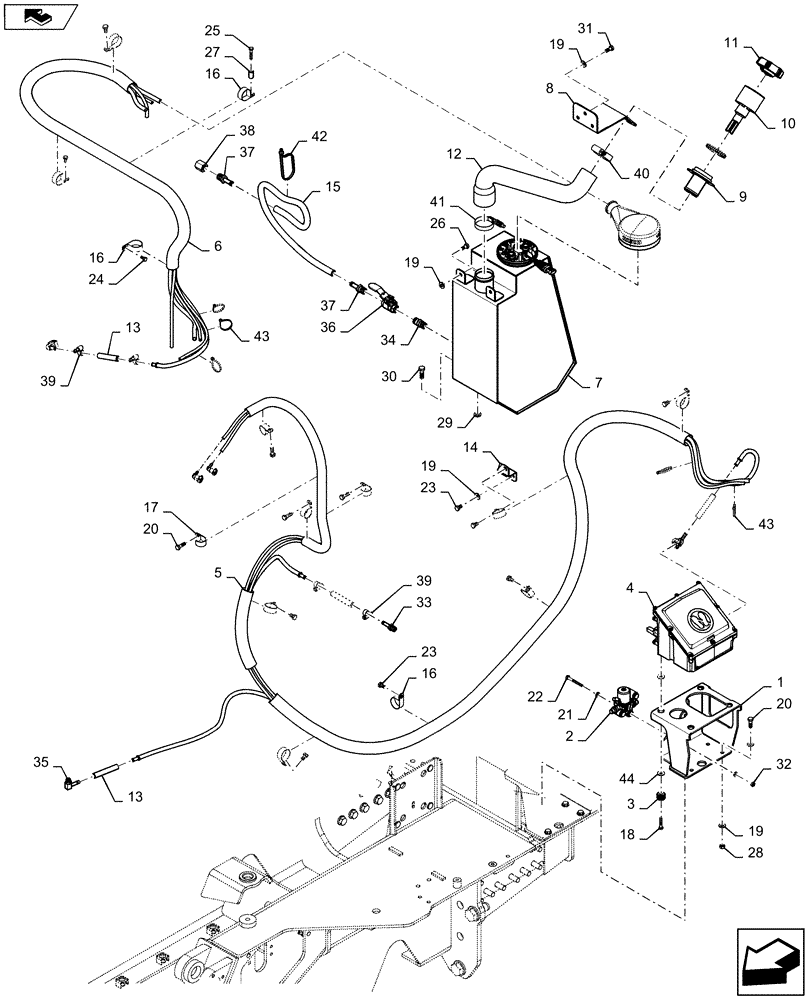

Запчасти Case 850M WT/LGP (10.500.AA[03]) - DEF TANK STEEL (10) - ENGINE

1

47416021

BRACKET

DEF SUPPLY MODULE Bracket

1шт.

2

84151635

HEATER VALVE

Inlet/ Outlet, Electronic Connections

1шт.

3

84564421

ISOLATOR

Vibration

4шт.

4

47364111

ECU

MODULE ASSY, DCU FLASHED

1шт.

5

84602165

HOSE

DEF FRONT

1шт.

6

84602169

HOSE

DEF REAR

1шт.

7

47380667

EXHAUST FLUID TANK

TANK, 34 L

1шт.

8

47367235

BRACKET

REMOTE FILL

1шт.

9

84315307

FILLER

WA Filler

1шт.

10

87483158

NECK FILLER

UREA TANK

1шт.

11

84206552

FILLER CAP,Male

UREA TANK

1шт.

12

47367237

HOSE

UREA FILL

1шт.

13

84527816

HOSE,9.5mm ID x 100mm L

100mm Length

2шт.

14

47384029

BRACKET

DEF Bracket

1шт.

15

47391104

FUEL HOSE

DEF DRAIN

1шт.

16

87301688

CLAMP,41.2mm, Coat, P Type

CLOSED 41.2MM INSUL 7/16 BOLT

11шт.

17

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

33.3M P INSUL 3/8 BOLT

4шт.

18

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

19

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

M10, 10.65X23.0X2.2 HTS BORON

15шт.

20

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

8шт.

21

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

22

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

23

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

8шт.

24

120103

BOLT,M8 x 1.25 x 16mm, Cl 8.8

2шт.

25

120106

BOLT,M8 x 1.25 x 45.45mm, Cl 8.8

1шт.

26

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

4шт.

27

87036413

SPACER,10.34mm ID x 15.88mm OD x 23.8mm L

1шт.

28

825-1410

NUT,M10, Cl 8

4шт.

29

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

2шт.

30

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

31

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

3шт.

32

9706690

NUT,M8 x 1.25, Cl 8

3шт.

33

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

34

84422746

NIPPLE

STR FITTING NPTF

1шт.

35

86625228

HYD CONNECTOR,90°, 3/8" Hose x 9/16-18

STEM 90 BEAD HOSE 3/8ID X 9/1 CASE

1шт.

36

84422753

SHUT-OFF VALVE,1/2" NPT x 1/2" NPT

VALVE, BALL SS NPT

1шт.

37

84422999

FITTING,M12, 1/2 - 14, 66mm L, SS

MALE NPTF BEAD CONNECT

2шт.

38

84423014

CAP,1/2" - 14

FEMALE NPTF

1шт.

39

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

40

214-3140

HOSE CLAMP,1-3/4" - 2-5/8", HD Worm

1шт.

41

L115548

CLAMP,57.15mm - 79.38mm

HOSE CLAMP CHART

1шт.

42

L18331

CABLE TIE,375.9mm L, Nylon, Black

NYLON TIE 15 INCH

1шт.

43

L11541

CABLE TIE,203.2mm L, Nylon

6шт.

44

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 X 25 X 2 CST DOR

8шт.
