(05.100.03[01]) - FILTERS

Запчасти Case 850M WT/LGP (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE

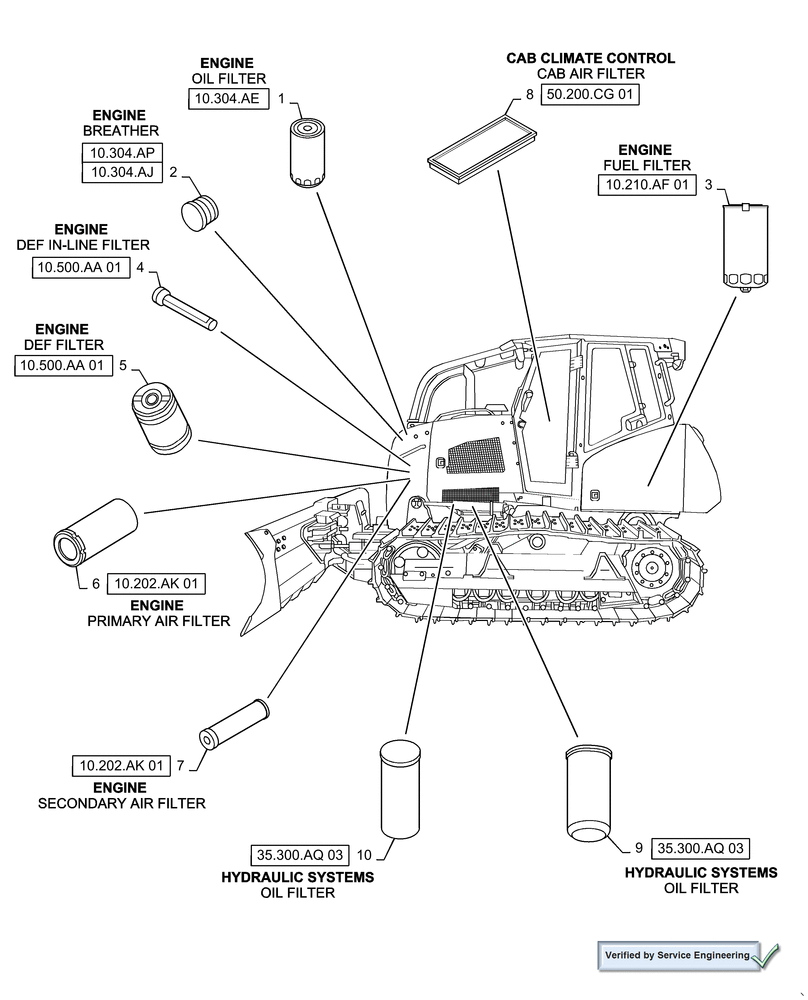

Схема запчастей Case 850M WT/LGP - (05.100.03[01]) - FILTERS (05) - SERVICE & MAINTENANCE
10.304.ap
35.300.aq 03
10.500.aa 01
5
10.210.af 01
1
10.500.aa 01
7
10.304.ae
6
35.300.aq 03
3
10.304.aj
10
2
8
4
10.202.ak 01
50.200.cg 01
10.202.ak 01
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4897898

ENGINE OIL FILTER,93.5mm OD x 173mm L, M27, 10 Microns

Spin-On

1шт.

2

2859335

BREATHER

Engine

1шт.

3

84337371

FUEL FILTER

Spin-On

1шт.

4

84247272

FILTER,In-Line

DEF

1шт.

5

84254852

FILTER

DEF

1шт.

6

8602987

ELEMENT

Primary

1шт.

7

8602988

ELEMENT

Secondary

1шт.

8

87691825

CAB FILTER

Fresh Air

1шт.

9

87478098

HYDRAULIC OIL FILTER

Spin-On, Serial Range: -NGC103102

1шт.

9

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

Spin-On, Start Serial: NGC103103

1шт.

10

254353A1

HYDRAULIC OIL FILTER

Spin-On, Serial Range: -NGC103102

1шт.

10

47833566

HYDRAULIC OIL FILTER

Spin-On, Start Serial: NGC103103

1шт.

11

84412164

FUEL FILTER,94mm OD x 192mm L, M20 x 1.5, 10 Microns

Located on Engine, Spin On

1шт.
