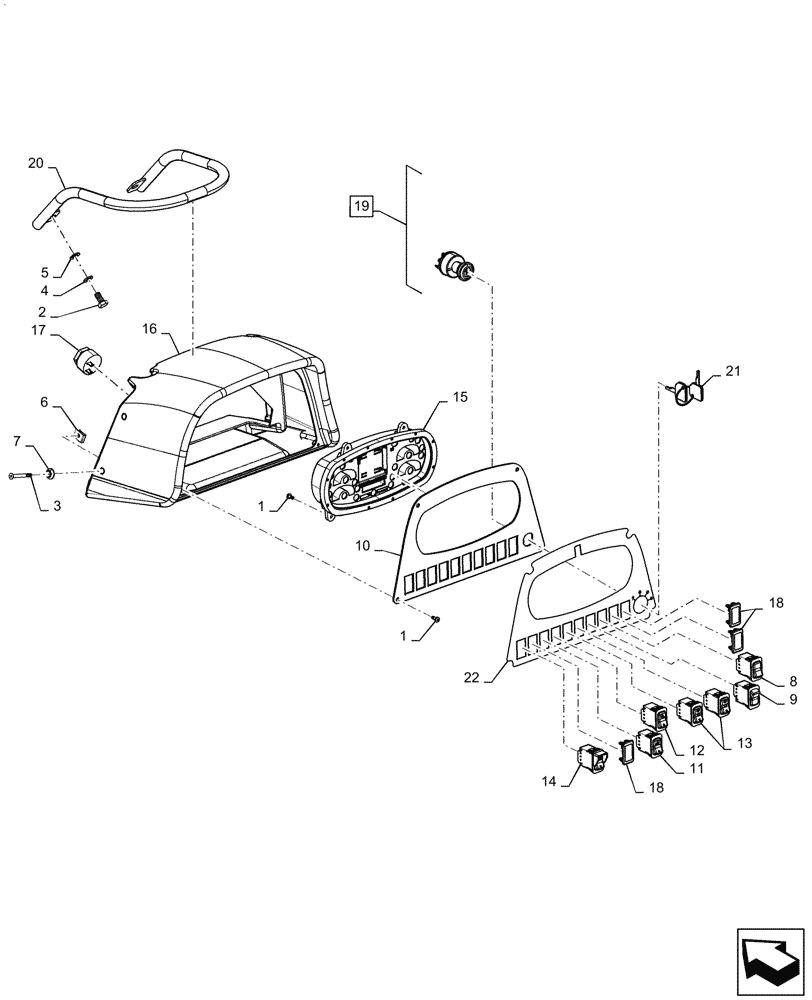

Запчасти Case 850M WT/LGP (90.160.AO[01]) - INSTRUMENT CLUSTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

540-712

SCREW,Cross Pan Hd, M5 x 12

8шт.

2

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

3

843-1650

SCREW,Flat , M6 x 50mm, Cl 4.8

4шт.

4

892-11010

LOCK WASHER,M10

2шт.

5

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

6

76047274

NUT,M6 x 1

4шт.

7

79076208

WASHER

Nylon Cup

4шт.

8

84222272

SWITCH

Rocker

1шт.

9

84222273

ROCKER SWITCH

Rocker Display

1шт.

10

47581785

PLATE

1шт.

11

84375594

SWITCH

Rocker Front Work Lamps

1шт.

12

84375595

SWITCH

Rocker Rear Work Lamps

1шт.

13

84375596

SWITCH

Rocker Wiper With Washer

2шт.

14

84375599

SWITCH

Rocker Park Brake With Gaurd

1шт.

15

84380414

INSTRUMENT CLUSTER

1шт.

15

84380414R

REMAN-INSTR CLUSTER

1шт.

15

84380414C

CORE-CLUSTER, INSTR

Return Number

1шт.

16

84577483

TRIM PANEL

1шт.

17

87312549

HORN

Buzzer Warning

1шт.

18

126844A1

PLUG,1.427” x .62” , Plastic

Switch Cover

3шт.

19

427182A1

IGNITION SWITCH

Incl 21

1шт.

20

47496041

HANDLE

1шт.

21

86502201

IGNITION KEY

Set Of 2 Keys

1шт.

22

47405183

DECAL

Counsel

1шт.
