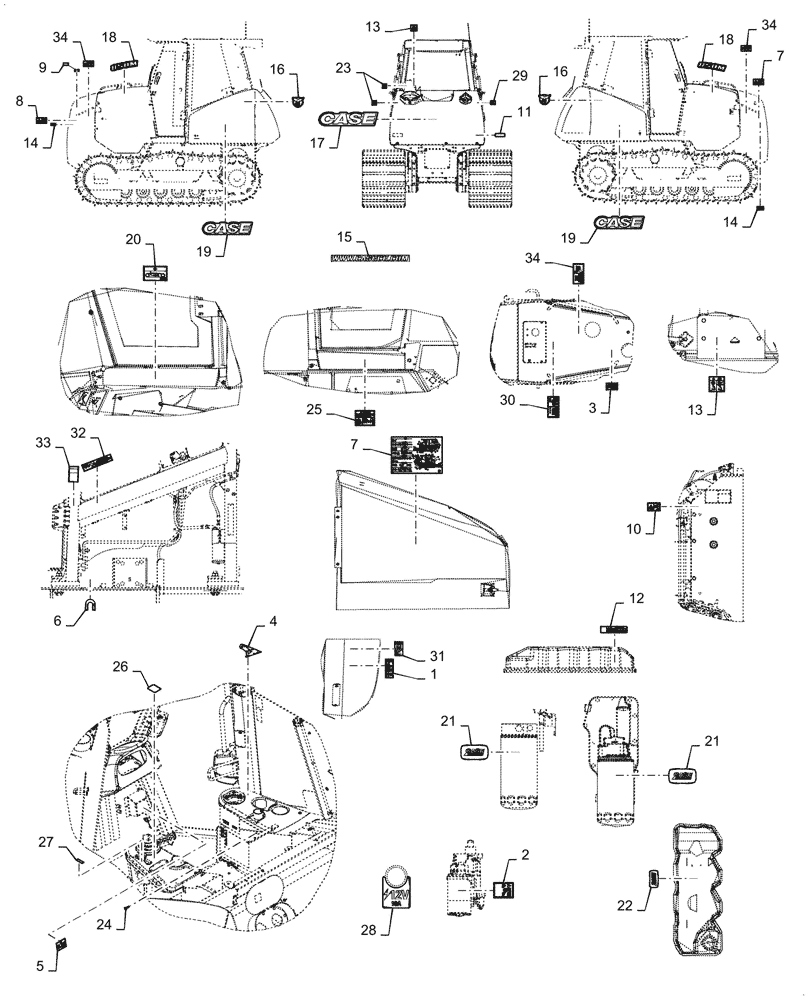

Запчасти Case 850M WT/LGP (90.108.AE[01]) - DECALS, ENGLISH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

321-7030

WARNING DECAL

Do Not Jump

1шт.

2

321-7040

DANGER DECAL

Engine Start

1шт.

3

8603092

WARNING DECAL,55mm x 95mm H

Ether

1шт.

4

47426825

DECAL

Blade Control

1шт.

5

47449566

DECAL,78mm x 58mm H

Machine Brake

1шт.

6

47458056

DECAL

Master Disconnect

1шт.

7

47460564

DECAL

Maintenance Chart

1шт.

8

47543424

DANGER DECAL

Runover Hazard

2шт.

9

T41159

TAPE,82mm x 35mm H

Bracket Adhesice

1шт.

10

47739196

WARNING DECAL,80mm x 50mm H

Fan Hazard

2шт.

11

449842A1

REFLECTOR,160mm x 50.8mm H - Red

Red

1шт.

12

84242780

WARNING DECAL

Fuel Pressure

1шт.

13

84284896

DECAL,DEF TANK identification label

1шт.

14

84394350

WARNING DECAL

Pinch Point

2шт.

15

84468361

DECAL,436mm x 27mm H

CASECE.COM

2шт.

16

84468362

DECAL,194mm x 170mm H

Case Eagle

2шт.

17

84468364

DECAL

Case Logo

1шт.

18

84468401

DECAL

850M

2шт.

19

84495419

DECAL,834mm x 212mm H

RH, Case Logo

2шт.

20

84499780

DECAL,130mm x 80mm H

Track Adjustment

1шт.

21

84558035

DECAL,70mm x 58mm H

Case Filter

2шт.

22

84558036

DECAL,66mm x 33mm H

Case Engine Medallion

1шт.

23

85804338

DECAL,50mm x 50mm H

Diesel Fuel Fill

1шт.

24

86981649

POP RIVET,Pop, 4.76mm OD x 14.61mm L

Mounting Rivet

1шт.

25

87416964

DECAL,110mm x 85mm H

Lift and Tie-Down

1шт.

26

87422184

DECAL,57mm x 69mm H

Forward, Neutral, Reverse

1шт.

27

87422188

DECAL,16.5mm x 55mm H

Throttle

1шт.

28

87601526

DECAL,35mm x 40mm H

12V, 10A

1шт.

29

87726702

DECAL,50mm x 50mm H

Hydraulic Oil

1шт.

30

329044A1

WARNING DECAL,168mm x 88mm H

Fluid Under Pressure

1шт.

31

382622A1

DECAL,60mm x 90mm H

General Operation

1шт.

32

383972A1

WARNING DECAL,195mm x 37mm H

ROPS

1шт.

33

383973A1

DECAL,60mm x 100mm H

Danger, Battery

1шт.

34

418242A3

WARNING DECAL,168mm x 88mm H

Hot Surface, Muffler

2шт.
