Запчасти Case 850M WT/LGP (90.100.AU[03]) - SIDE PANELS, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

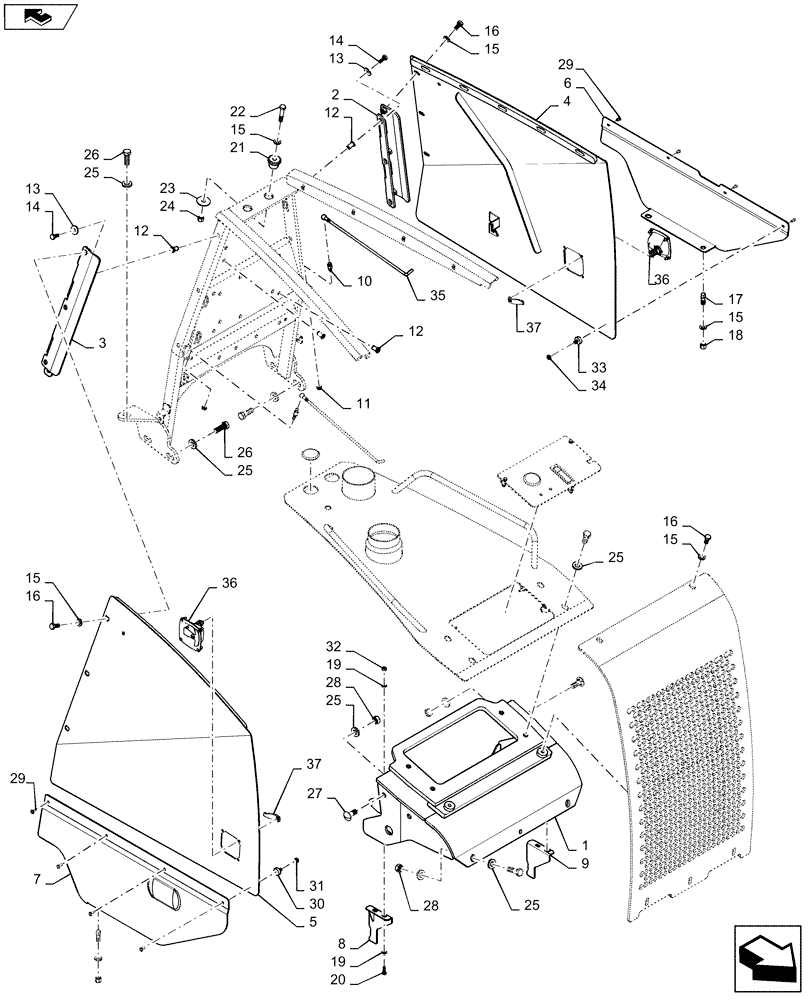

Схема запчастей Case 850M WT/LGP - (90.100.AU[03]) - SIDE PANELS, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
25
8
14
25
6
24
21
7
25
2
25
28
16
31
15
19
13
22
28
4
15
23
1
26
3
13
37
5
12
29
17
15
12
25
33
18
12
16
10
26
15
36
27
15
30
35
11
16
20
34
home
14
37
29
19
32
9
36

Артикул

Название

Примечание

Количество

1

47526407

SUPPORT

HOOD

1шт.

2

84401692

HINGE

DOOR HINGE - LH

1шт.

3

84416648

HINGE

DOOR HINGE - RH

1шт.

4

47502097

DOOR

DOOR, LH CASE

1шт.

5

47502101

DOOR

Door, RH CASE

1шт.

6

47395129

PLATE

LH Side Shield

1шт.

7

47395127

PLATE

RH Side Shield

1шт.

8

47482874

PLATE

DOOR LATCH LH

1шт.

9

47482878

PLATE

DOOR LATCH RH

1шт.

10

109498A1

STUD

STUD BALL

2шт.

11

86521605

FLANGE NUT,5/16"-18, Cl 5

2шт.

12

85825181

INSERT

THREADED

20шт.

13

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

M10, 10.65X31.0X3.0 HTS BORON ZN

6шт.

14

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

6шт.

15

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

12шт.

16

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

6шт.

17

418479A2

PIN

SIDE SHIELD LOC.

4шт.

18

87497916

NUT

PREV TORQUE, NON-MTL M12 8 ZND

4шт.

19

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

8шт.

20

43234

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

21

R29799

SHOCK ABSORBER

INSULATOR RADIATOR ISOLATOR

2шт.

22

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

23

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

HT TRD FLAT 1/2 ID BE

2шт.

24

87497918

NUT

PREV TORQUE, NON-MTL M12 X 13.8 10

2шт.

25

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

10шт.

26

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

6шт.

27

86595832

CARRIAGE BOLT,Sht Sq Nk, M16 x 40mm, Cl 8.8, Full Thd

4шт.

28

392530

NUT,M16, Cl 10

4шт.

29

A161780

BUMPER

Rubber Bumper

8шт.

30

84469097

BUMPER

RUBBER

8шт.

31

86637931

JAM NUT,Jam, 5/16"-18, G5

8шт.

32

43362

NUT,M8 x 1.25, Cl 10

4шт.

33

87330642

BUMPER

RUBBER VIBRATION MOUNT

6шт.

34

86637933

JAM NUT,5/16" - 24, Gr 5

6шт.

35

87308889

ROD

ROD/A, DOOR PROP

2шт.

36

47433308

LATCH

Door

2шт.

37

47447084

LATCH

Cam

2шт.

Выбрано товаров: 37
