Запчасти Case 850M WT/LGP (90.100.AU[02]) - FRONT COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

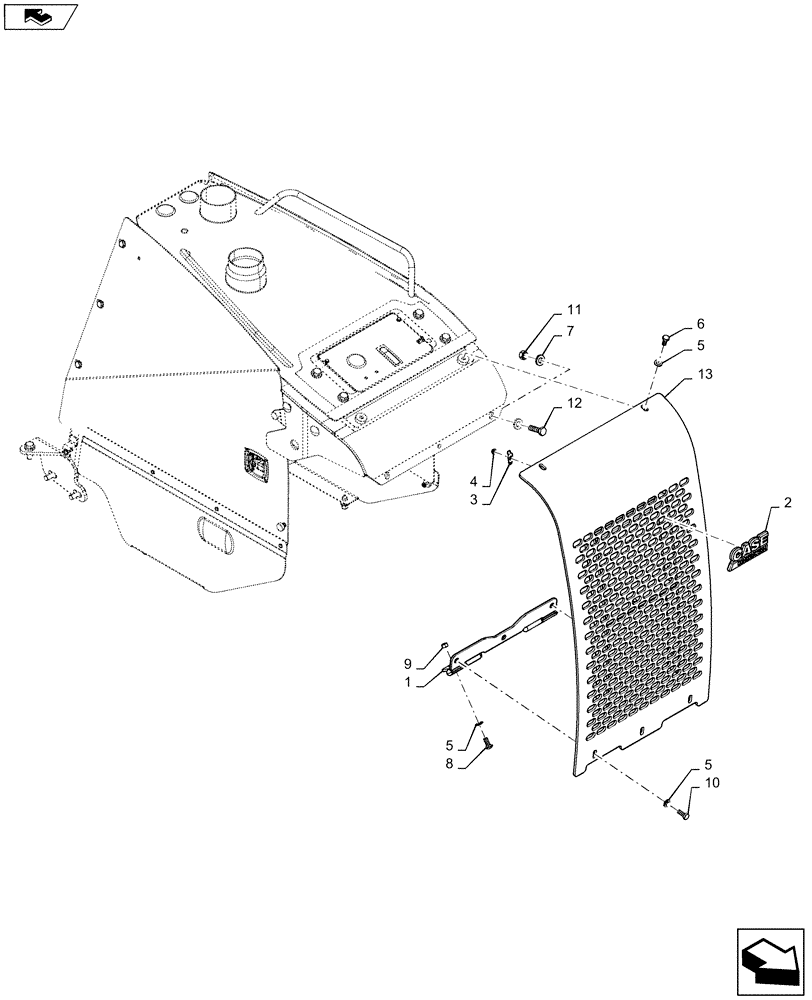

Схема запчастей Case 850M WT/LGP - (90.100.AU[02]) - FRONT COVER, HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
11
2
7
12
13
5
10
1
9
5
5
4
home
6
3

Артикул

Название

Примечание

Количество

1

84401697

HINGE

GRILLE

1шт.

2

84478049

EMBLEM

GRILL MEDALLION, CASE

1шт.

3

84494357

MOUNTING PLATE

DECAL MOUNT, CASE

2шт.

4

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

5

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

M12, 13.65X24.9X3.2 HTS BORON ZN

8шт.

6

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

7

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

4шт.

8

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

9

337475

NUT,M12, Cl 10

3шт.

10

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

11

392530

NUT,M16, Cl 10

2шт.

12

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

13

47416619

GRILLE

Grille Plate,

1шт.

Выбрано товаров: 13
