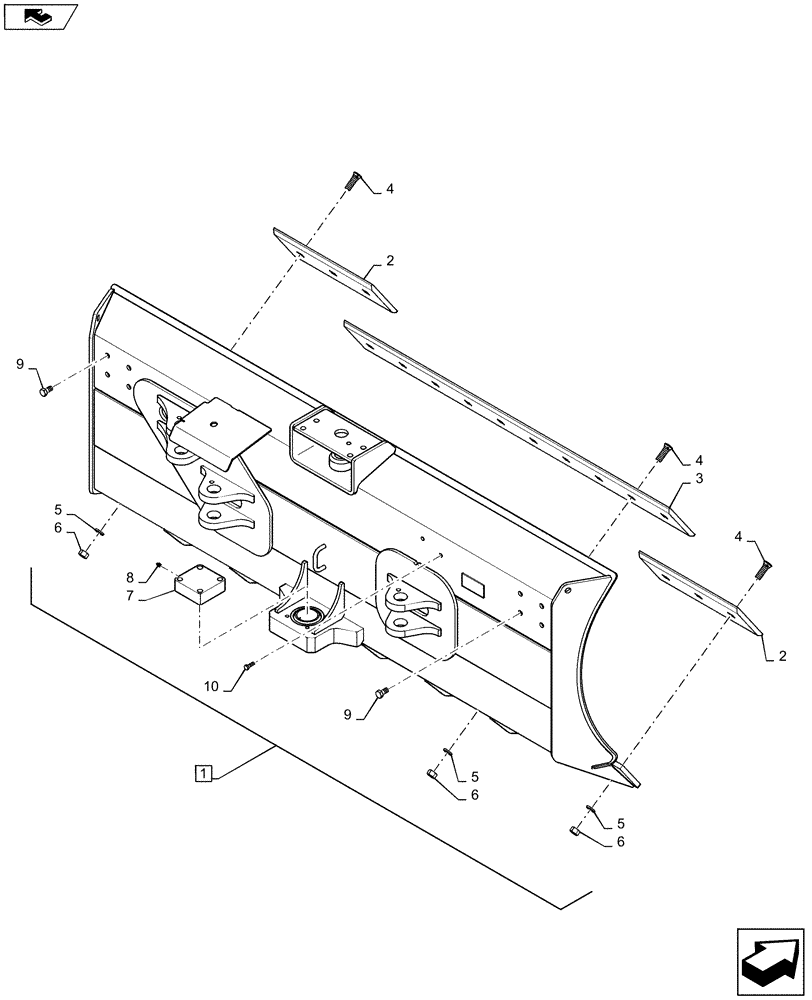

Запчасти Case 850M WT/LGP (86.110.AD[05]) - BLADE, 96" (86) - DOZER

1

84396654

DOZER BLADE

Complete Blade Assembly

1шт.

2

305440A1

EDGE

End Cutting Plate

2шт.

3

87641852

CUTTING EDGE

Center Cutting Plate 96in

1шт.

4

R56474

PLOW BOLT

3/4-10 X 2-1/2 PLOW

16шт.

5

87613309

WASHER

LOCK REG 3/4 0.759 CST PLN

16шт.

6

29-1012

NUT,3/4"-10, G8

16шт.

7

47413645

BLOCK

BEARING SUPPORT

1шт.

8

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

9

86508623

BOLT,Hex, M16 x 30mm, Cl 10.9

8шт.

10

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.
