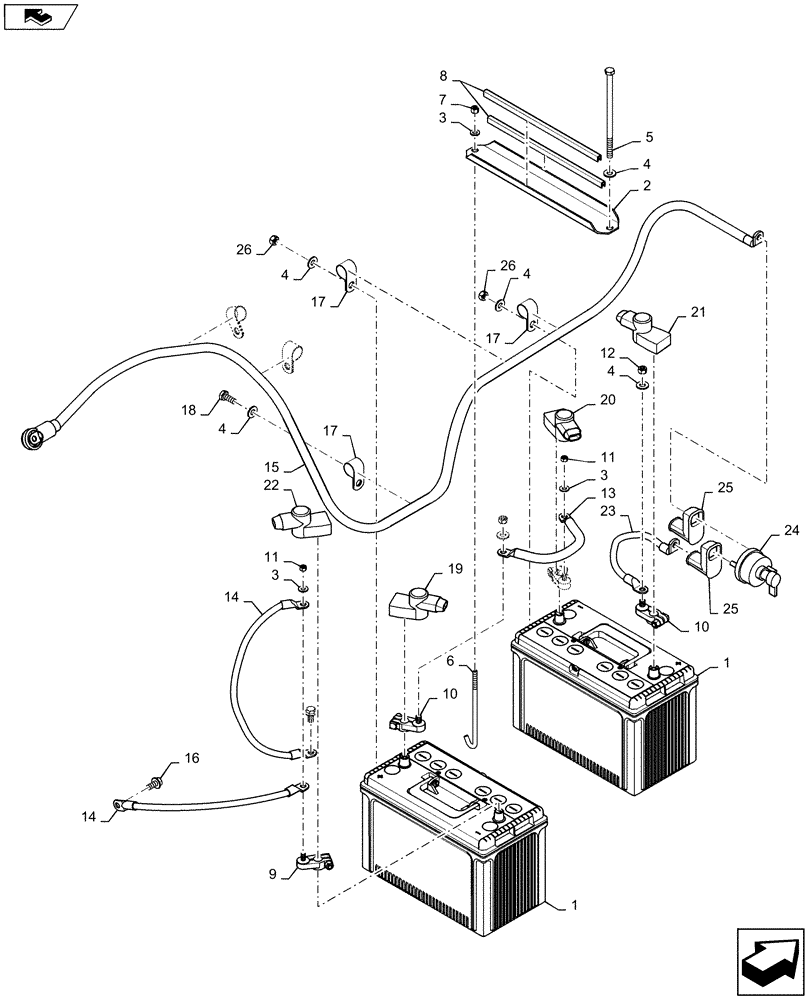

Запчасти Case 850M WT/LGP (55.302.AG [01]) - BATTERY, 24V, HOLDER, CABLES (55) - ELECTRICAL SYSTEMS

1

BMF31TW

WET BATTERY

12V 925 CCA

2шт.

2

84601220

CHANNEL

Battery Hold Down

1шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

3шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

5

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

1шт.

6

416297A1

ROD

Battery Hold Down 5/16 - 18UNC

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

D40442

MOLDING

Quick Edge

2шт.

9

87735578

TERMINAL CONNECTOR,5/16 - 18 Stud

Negative 5/16 - 18 Stud

2шт.

10

87735577

TERMINAL CONNECTOR,3/16 - 18 Stud

Positive 3/8 - 16 Stud

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

47420690

NEG BATTERY CABLE

Battery To Battery

1шт.

14

84480488

NEG BATTERY CABLE

Battery To Battery

2шт.

15

47447679

CABLE

Disconnect To Starter

1шт.

16

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

17

515-25254

CLAMP,1", Insul, 1/2" Bolt

5шт.

18

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

19

87480920

PROTECTIVE COVER

Battery Cable Terminal Red

1шт.

20

87481024

PROTECTIVE COVER

Battery Cable Terminal Black

1шт.

21

47524133

COVER

Battery Cable Terminal Red

1шт.

22

47515696

COVER

Battery Cable Terminal Black

1шт.

23

47464185

CABLE

Battery To Switch

1шт.

24

R52278

SWITCH

Master Disconnect

1шт.

25

47464114

BOOT

90 Deg

2шт.

26

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.
