Запчасти Case 850M WT/LGP (55.202.AD[01]) - COLD START (55) - ELECTRICAL SYSTEMS

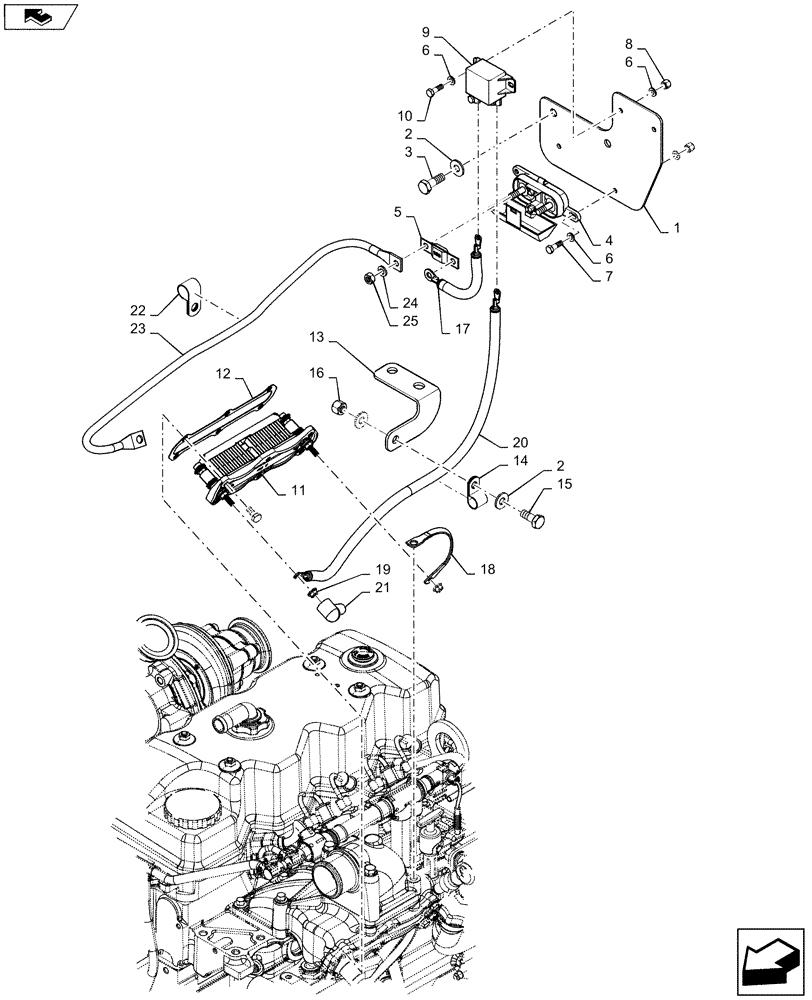

Схема запчастей Case 850M WT/LGP - (55.202.AD[01]) - COLD START (55) - ELECTRICAL SYSTEMS
4
16
home
11
23
13
6
18
2
6
1
14
19
20
21
25
5
15
10
2
24
8
3
9
17
6
12
22
7

Артикул

Название

Примечание

Количество

1

84606200

BRACKET

COLD START Flat Panel Bracket

1шт.

2

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

3

9515003

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9

2шт.

4

440038A1

JUNCTION BLOCK

BLOCK FUSE

1шт.

5

8501311

FUSE,150A, Megaval

1шт.

6

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

8шт.

7

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

8

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

4шт.

9

1546485C1

RELAY,24V

Power Chart Relay

1шт.

10

120100

BOLT,M6 x 20mm, Cl 8.8

2шт.

11

2855345

HEATER

Cover Grid Heater

1шт.

12

2854701

GASKET,0.8mm Thk

Air Intake

1шт.

13

47480477

BRACKET

Cold Start Elbow Bracket

1шт.

14

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

15

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

84606202

ELECTRIC CABLE

Fuse to Relay

1шт.

18

87413162

GROUND STRAP

Cold Start Ground

1шт.

19

86500688

NUT,Hex, M6 x 1.0, Cl 10.9

2шт.

20

84606206

ELECTRIC CABLE

Relay to Grid Heater

1шт.

21

47524104

CAP

Terminal Insulator

1шт.

22

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

1шт.

23

84606211

ELECTRIC CABLE

Starter to Fuse

1шт.

24

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

25

892-11008

LOCK WASHER,8mm ID

2шт.

Выбрано товаров: 25
