Запчасти Case 850M WT/LGP (55.050.AL[01]) - HEATER, AIR CONDITIONER, CAB (55) - ELECTRICAL SYSTEMS

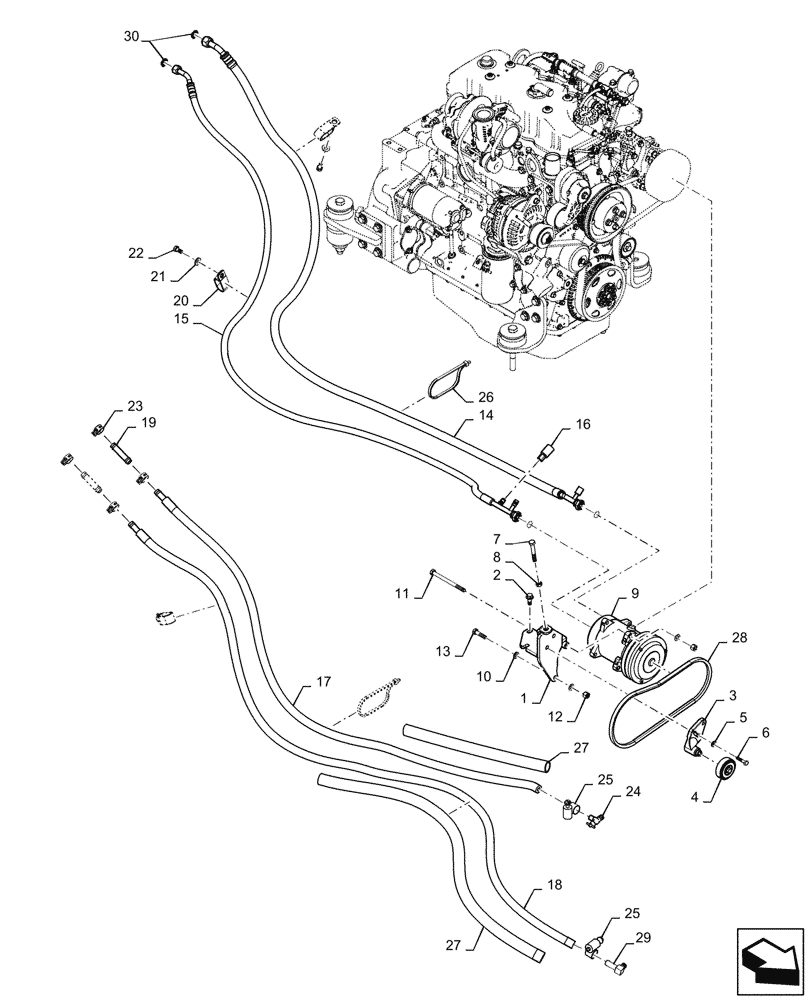

Схема запчастей Case 850M WT/LGP - (55.050.AL[01]) - HEATER, AIR CONDITIONER, CAB (55) - ELECTRICAL SYSTEMS
19
6
15
24
5
27
10
8
3
20
28
14
30
11
4
22
29
13
25
27
17
23
25
18
9
12
7
1
16
26
2
21

Артикул

Название

Примечание

Количество

1

47543713

MOUNT

AC COMPRESSOR

1шт.

2

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

3

84600646

BRACKET

IDLER SUPPORT

1шт.

4

87548073

IDLER

A/C IDLER

1шт.

5

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

2шт.

6

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

7

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

9

86983967

AIRCOND. COMPRESSOR,24V, W/ Clutch, W/ Pulley

1шт.

10

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

6шт.

11

827-10130

BOLT,Hex, M10 x 1.5 x 130mm, Cl 10.9

1шт.

12

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

13

627-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9, Full Thd

1шт.

14

47440311

HOSE

A/C, SUCTION

1шт.

15

84598814

A/C HOSE

A/C, DISCHARGE

1шт.

16

284273A2

SWITCH, A/C HIGH PRE

A/C Hose

1шт.

17

84428122

HEATER HOSE

HEATER SUPPLY

1шт.

18

84428123

HEATER HOSE

HEATER RETURN

1шт.

19

S104739

TUBE,0.625" OD x 3" L

2шт.

20

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

3шт.

21

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

3шт.

22

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

3шт.

23

1954736C1

HOSE CLAMP,#24

4шт.

24

A16764

VALVE

Heater Hose

1шт.

25

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

26

L18331

CABLE TIE,375.9mm L, Nylon, Black

NYLON TIE 15 INCH

2шт.

27

87442364

CONDUIT

Bulk 2150mm Cut To Length

1шт.

28

84600644

V-BELT

0.5 x 40.5

1шт.

29

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

1шт.

30

128485A1

O-RING,1.78mm Thk x 14mm ID, 70 Duro

4шт.

Выбрано товаров: 30
