(48.130.AW[01]) - CENTER ROCK GUARD

Запчасти Case 850M WT/LGP (48.130.AW[01]) - CENTER ROCK GUARD (48) - TRACKS & TRACK SUSPENSION

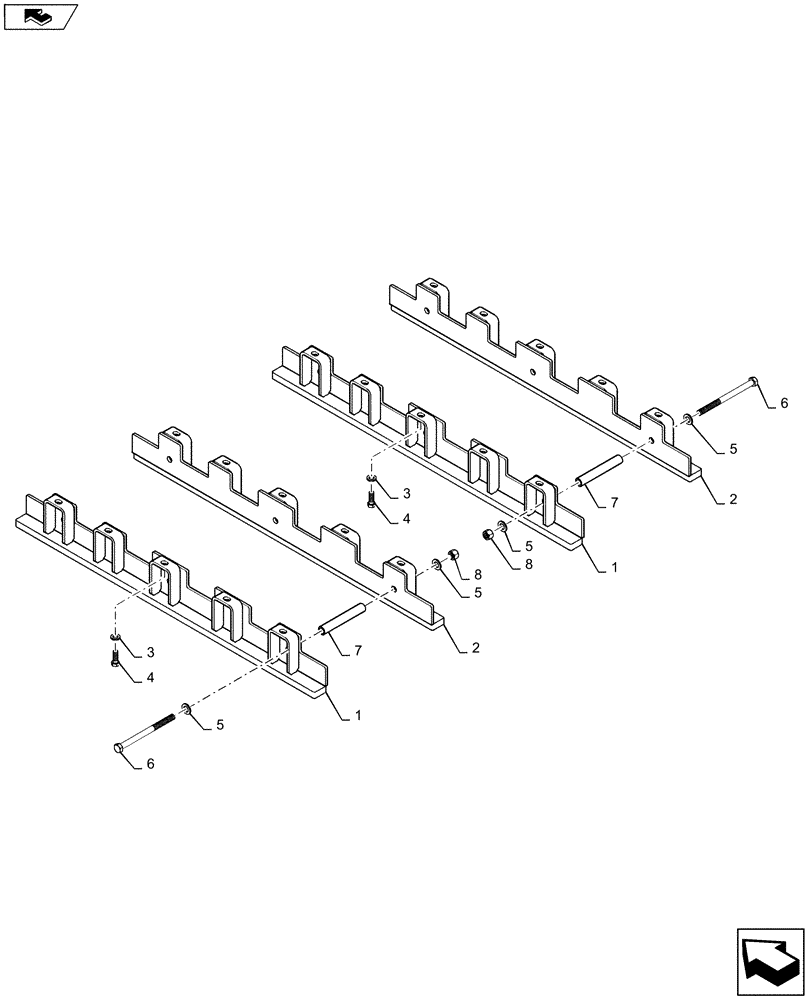

Схема запчастей Case 850M WT/LGP - (48.130.AW[01]) - CENTER ROCK GUARD (48) - TRACKS & TRACK SUSPENSION
6
home
7
8
8
5
4
5
3
2
7
5
1
4
1
3
2
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84413337

GUARD

LH Rock Guard

2шт.

2

84423582

GUARD

RH Rock Guard

2шт.

3

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16, 17.75X31.5X4.2 HTS BORON ZN

20шт.

4

88706

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

20шт.

5

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

12шт.

6

9842687

BOLT

3/4-10 X 10 GR5 ZND

6шт.

7

D35698

SPACER

7 5/8" Length, 1 3/16" OD, 3/16" Thickness

6шт.

8

231-41112

LOCK NUT,3/4"-10, GB

6шт.
