(48.100.AD[05]) - CHAIN LINK, 18 BAR CLOSED

Запчасти Case 850M WT/LGP (48.100.AD[05]) - CHAIN LINK, 18 BAR CLOSED (48) - TRACKS & TRACK SUSPENSION

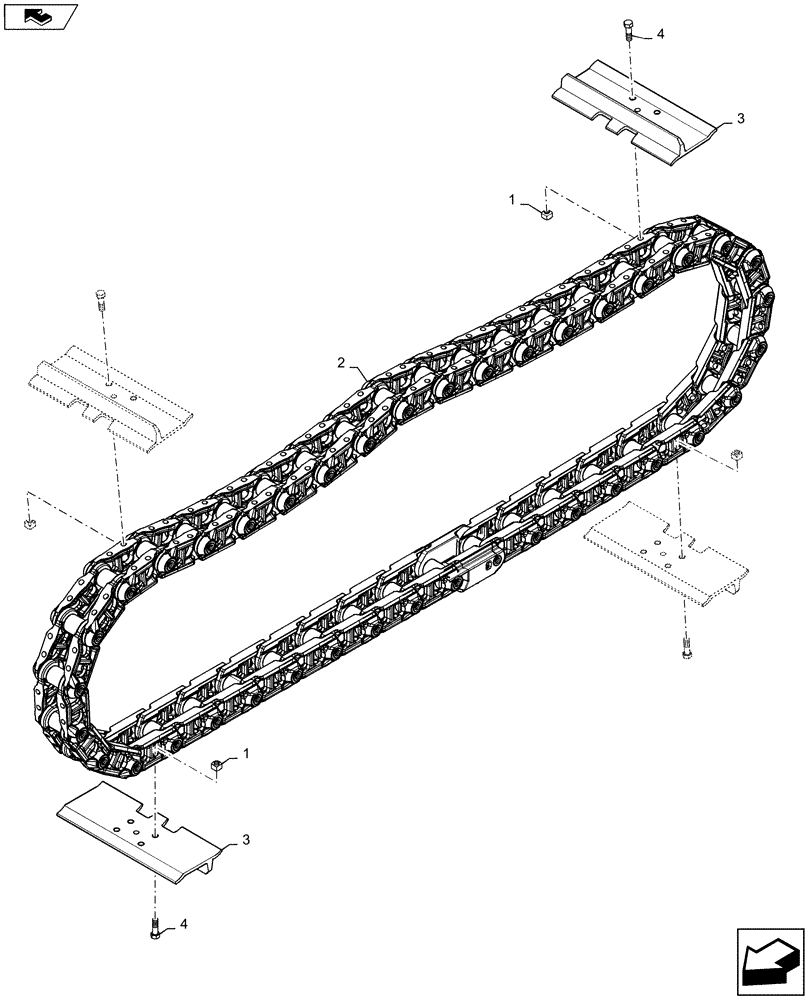

Схема запчастей Case 850M WT/LGP - (48.100.AD[05]) - CHAIN LINK, 18 BAR CLOSED (48) - TRACKS & TRACK SUSPENSION
home
1
4
3
1
2
3
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

R25688

SQUARE NUT

5/8-18 GR 8

156шт.

2

407018A1

TRACK CHAIN

CHAIN-A 40 LINK CLT

1шт.

3

295181A1

TRACK SHOE

One Bar Closed 18" Track Shoe

40шт.

4

295318A1

BOLT,Hex, 5/8" - 18 x 2 1/8"

5/8" Special Track Bolt

156шт.
