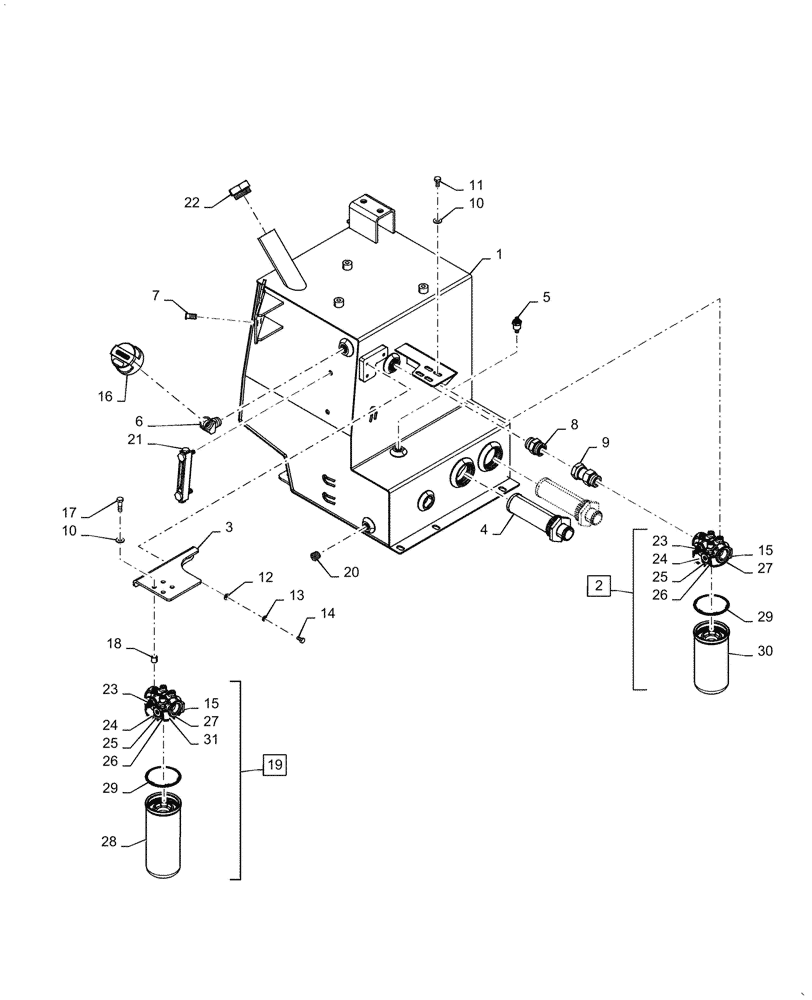

Запчасти Case 850M WT/LGP (35.300.AQ[04]) - HYDRAULIC FLUID RESERVOIR - ASN - NGC103102 (48) - TRACKS & TRACK SUSPENSION

1

47773190

RESERVOIR, HYDRAULIC

Assy, CE Gray

1шт.

2

47833560

FILTER ASSY

Implement, Incl15, 23 -27, 29, 30

1шт.

3

47841447

BRACKET

Hyd Filter Mount

1шт.

4

84329266

FILTER STRAINER,1.5"

2шт.

5

84300765

TEMPERATURE SENDER,1/2" - 14 NPTF

1шт.

6

217-1088

ELBOW,45 Degree, 3/4"-14 Female x 3/4"-14 Male

1шт.

7

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

4шт.

8

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

1шт.

9

87672177

HYD CONNECTOR

1шт.

10

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

8шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

12

87713131

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2mm Thk, Blk

3шт.

13

892-11008

LOCK WASHER,8mm ID

3шт.

14

16043221

BOLT,Hex, M8 x 16mm, Cl 8.8, Full Thd

3шт.

15

NSS

NOT SOLD SEPARAT

Filter Head, Incl in 2 and 19

2шт.

16

84339375

BREATHER

1шт.

17

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

18

47509074

SPACER,11mm ID x 15.8mm OD x 15mm L, STL, ZND

4шт.

19

47833558

HYDRAULIC OIL FILTER

Charge, Assembly, Incl 15, 23 - 29

1шт.

20

217-465

DRAIN PLUG,Hex Soc, 1/2" - 14, NPTF

1шт.

21

226456A1

LEVEL GAUGE

1шт.

22

218-5162

PLUG,Hex Hd, 1 7/8"-12 ORB

1шт.

23

8604802

PRESSURE SWITCH

Hyd Filter

2шт.

24

129-667

NUT,#10-32, LH

4шт.

25

493-21020

LOCK WASHER,Int Tooth, #10

2шт.

26

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

2шт.

27

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

2шт.

28

47833564

HYDRAULIC OIL FILTER,98.8mm OD x 239.8mm L, M87 x 2.5-6H, <4 Microns

1шт.

29

84274694

WEAR RING,3.45" ID x 3.94" OD x 0.05" Thk

1шт.

30

47833566

HYDRAULIC OIL FILTER

Implement

1шт.
