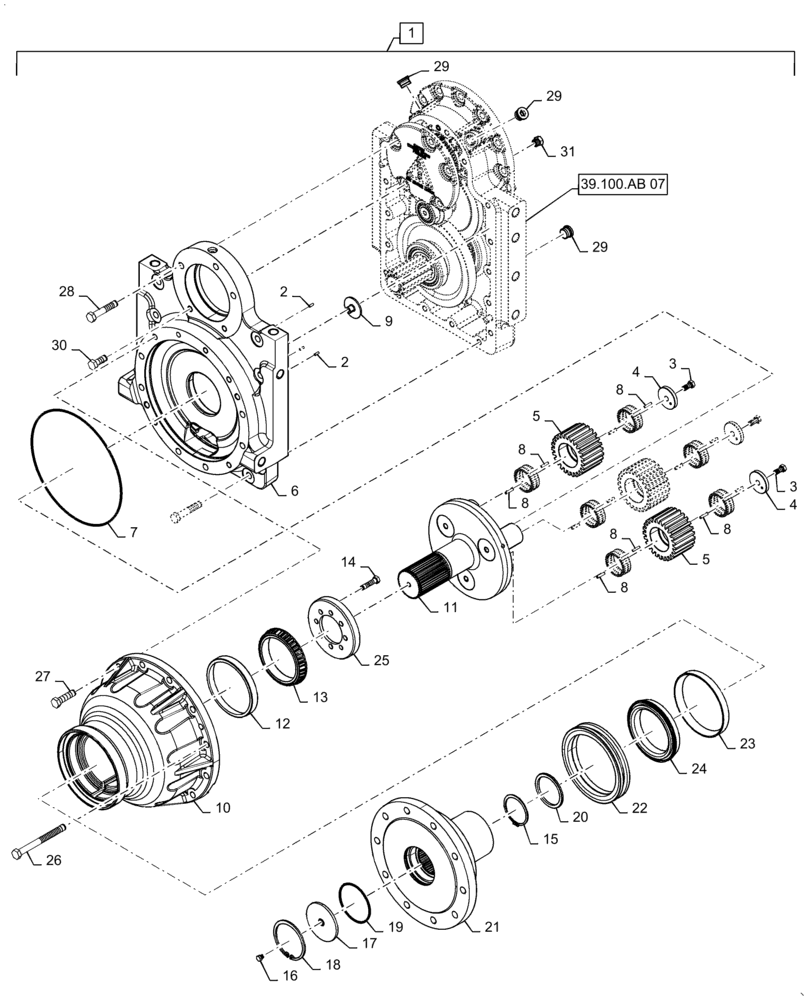

Запчасти Case 850M WT/LGP (39.100.AB [08]) - FINAL DRIVE ASSY, HUB, WIDE (39) - FRAMES AND BALLASTING

1

84490715

TRANSMISSION

Final Drive, Incl 2 - 31

1шт.

2

837-5010

DOWEL,M5 x 10

3шт.

3

606-12025

BOLT,Hex, M12 x 25mm, Cl 10.9

3шт.

4

385231A1

WASHER

3шт.

5

385221A2

PLANETARY GEAR

Final Drive, 25 Teeth

3шт.

6

87724626

HOUSING

1шт.

7

238-5279

O-RING,0.139" Thk x 12.984" ID, -279, Cl 5, 75 Duro

1шт.

8

385258A1

ROLLER BEARING,Needle, 5.99mm OD x 26.16mm L

Pin Type

198шт.

9

NSS

NOT SOLD SEPARAT

Axle Wear Insert, Incl W/ Ref. 1

1шт.

10

385274A1

HOUSING ASSY.

Ring Cover

1шт.

11

NSS

NOT SOLD SEPARAT

Planet Carrier, Incl W/ Ref. 1

1шт.

12

385271A1

BEARING CUP,169.86mm OD x 20.64mm W

1шт.

13

385270A1

BEARING ASSY,127mm ID x 26.2mm W

1шт.

14

87018613

BOLT,Hex, M12 x 50mm, Cl 10.9

8шт.

15

800-1182

SNAP RING,M82, Ext

1шт.

16

233426A1

PLUG,M10 x 1 ORB

1шт.

17

385214A2

END PLATE

1шт.

18

800-21110

SNAP RING,M110, Int

1шт.

19

238-5156

O-RING,0.103" Thk x 4.237" ID, -156, Cl 5, 75 Duro

1шт.

20

385249A2

WASHER

1шт.

21

385228A3

FLANGE

1шт.

22

385223A1

SEAL,179.05mm ID x 218.72mm OD x 41.83mm Thk

1шт.

23

385211A1

BEARING CUP,185mm OD x 21mm W

1шт.

24

385210A1

BEARING ASSY,130mm ID x 27mm W

1шт.

25

385205A1

RETAINING PLATE

1шт.

26

87028192

BOLT,Hex, M16 x 170mm, Cl 10.9

6шт.

27

87028191

BOLT,Hex, M16 x 60mm, Cl 10.9, Full Thd

6шт.

28

608-16085

BOLT,Hex, M16 x 85mm, Cl 10.9

11шт.

29

218-5212

PLUG,1-1/16" - 12 ORB

3шт.

30

608-16040

BOLT,Hex, M16 x 40mm, Cl 10.9

2шт.

31

218-5156

PLUG,Hex Hd, 3/4"-16 ORB

1шт.
