Запчасти Case 850M WT (90.100.010) - HOOD, PANELS, GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS

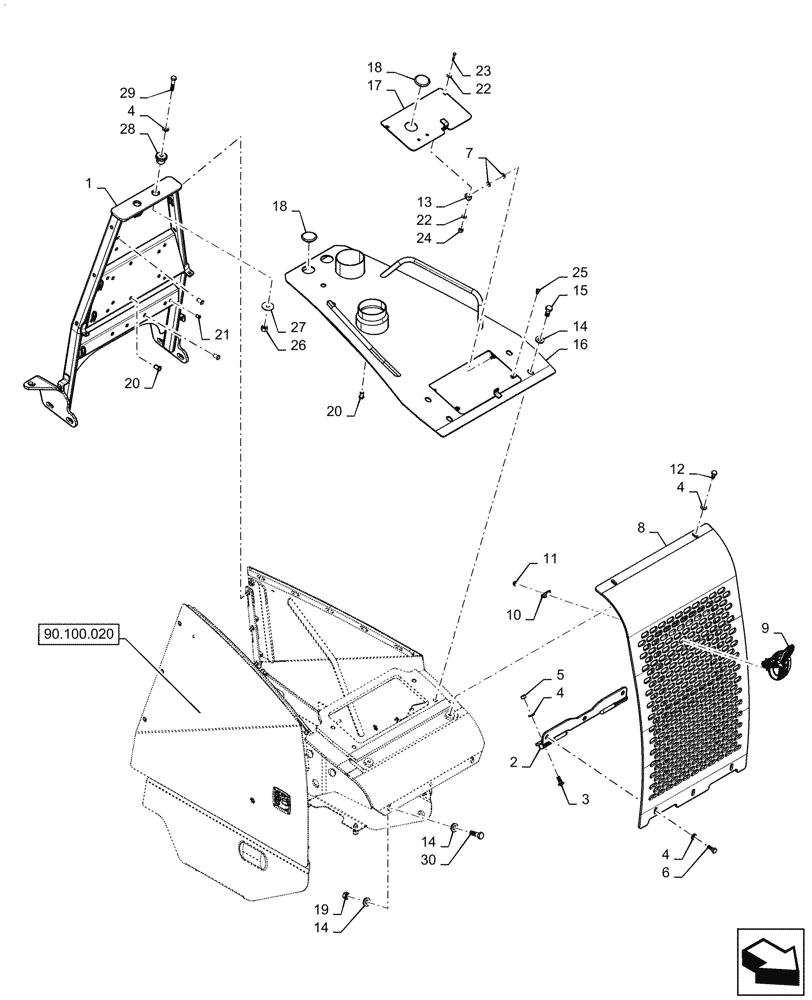

Схема запчастей Case 850M WT - (90.100.010) - HOOD, PANELS, GRILLE (90) - PLATFORM, CAB, BODYWORK AND DECALS
22
14
22
29
27
21
19
13
11
10
23
3
18
26
17
8
30
1
4
4
12
9
15
24
4
16
20
18
7
28
25
5
14
20
6
90.100.020
2
14
4

Артикул

Название

Примечание

Количество

1

47520457

PLATE

Plate and Cowl

1шт.

2

84401697

HINGE

Grill

1шт.

3

120044

CARRIAGE BOLT,M12 x 1.75 x 30mm, Cl 8.8

3шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

8шт.

5

337475

NUT,M12, Cl 10

3шт.

6

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

3шт.

7

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

8

47955204

GRILLE

Assembly, CE Gray

1шт.

9

47950726

EMBLEM,102.5 mm

Case Eagle

1шт.

10

84494357

MOUNTING PLATE

Case Decal

2шт.

11

86625060

PUSH-ON NUT,Self, Threading, 1/4"

2шт.

12

398792

SCREW,Hex, M12 x 25mm, Cl 10.9

2шт.

13

87440322

HINGE

2шт.

14

86639326

WASHER,17.3mm ID x 34.5mm OD x 5mm Thk

8шт.

15

86529976

BOLT,Hex, M16 x 35mm, Cl 10.9

4шт.

16

47748731

PLATE

1шт.

17

47750206

ACCESS COVER

Door

1шт.

18

14508287

PLUG

3шт.

19

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

20

85825181

INSERT

17шт.

21

87328598

INSERT,M6 x 1"

1шт.

22

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

4шт.

23

86977789

BOLT,Hex, M6 x 1.0 x 35mm, Cl 8.8

2шт.

24

393392

LOCK NUT,Prev Torque, M6 x 1, Cl 8

2шт.

25

A161780

BUMPER

2шт.

26

87497918

NUT

2шт.

27

R40262

WASHER,13.11mm ID x 47.75mm OD x 2.38mm Thk

2шт.

28

R29799

SHOCK ABSORBER

2шт.

29

43263

BOLT,Hex, M12 x 1.75 x 60mm, Cl 10.9

2шт.

30

412398

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

2шт.

31

392530

NUT,M16, Cl 10

2шт.

Выбрано товаров: 31
