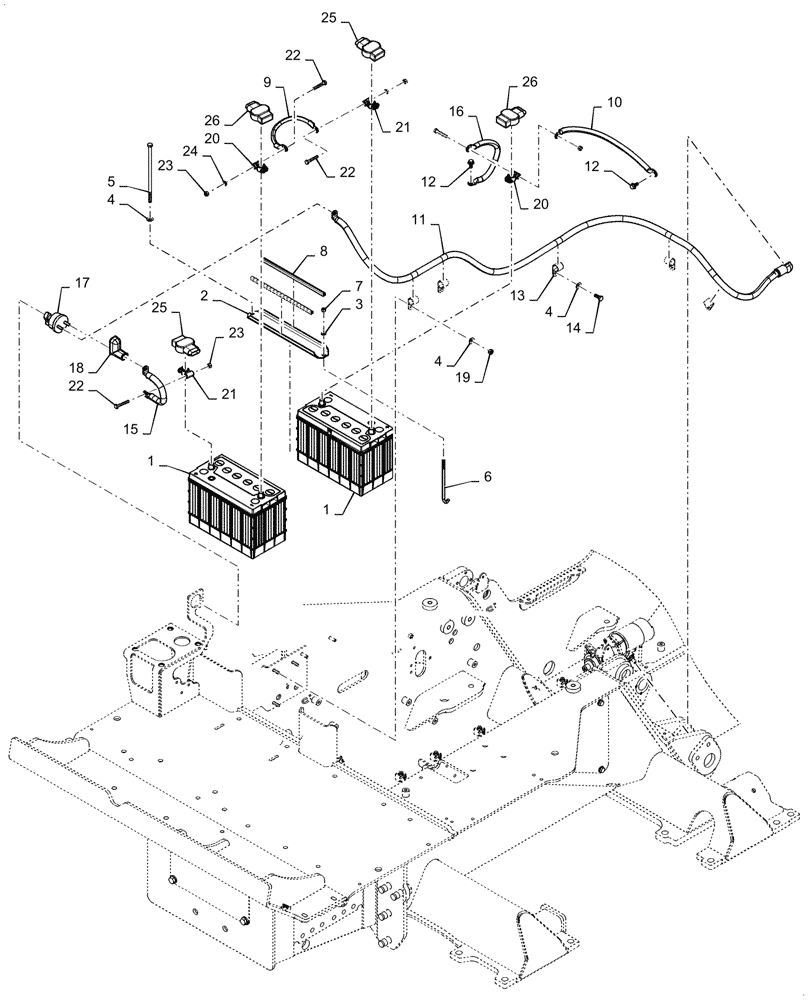

Запчасти Case 850M WT (55.302.010) - BATTERY - TRAY & CABLES (55) - ELECTRICAL SYSTEMS

1

BMF31TW

WET BATTERY

2шт.

2

84601220

CHANNEL

Battery Hold

1шт.

3

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

1шт.

4

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

4шт.

5

814-10245

BOLT,Hex, M10 x 1.5 x 245mm, Cl 8.8

1шт.

6

416297A1

ROD

Battery Hold Down

1шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

1шт.

8

D40442

MOLDING

Trim

2шт.

9

47693286

JUMPER

Negative

1шт.

10

47693288

CABLE

Battery to Ground

1шт.

11

47447679

CABLE

Disconnect Starter

1шт.

12

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

2шт.

13

515-25254

CLAMP,1", Insul, 1/2" Bolt

5шт.

14

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

1шт.

15

47693290

CABLE

Positive Batter to Switch

1шт.

16

47693898

CABLE

Battery to Ground

1шт.

17

R52278

SWITCH

Master Disconnect

1шт.

18

47464114

BOOT

90°

2шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

20

84360338

TERMINAL

Negative

2шт.

21

84360337

TERMINAL

Positive

2шт.

22

280425

BOLT,Hex, 3/8" - 16 x 2", Gr 8

4шт.

23

425-106

NUT,3/8"-16, Cl 5

4шт.

24

12648301

WASHER,10.2mm ID x 17mm OD x 1.5mm Thk

2шт.

25

47693869

COVER

Terminal, Red

2шт.

26

47693868

COVER

Terminal, Black

2шт.
