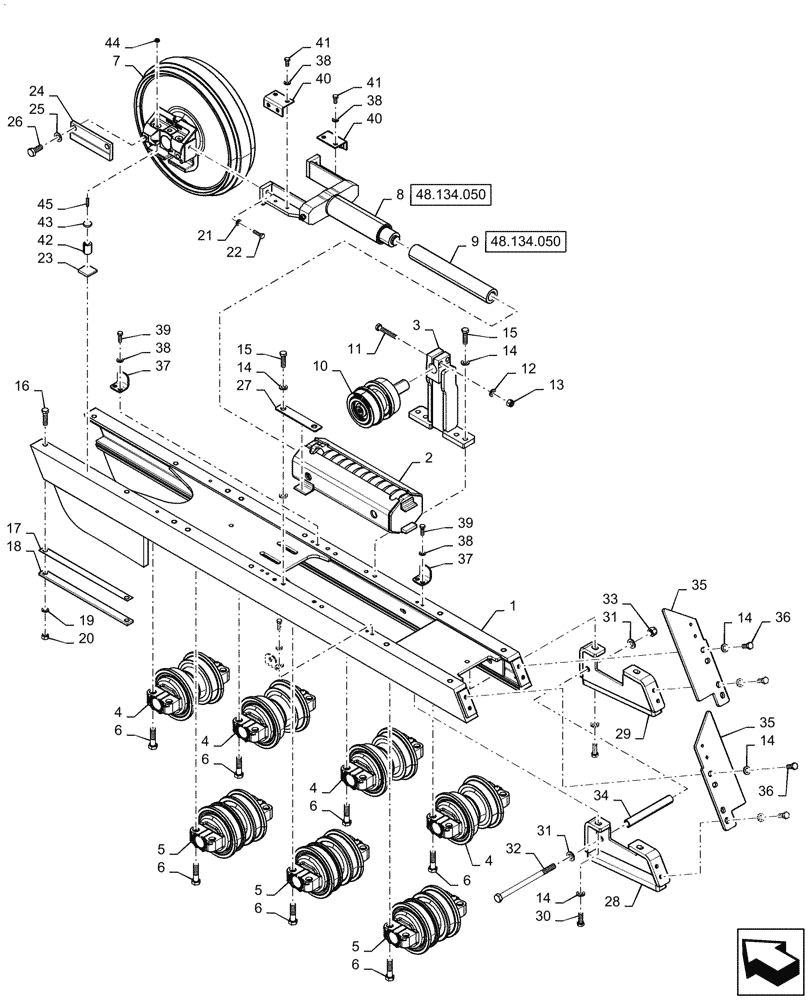

Запчасти Case 850M WT (48.134.030) - RH, TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

1

47778650

FRAME

Track

1шт.

2

47777757

HOUSING

Recoil Spring

1шт.

3

47962420

BRACKET

Carrier Roller

1шт.

4

47767519

TRACK ROLLER

Single Flange

4шт.

5

47950633

TRACK ROLLER

Double Flange

3шт.

6

87352548

BOLT,Hex, M20 x 75mm, Cl 10.9

28шт.

7

47767522

IDLER WHEEL

Roller

1шт.

8

47818664

YOKE

RH, Assembly

1шт.

9

47945574

TUBE

Track Adjuster

1шт.

10

47767520

ROLLER

Carrier

1шт.

11

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

2шт.

12

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

13

86512555

NUT,M16 x 2, Cl 10

2шт.

14

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

20шт.

15

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

6шт.

16

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

4шт.

17

87559519

SHIM

1шт.

18

87559522

WEAR PLATE

2шт.

19

87016618

LOCK WASHER,M16

4шт.

20

100020

NUT,M16 x 2.0, Cl 8

4шт.

21

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

22

87584292

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

23

47935408

Top

WEAR PLATE

4шт.

24

47920562

PLATE

2шт.

25

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

26

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

27

47932999

PLATE

Recoil Mount

1шт.

28

47778007

GUIDE

LH, Rear Track

1шт.

29

47778009

GUIDE

RH, Rear Track

1шт.

30

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

4шт.

31

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

32

47884330

BOLT,M20 x 300mm 8.8 ZND

1шт.

33

86536985

NUT,M20 x 2.5, Cl 10

1шт.

34

47779349

SPACER

1шт.

35

47778052

GUARD

Sprocket

2шт.

36

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

8шт.

37

47930241

BRACKET

Center Cover

4шт.

38

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

12шт.

39

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

8шт.

40

47926668

BRACKET

Idler Cover

2шт.

41

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

42

47705012

COMPRESSION SPRING

Idler Support

4шт.

43

R33245

SPRING SEAT

Boss

4шт.

44

412627

NUT

4шт.

45

47931385

SET SCREW,M10 x 40mm L, DOG, PLN, 45H

4шт.
