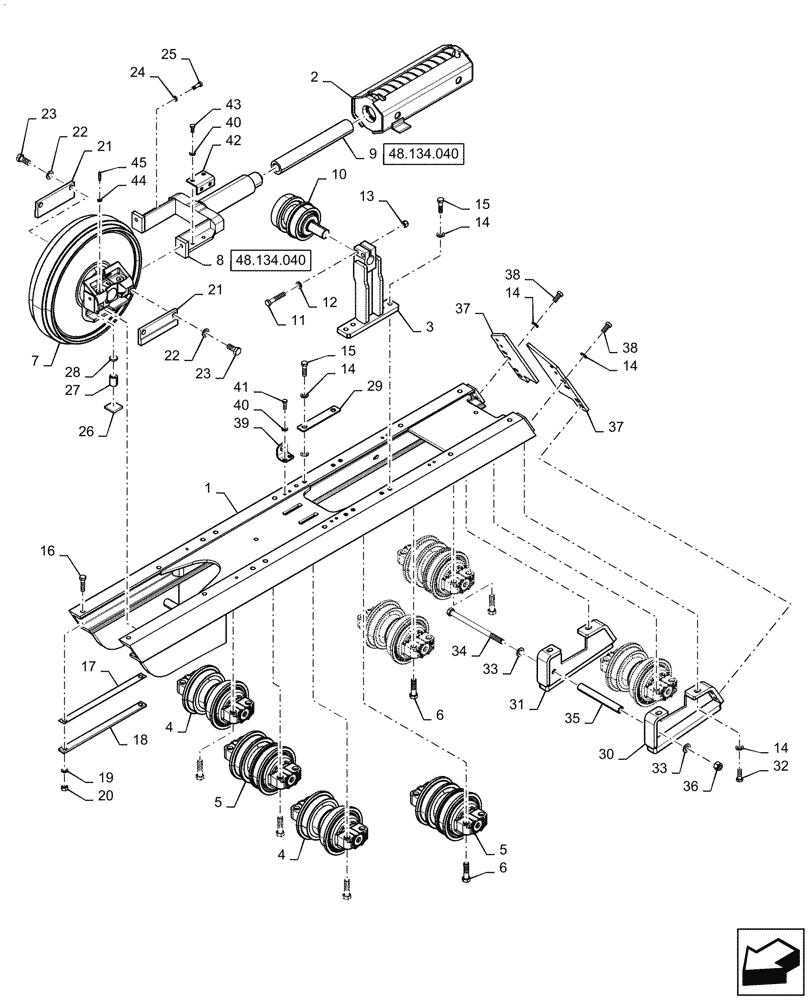

Запчасти Case 850M WT (48.134.020) - LH, TRACK ASSY (48) - TRACKS & TRACK SUSPENSION

1

47778650

FRAME

Track

1шт.

2

47777757

HOUSING

Recoil Spring

1шт.

3

47962420

BRACKET

Carrier Roller

1шт.

4

47767519

TRACK ROLLER

Single Flange

4шт.

5

47950633

TRACK ROLLER

Double Flange

3шт.

6

87352548

BOLT,Hex, M20 x 75mm, Cl 10.9

28шт.

7

47767522

IDLER WHEEL

Roller

1шт.

8

47777786

YOKE

LH, Assembly

1шт.

9

47945574

TUBE

Track Adjuster

1шт.

10

47767520

ROLLER

Carrier

1шт.

11

86521733

BOLT,Hex Flg, M16 x 90mm, Cl 10.9

2шт.

12

14496931

WASHER,17mm ID x 30mm OD x 3mm Thk

2шт.

13

86512555

NUT,M16 x 2, Cl 10

2шт.

14

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

20шт.

15

9843611

BOLT,Hex, M16 x 2.0 x 55mm, Cl 10.9

6шт.

16

120091

SCREW,Hex, M16 x 60mm, Cl 8.8

4шт.

17

87559519

SHIM

1шт.

18

87559522

WEAR PLATE

2шт.

19

87016618

LOCK WASHER,M16

4шт.

20

100020

NUT,M16 x 2.0, Cl 8

4шт.

21

47920562

PLATE

2шт.

22

14497131

WASHER,21mm ID x 37mm OD x 3mm Thk

4шт.

23

86508588

BOLT,Hex, M20 x 45mm, Cl 8.8

4шт.

24

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

25

87584292

BOLT,Hex, M12 x 40mm, Cl 10.9

2шт.

26

47935408

Top

WEAR PLATE

4шт.

27

47705012

COMPRESSION SPRING

Idler Support

4шт.

28

R33245

SPRING SEAT

Boss

4шт.

29

47932999

PLATE

Recoil Mount

1шт.

30

47778007

GUIDE

LH, Rear Track

1шт.

31

47778009

GUIDE

RH, Rear Track

1шт.

32

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

4шт.

33

87655047

SPECIAL WASHER,21.25mm ID x 38.10mm OD x 4.20mm Thk

2шт.

34

47884330

BOLT,M20 x 300mm 8.8 ZND

1шт.

35

47779349

SPACER

1шт.

36

86536985

NUT,M20 x 2.5, Cl 10

1шт.

37

47778052

GUARD

Sprocket

2шт.

38

86508583

BOLT,Hex, M16 x 35mm, Cl 8.8, Full Thd

8шт.

39

47930241

BRACKET

Center Cover

4шт.

40

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

12шт.

41

300389

BOLT,M12 x 1.75 x 35mm, Cl 8.8

8шт.

42

47926668

BRACKET

Idler Cover

2шт.

43

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

4шт.

44

412627

NUT

4шт.

45

47931385

SET SCREW,M10 x 40mm L, DOG, PLN, 45H

4шт.
