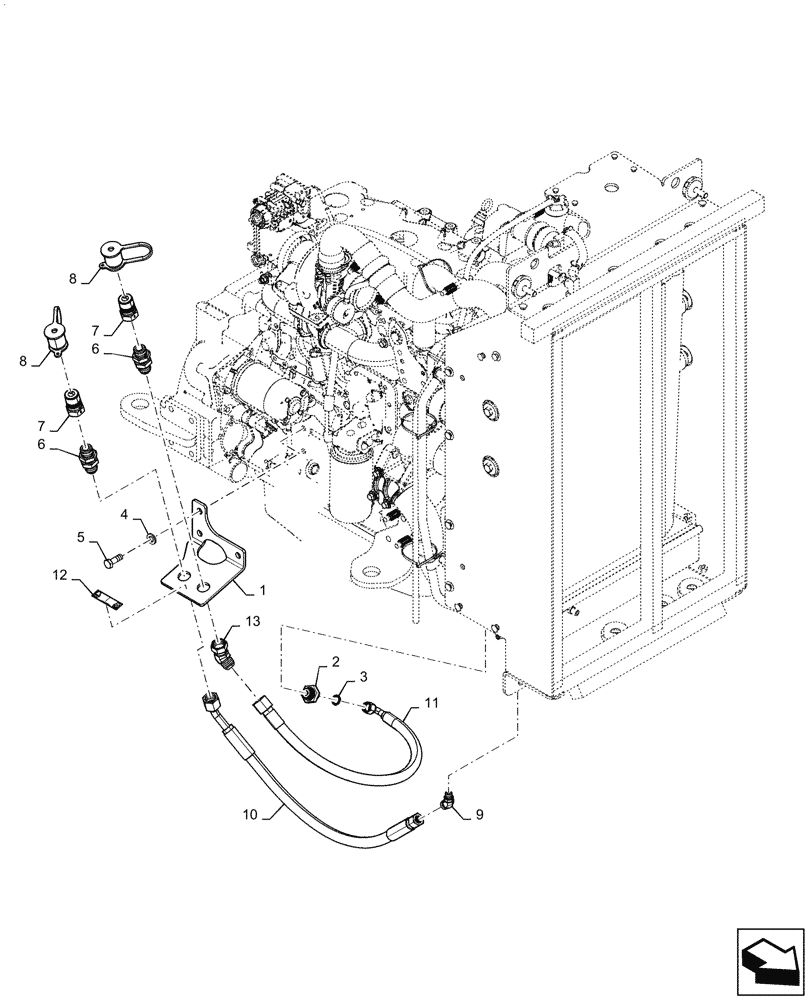

Запчасти Case 850M WT (10.400.060) - VAR - 784729 - DRAIN, ENGINE OIL (10) - ENGINE

1

47872969

BRACKET

Drain

1шт.

2

47750308

REDUCER,M22 x 1.5 M, ORB x 1/2 JIC

1шт.

3

87753668

O-RING,0.921" ID x 1.199" OD x 0.139"

1шт.

4

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

3шт.

5

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

3шт.

6

47431659

UNION,Male Blkhd, SAE - 12, 37FL - 3/4" NPTF

2шт.

7

84588109

HALF-COUPLING

2шт.

8

84538263

DUST CAP

1шт.

9

87301276

HYD CONNECTOR,45 Degree, 9/16" - 18 ORB x 3/4" - 16 JIC

2шт.

10

47596136

HOSE

1шт.

11

47671690

HYDRAULIC HOSE

1шт.

12

47670638

DECAL

Drain

1шт.

13

219605

ELBOW,45 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

1шт.
