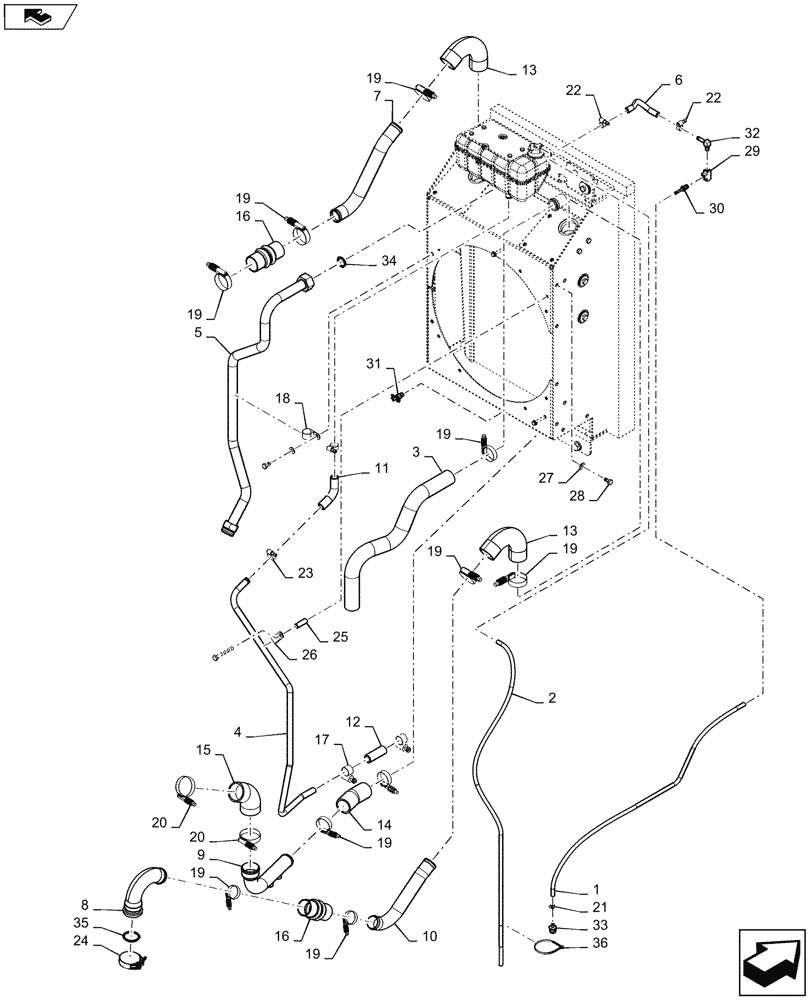

Запчасти Case 850M WT (10.400.020) - RADIATOR & COOLER, HOSE ASSY. (10) - ENGINE

1

84601369

HOSE

DA Bottle, 1035mm Length

1шт.

2

84601371

HOSE

DA Bottle, 1322mm Length

1шт.

3

84601375

TUBE

RADIATOR UPPER

1шт.

4

84601377

HOSE

DA BOTTLE, 801mm Bent Length

1шт.

5

84601380

TUBE

RADIATOR 925mm Bent Length

1шт.

6

84601395

HOSE

DA BOTTLE, 172.1mm Length

1шт.

7

47411174

TUBE

LH, RADIATOR, CAC, 358.7mm Bent Length

1шт.

8

84601440

TUBE

Welded Tube Assembly, Charge Aire Cooler

1шт.

9

84601399

RADIATOR HOSE

RADIATOR LOWER

1шт.

10

47411173

TUBE

RH, RADIATOR, CAC, 294.2mm Bent Length

1шт.

11

47402840

RADIATOR HOSE

DA BOTTLE, 91.3mm Bent Length

1шт.

12

84540654

RADIATOR HOSE,19mm ID x 76mm L

RADIATOR, 76mm Length, 19.05mm ID

1шт.

13

47359770

RADIATOR HOSE

RADIATOR, CHARGE AIR COOLER, 148.94mm Bent Length

2шт.

14

84601417

RADIATOR HOSE

RADIATOR, 46mm ID

1шт.

15

47359668

RADIATOR HOSE

RADIATOR, 57.9mm ID

1шт.

16

86994498

AIR HOSE,50.80 mm ID x 127.00 mm

2шт.

17

86625021

HOSE CLAMP,17.5mm - 31.7mm, Worm Gear

2шт.

18

87312719

COLLAR,31.7mm, Coat, 11.9mm Bolt Hole, P Type

,CLOSED 31.7MM INSUL 7/16 BOLT

2шт.

19

254026A1

HOSE CLAMP,44.45mm - 66.67mm

1 3/4" - 2 1/8" Dia

11шт.

20

L115548

CLAMP,57.15mm - 79.38mm

2 1/4" - 3 1/8" Dia

2шт.

21

574518

HOSE CLAMP,6.3mm - 15.7mm, SAE # 4

3шт.

22

86625041

HOSE CLAMP,11.2mm - 19.8mm

2шт.

23

87682404

HOSE CLAMP,0.69" - 1.25"

HOSE #12 0.69/1.25 TYPE M WORM

2шт.

24

84365315

CLAMP,68mm

68mm Nominal Span

1шт.

25

84603134

SPACER,0.41" ID x 0.62" OD x 1.77" L

.407 X .625 X 1.77 TUBE STL ZND

3шт.

26

86637999

CLAMP,19mm, Coat, 11.9mm Bolt Hole, P Type

3шт.

27

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

10шт.

28

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

6шт.

29

87034745

TEE

PIPE BRASS 1/4F-1/4F-1/4F

1шт.

30

217-154

FITTING,1/4" Hose Barb x 1/4" Male NPTF

1шт.

31

86625234

DRAINCOCK/TAP SUPPLY,1/4" NPTF

1/4 NPTF DRAIN

1шт.

32

217-132

90 ELBOW,90 Degree Elbow, 3/8" Hose Barb x 1/4" Male NPTF

1шт.

33

87635840

VALVE

CHECK, VENTING

1шт.

34

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

35

84364093

O-RING,0.103" Thk x 2.05" ID, -137, Cl 7, 75 Duro

52.07mm ID

1шт.

36

86566990

CABLE TIE,292mm OAL x 4.8mm W

5шт.
