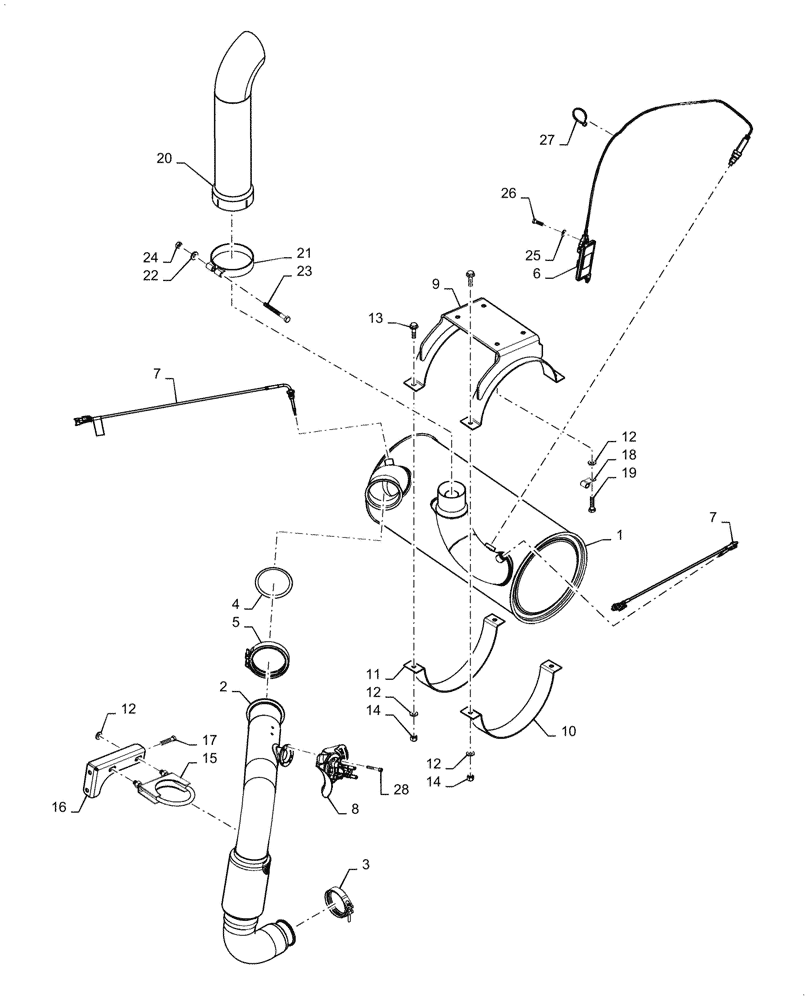

Запчасти Case 850M WT (10.254.010) - MUFFLER, SCR (10) - ENGINE

1

48034853

MUFFLER

SCR, 400 CPSI Substrate

1шт.

2

47387203

EXHAUST SYSTEM PIPE

850 NEF4

1шт.

3

84460193

CLAMP,81mm - 84mm

Retaining Strap

1шт.

4

84348631

SEAL

89mm ID, 104mm OD

1шт.

5

84417992

CLAMP

V-BAND MUFFLER

1шт.

6

84414466

SENSOR

NOX sensor

1шт.

7

87482353

SENSOR

Temperature Sensor

2шт.

8

84247021

MODULE,Dosing Injector

DENOX2 Urea Dosing - 6KG/H

1шт.

9

47395684

CRADLE

SCR Mount

1шт.

10

84602737

STRAP

SCR Cradle

1шт.

11

47395689

STRAP

SCR Cradle with Tab

1шт.

12

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

16шт.

13

120068

BOLT,Hex, M10 x 40mm, Cl 8.8

4шт.

14

832-10410

NUT,M10 x 1.5, Cl 8

4шт.

15

BN2400371

CLAMP

Muffler

1шт.

16

48091812

SCR Inlet Pipe

BRACKET

1шт.

17

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

2шт.

18

47404517

CLIP,11mm, Coat, 10.3mm Bolt Hole, J Type

J 11.0mm Insul M10 Bolt

1шт.

19

43248

BOLT,Hex, M10 x 1.5 x 40mm, Cl 10.9

4шт.

20

47502943

PIPE

Exhaust System

1шт.

21

R27699

CLAMP,114.3mm

Exhaust Stack

1шт.

22

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

23

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

24

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

25

87664048

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6.6X 12 X 1.6mm CST DAC

2шт.

26

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

27

L11541

CABLE TIE,203.2mm L, Nylon

1шт.

28

84233542

HEX SOC SCREW

3шт.

29

892-11010

LOCK WASHER,M10

1шт.
