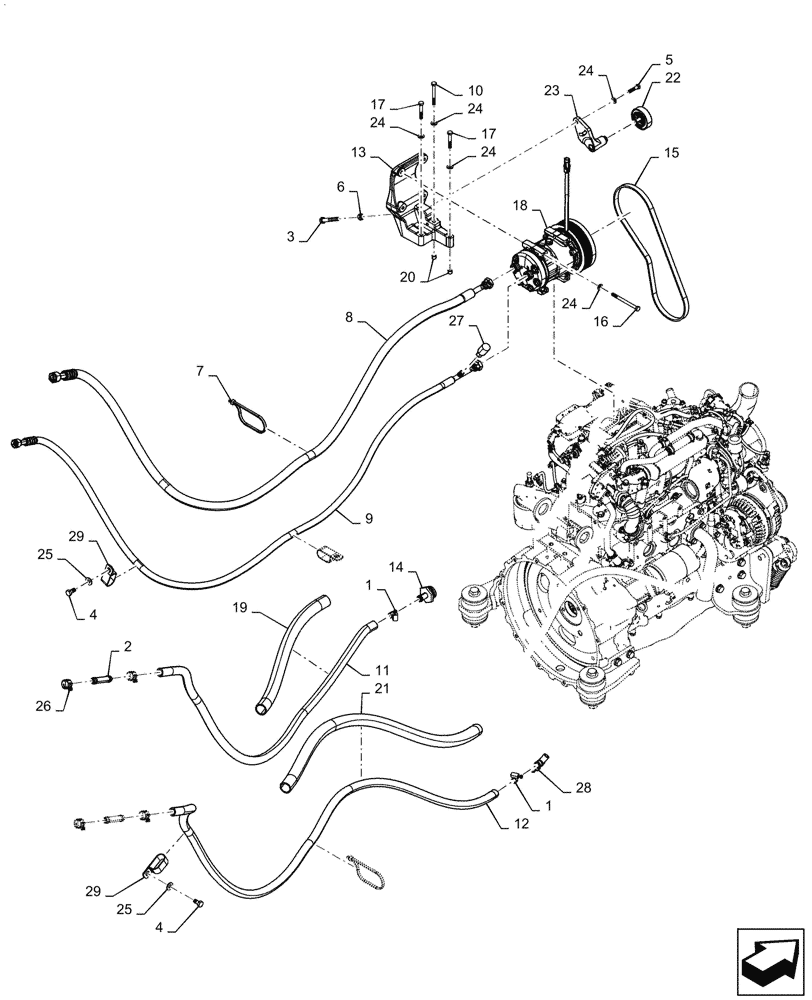

Запчасти Case 850M LT (50.200.030) - VAR 784391 - A/C COMPRESSOR, HEATER, HOSE (50) - CAB CLIMATE CONTROL

1

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

2шт.

2

S104739

TUBE,0.625" OD x 3" L

2шт.

3

614-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8, Full Thd

1шт.

4

627-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

2шт.

5

814-8035

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

2шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

L18331

CABLE TIE,375.9mm L, Nylon, Black

2шт.

8

47948672

A/C HOSE

Suction

1шт.

9

47948674

A/C HOSE

Discharge

1шт.

10

84042348

BOLT,Hex, M8 x 1.25 x 70mm, Cl 10.9

1шт.

11

84428122

HEATER HOSE

Supply

1шт.

12

84428123

HEATER HOSE

Return

1шт.

13

84492809

BRACKET

Compressor

1шт.

14

84498259

STEM

Hose to Engine Block, Heat Return

1шт.

15

84514633

BELT

Compressor, Drive

1шт.

16

86512165

BOLT,Hex, M8 x 100mm, Cl 10.9

4шт.

17

86625003

BOLT,Hex, M8 x 50mm, Cl 10.9

2шт.

18

86983968

COMPRESSOR

A/C, 24 Volt

1шт.

19

87350913

CONDUIT

Heater Supply

1шт.

20

87429952

SLEEVE,8.5mm ID x 11.132mm OD x 9mm L

2шт.

21

87442364

CONDUIT

Heat

1шт.

Cut Down to 970mm L

1шт.

22

87548073

IDLER

Pully

1шт.

23

87551299

SUPPORT

Idler

1шт.

24

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

9шт.

25

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

26

1954736C1

HOSE CLAMP,#24

4шт.

27

284272A2

PRESSURE SWITCH

High, A/C

1шт.

28

A16764

VALVE

Shut-Off

1шт.

29

47048664

CLAMP,25.40mm - 13.49mm Bolt, CTD

2шт.
