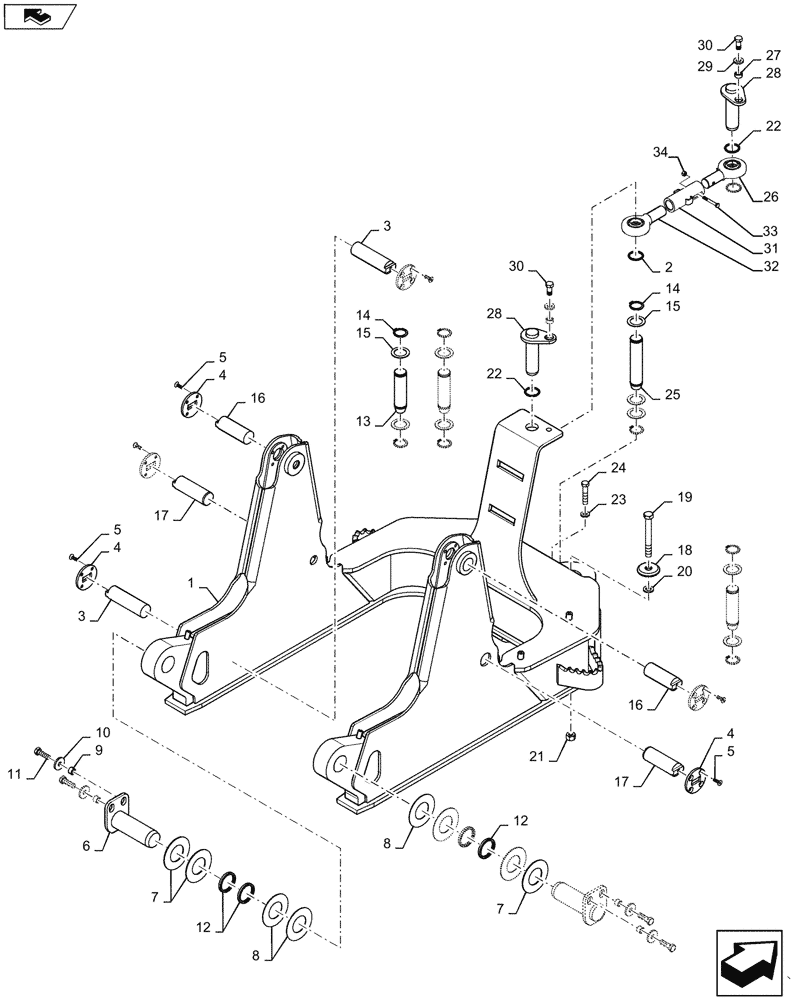

Запчасти Case 850M LT (86.100.010) - FRAME, C AND PITCH LINK (39) - FRAMES AND BALLASTING

1

84556115

FRAME

FRAME ASSY, C, INSIDE

1шт.

2

84541743

SHIM,45.5mm ID x 53.5mm OD x 3mm Thk

PITCH LINK 3MM

2шт.

3

84553030

PIN

132.5mm Length

2шт.

4

84553033

PLATE

PIVOT PIN

6шт.

5

906037R1

HEX SOC SCREW,FLAT, M10 x 30mm, Cl 10.9

24шт.

6

84556107

PIN,63.58mm OD x 189mm L

TRUNNION

2шт.

7

84471024

SHIM

65mm ID, 120mm OD, 3mm Thickness

4шт.

8

84471025

SHIM

65mm ID, 120mm OD, 2mm Thickness

4шт.

9

419041A1

SPACER

16.13mm ID, 22.23mm OD, 15.3mm Thickness

4шт.

10

419223A1

WASHER

17.5mm ID, 47.65mm OD, 5mm Thickness

4шт.

11

627-16050

BOLT,Hex, M16 x 2 x 50mm, Cl 10.9, Full Thd

4шт.

12

D95146

WIPER SEAL,63.4mm ID x 76.22mm OD x 7.92mm Thk

2.50in Nominal Rod Size

4шт.

13

84471035

PIN

44.45 DIA ANGLE AND TILT CYLINDER

3шт.

14

103-16175

SNAP RING,#175, Ext

8шт.

15

87613204

WASHER,1.78" ID x 2.5" OD x 0.12" Thk

1.781X2.5X0.1195 CST ZND

9шт.

16

84553031

PIN,44.45mm OD x 108.5mm L

2шт.

17

84553032

PIN,44.4mm OD x 114.5mm L

2шт.

18

119105A1

WASHER

Hardened Bevelled Washer

1шт.

19

827-20170

BOLT,Hex, M20 x 2.5 x 170mm, Cl 10.9

1шт.

20

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

1шт.

21

829-1420

NUT,M20, Cl 10

1шт.

22

84385270

SHIM,45.5mm ID x 53.5mm OD x 1mm Thk

PITCH LINK, 1 MM

6шт.

23

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16, 17.75X31.5X4.2 HTS BORON ZN

4шт.

24

86577946

BOLT,Hex, M16 x 80mm x 10.9

4шт.

25

84471033

PIN

50.8 DIA TILT CYLINDER ROD

1шт.

26

84550963

EYE,1-3/4" - 12

Rod End LH THD

1шт.

27

84380519

SPACER,16.5mm ID x 25.5mm OD x 12.75mm L

High Tolerance, MOUNTING

2шт.

28

84380507

PIN,44.4mm OD x 175mm L

CYLINDER MOUNT

2шт.

29

896-15016

WASHER,17.5mm ID x 34mm OD x 5mm Thk

2шт.

30

84246776

PREV TORQUE BOLT,Hex, M16 x 35mm, Cl 10.9

PREV TORQUE, M16X35 CHEM 10.9 ZND

2шт.

31

84552926

TUBE

Pitch Link, PLTD Tube

1шт.

32

87311755

BEARING ASSY,44.45 mm ID x 63.88 mm OD x 38.8239 mm

Rod End RH THD

1шт.

33

43252

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

1шт.

34

412141

NUT,M10 x 1.5, Cl 8

1шт.

35

84404331

Incl in 1

BUSHING

4шт.
