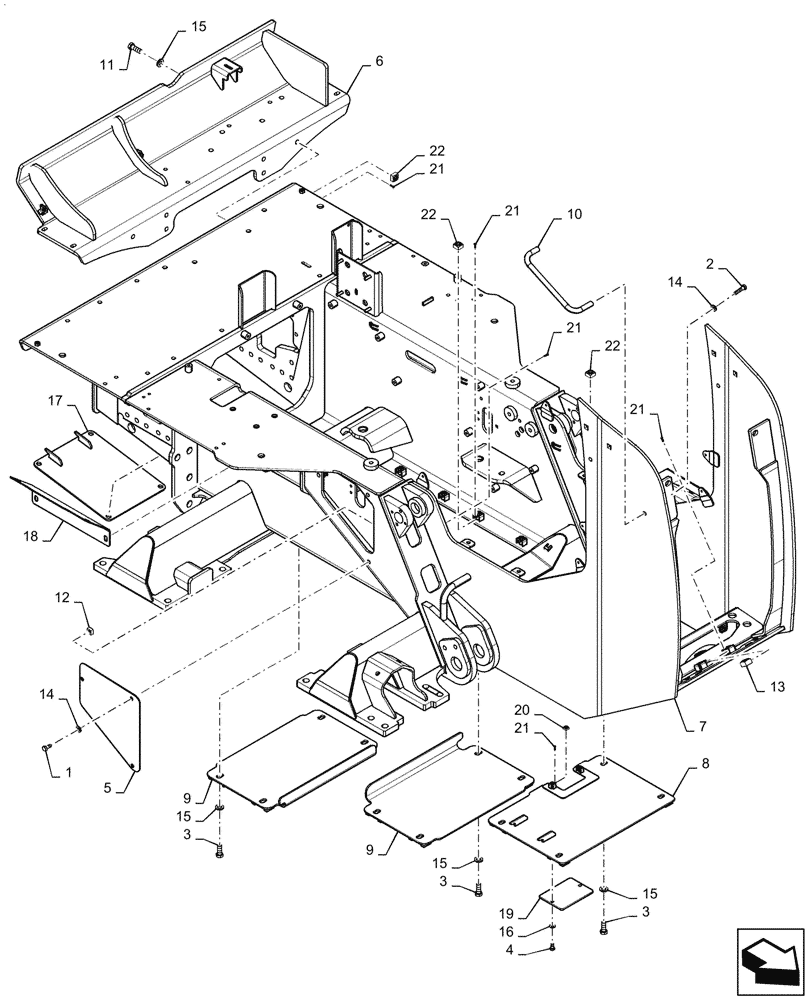

Запчасти Case 850M LT (39.100.010) - MAIN FRAME LT (39) - FRAMES AND BALLASTING

1

300388

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8

10шт.

2

337476

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9

4шт.

3

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

16шт.

4

9861444

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9

2шт.

5

47358325

COVER

Fender

2шт.

6

47795068

SUPPORT

Rear Center Box

1шт.

7

47916239

FRAME

Main, Power Tan, Long Track

1шт.

8

84554804

PAN

Front Belly

1шт.

9

84554818

PAN

Center Belly

2шт.

10

84559389

HANDLE

Front, Grab

2шт.

11

86508624

BOLT,Hex, M16 x 45mm, Cl 10.9

6шт.

12

87447306

SQUARE NUT,M12 x 21mm x 21mm x 11mm H ZND Cl 5A

23шт.

13

87535798

SQUARE NUT

4шт.

14

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

14шт.

15

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

22шт.

16

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

2шт.

17

87706438

PAN

Rear Belly

1шт.

18

87706450

COVER

Hose Access

1шт.

19

87710382

COVER

Oil Access

1шт.

20

309096A1

SQUARE NUT,Square, M10 x 1.5, LH Thd, Cl 5A

2шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

53шт.

22

405737A2

SQUARE NUT,M16 x 26mm x 26mm x 16mm H ZND CL 5A

24шт.
