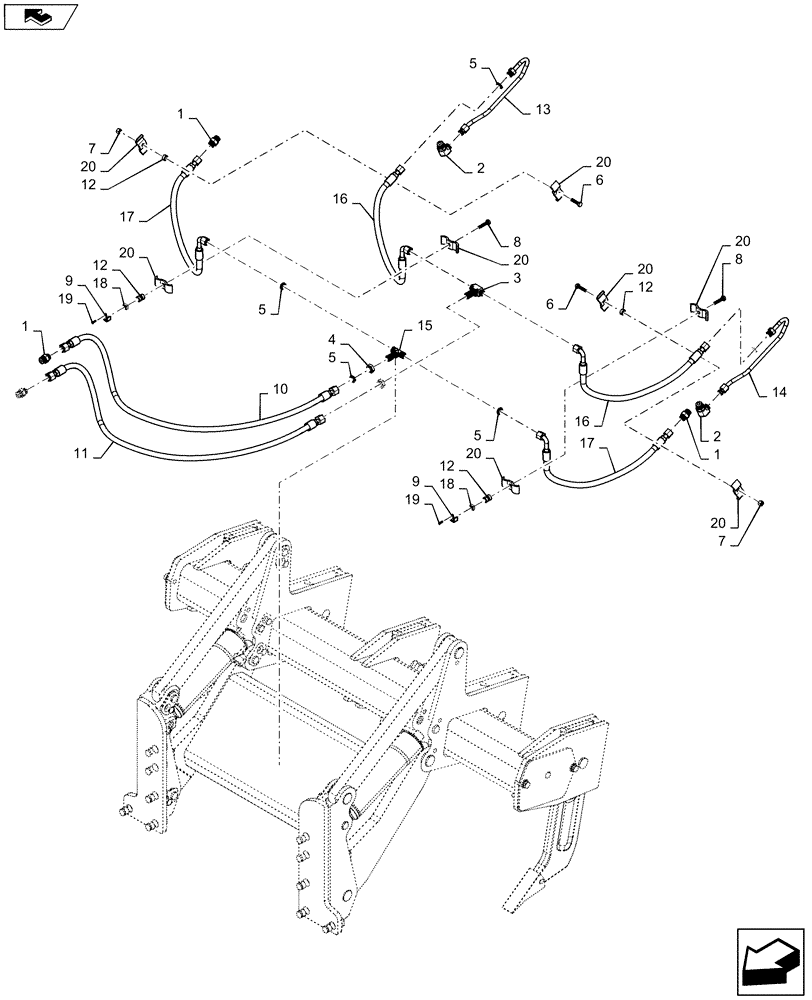

Запчасти Case 850M LT (35.742.AA[01]) - RIPPER, HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

4шт.

2

201-326

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

2шт.

3

201-452

TEE,13/16"-16, Blkhd Br

1шт.

4

201-903

TUBE NUT,Blkhd, 13/16"-16

2шт.

5

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

2шт.

6

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

7

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

8

43249

BOLT,Hex, M10 x 1.5 x 50mm, Cl 10.9

2шт.

9

84156088

ACCESS COVER

1шт.

10

84470556

HOSE ASSY.

Ripper B Port Hose Assembly

1шт.

11

84470557

HOSE ASSY.

Ripper A Port Hose Assembly

1шт.

12

87311572

SPACER,12.7mm x 19mm x 9mm

SeatBelt Mounting Spacer 12.7 I.D.X 19

6шт.

13

87405448

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

1шт.

14

87405449

HYD TUBE,12.7 mm OD x 257.7, 125.3 mm L

1шт.

15

87408137

TEE

Restrictor Tee

1шт.

16

87715343

FLEXIBLE HOSE

Ripper Cylinder Hydraulic Hose Assembly

2шт.

17

87715344

FLEXIBLE HOSE

Ripper Cylinder Hydraulic Hose Assembly

2шт.

18

122958A1

SQUARE NUT

M10 X 1.5 SQ ZND

2шт.

19

336371A1

PIN,4.88mm OD x 14.23mm L

Nut Retainer Pin

2шт.

20

434130A1

HOSE CLAMP

Hose Clamp

8шт.
