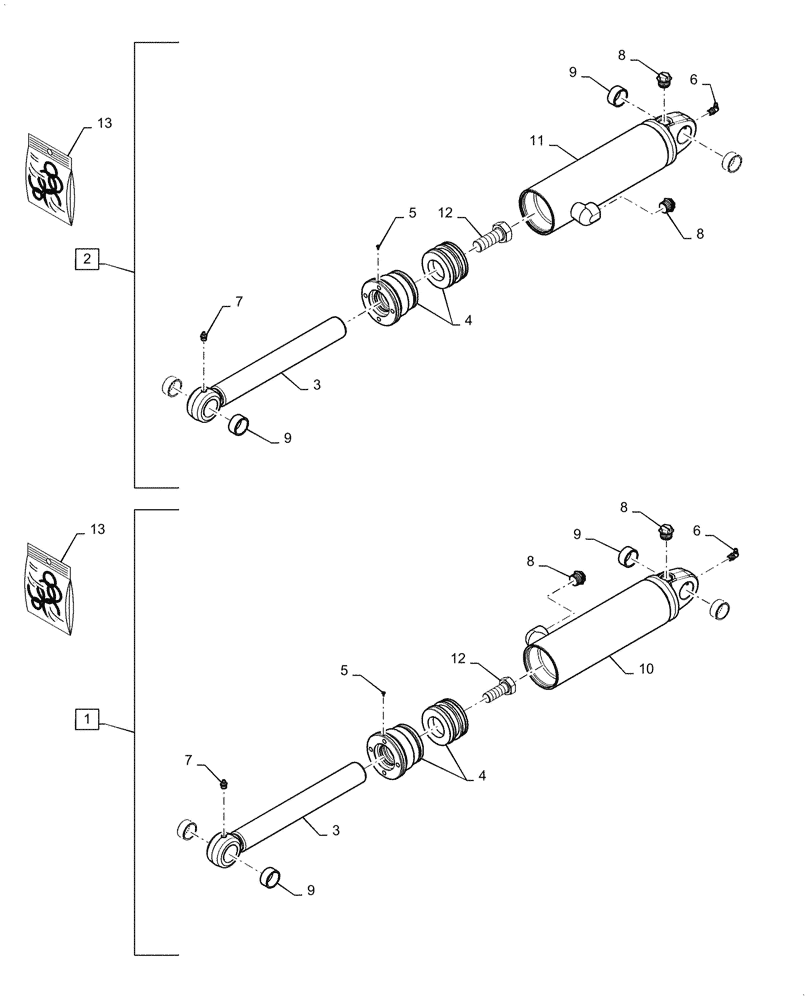

Запчасти Case 850M LT (35.742.AA[01]) - RIPPER, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case 850M LT - (35.742.AA[01]) - RIPPER, HYDRAULIC CYLINDER (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/5417089.png)
13
4
3
5
8
5
13
12
12
6
1
9
8
6
9
9
4
7
7
10
9
2
3
8
8
11
№
Артикул
Название
Примечание
Количество
1
84567541
HYDRAULIC CYLINDER
RH, Ripper, Incl
1шт.
2
84567543
HYDRAULIC CYLINDER
LH, Ripper, Incl
1шт.
3
NSS
NOT SOLD SEPARAT
Rod, Incl in refs 1 and 2
2шт.
4
NSS
NOT SOLD SEPARAT
Pistion and Gland Assembly, Incl in Refs 1 and 2
2шт.
5
G109395
SELF-TAP SCREW,Hex, #8 - 32 x 3/8"
2шт.
6
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
2шт.
7
219-1
LUBE NIPPLE,1/8" - 27 NPTF
2шт.
8
353-780
PLUG,Sltd Hd, 7/8"-14, w/O-Ring
4шт.
9
30634
BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L
4шт.
10
NSS
NOT SOLD SEPARAT
Cylinder Body Incl in 1
1шт.
11
NSS
NOT SOLD SEPARAT
Cylinder Body, Incl in 2
1шт.
12
NSS
NOT SOLD SEPARAT
Internal Bolt, Incl in 1 and 2
2шт.
13
84567645
SEAL KIT
Service Pack, Used on Ref 1 and 2
2шт.
Выбрано товаров: 13
