Запчасти Case 850M LT (35.741.AD[03]) - CYLINDER TILT (35) - HYDRAULIC SYSTEMS

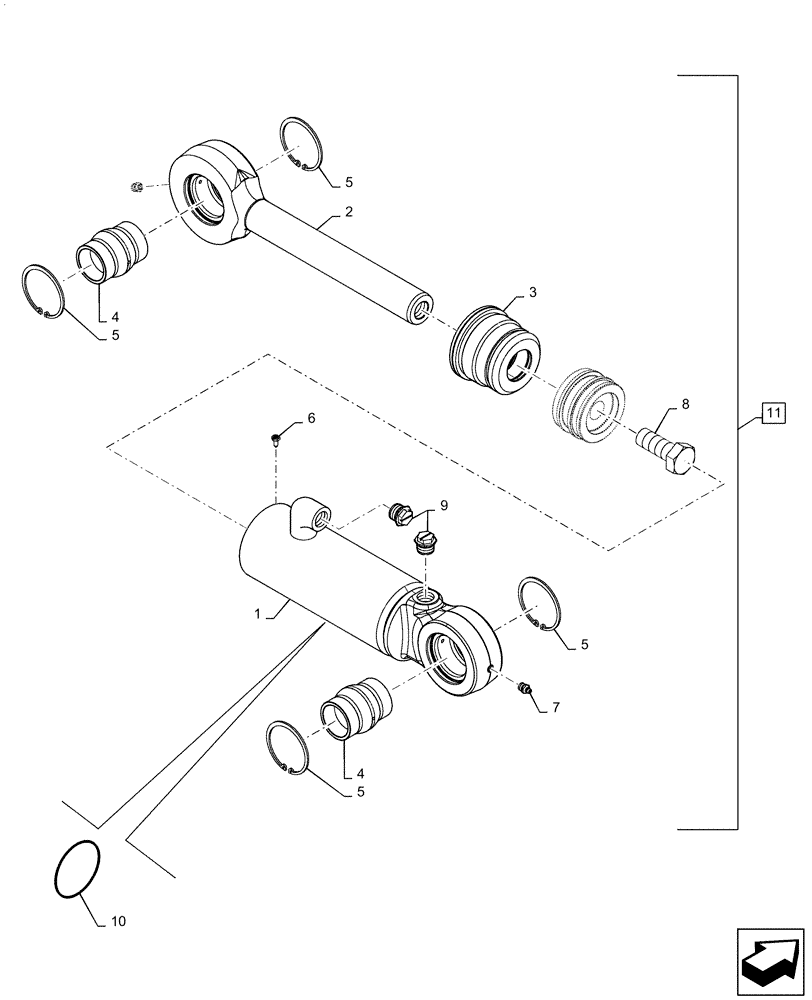

Схема запчастей Case 850M LT - (35.741.AD[03]) - CYLINDER TILT (35) - HYDRAULIC SYSTEMS
7
10
5
2
5
4
5
11
9
8
3
5
6
4
1

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

Cylinder Tube, For Service Order Ref 11

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Rod, For Service Order Ref 11

1шт.

3

NSS

NOT SOLD SEPARAT

For Service Order Ref 11

1шт.

4

407538A1

SPHERICAL BEARING,44.45mm ID x 71.44mm OD x 77.4mm W

Eye Bushing

2шт.

5

103-21281

SNAP RING,66.92mm ID x 2.36mm W, Int

4шт.

6

G109395

SELF-TAP SCREW,Hex, #8 - 32 x 3/8"

Cylinder Tube To Package Assembly Hardware

1шт.

7

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

8

86982437

BOLT,Sems, Hex, 1" - 14 x 2.50"

1шт.

9

353-780

PLUG,Sltd Hd, 7/8"-14, w/O-Ring

2шт.

10

84484640

SEAL KIT

Seals Are Included In Ref 11 Assembly

1шт.

11

84476112

HYDRAULIC CYLINDER

Blade Tilt, Incl 1 - 9

1шт.

11

84476112R

REMAN-HYD CYLINDER

Blade Tilt

1шт.

11

84476112C

CORE-HYD CYLINDER

Return Number

1шт.

Выбрано товаров: 13
