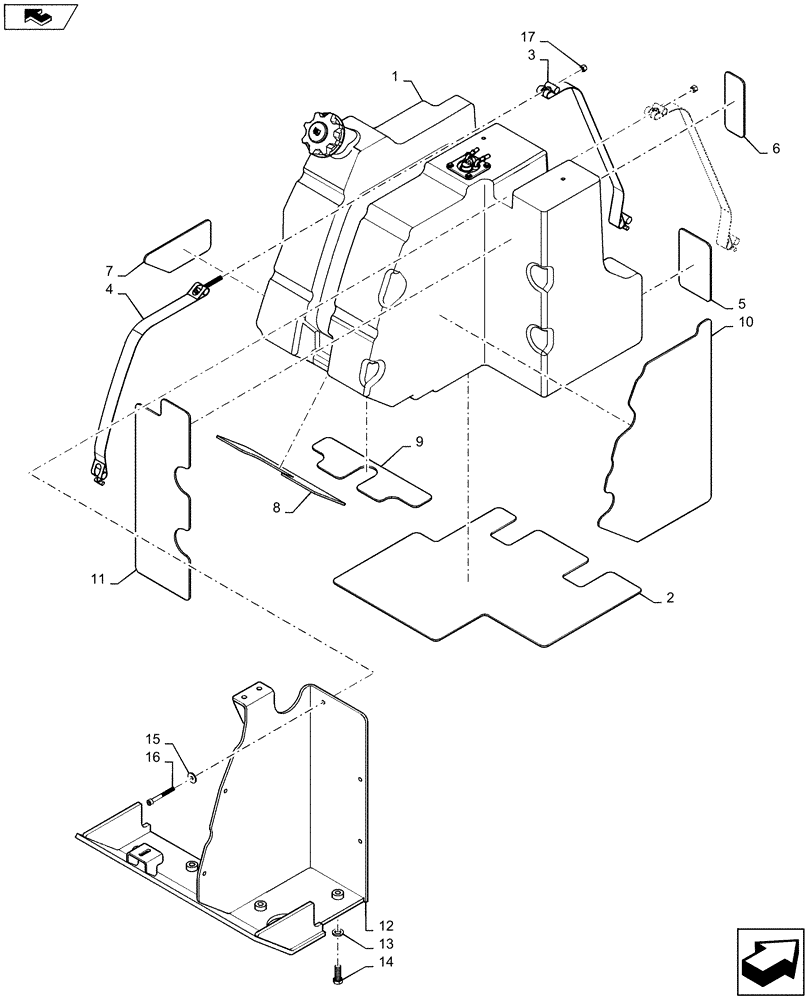

Запчасти Case 850M LT (35.300.AQ[01]) - FUEL TANK (35) - HYDRAULIC SYSTEMS

1

47490141

FUEL TANK

Fuel Reservoir

1шт.

2

47364310

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

3

47364309

STRAP

FUEL TANK LARGE

2шт.

4

47364307

STRAP

REAR FUEL TANK

1шт.

5

84539466

MAT

Rubber, Fuel Tank

1шт.

6

47364881

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

7

84539468

MAT

Rubber, Fuel Tank

1шт.

8

47364305

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

9

47364300

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

10

47364299

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

11

47364298

RUBBER STRIP

BUFFER, Fuel Tank

1шт.

12

47364295

SUPPORT

M16, 17.75X31.5X4.2 HTS BORON ZN

1шт.

13

87655044

SPECIAL WASHER,17.75mm ID x 31.50mm OD x 4.20mm, HTS Boron, ZNM

M16, 17.75X31.5X4.2 HTS BORON ZN

5шт.

14

614-16045

BOLT,Hex, M16 x 2 x 45mm, Cl 8.8, Full Thd

5шт.

15

87687101

WASHER,10.65mm ID x 31mm OD x 3.3mm Thk

M10, 10.65X31.0X3.0 HTS BORON ZN

1шт.

16

14421231

HEX SOC SCREW,M10 x 1.5 x 90mm, Cl 10.9

1шт.

17

832-10410

NUT,M10 x 1.5, Cl 8

2шт.
