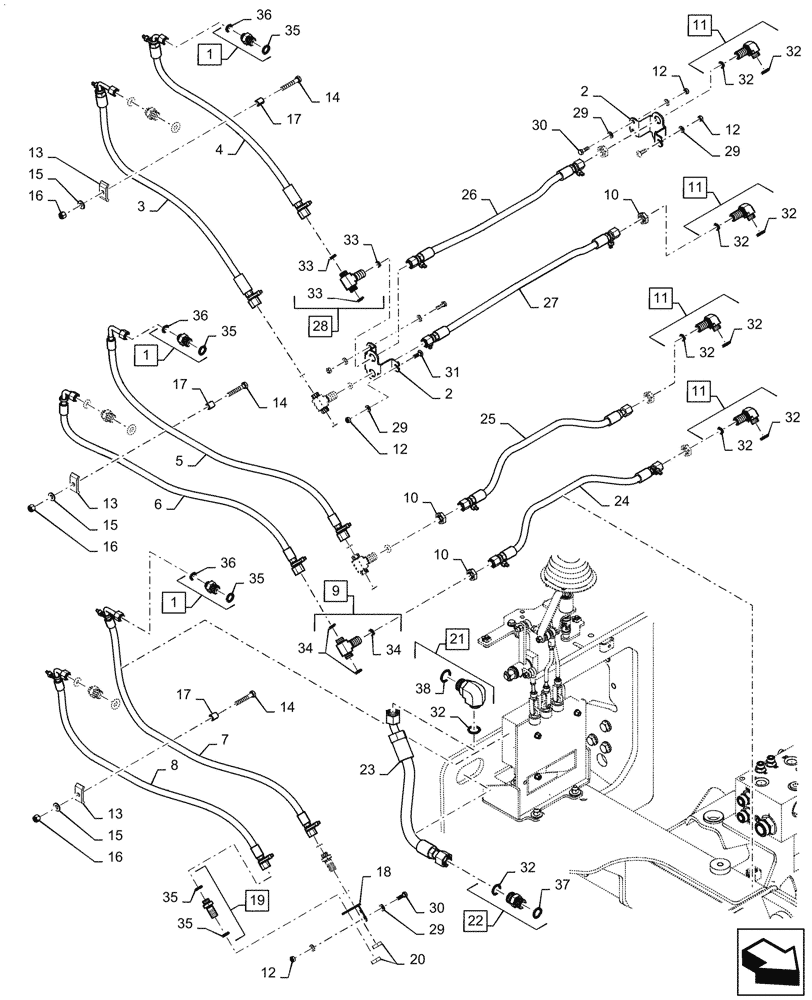

Запчасти Case 850M LT (35.102.AE[01]) - HYDRAULIC EQUIPMENT REEL, CONTROLS AND INTERNAL PLUMBING (35) - HYDRAULIC SYSTEMS

1

201-139

HYD CONNECTOR,11/16"-16 ORFS x 7/8"-14 ORB

Incl Ref 35, 36

6шт.

2

47357683

BULKHEAD

LIFT HYD

2шт.

3

47505345

HOSE

LIFT PORT B

1шт.

4

47505346

HOSE

LIFT PORT A

1шт.

5

47378415

HYDRAULIC HOSE

1146mm Length, ANGLE, EQUIP VALVE TO TE

1шт.

6

47505852

HOSE

1065mm Length, ANGLE PORT A

1шт.

7

47505853

HOSE

1140mm Length, TILT PORT B

1шт.

8

47505854

HOSE

1060mm Length, TILT PORT A

1шт.

9

47739434

UNION TEE

Incl (3) Ref 34

2шт.

10

86639083

BHD LOCK NUT,13/16"-16 ORFS, Bulkhead

6шт.

11

47739431

HYD CONNECTOR,13/16 - 16 ORFS

Incl (2) Ref 32

4шт.

12

43362

NUT,M8 x 1.25, Cl 10

SECURING

2шт.

13

D138055

CLAMP

Tube Clamp

5шт.

14

325829

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

5шт.

15

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

5шт.

16

412141

NUT,M10 x 1.5, Cl 8

5шт.

17

87311354

SPACER,10.7mm ID x 17.1mm OD x 14.2mm L

10.3mm ID, 15.84mm OD, 18.25mm Length

5шт.

18

47358493

BULKHEAD

TILT HYD

1шт.

19

201-120

HYD CONNECTOR,11/16"-16, Blkhd, ORFS

Incl (2) Ref 35

2шт.

20

201-909

BHD LOCK NUT,Blkhd, 11/16"-16

2шт.

21

201-355

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Incl Ref 32, 38

1шт.

22

47743826

HYD CONNECTOR

Incl 32, 37

1шт.

23

84577908

HYDRAULIC HOSE

478mm Length, VALVE RETURN

1шт.

24

47378428

HYDRAULIC HOSE

675mm Length, CROSSOVER, ANGLE A PORT

1шт.

25

47378429

HYDRAULIC HOSE

658mm Length, CROSSOVER, ANGLE B PORT

1шт.

26

47378459

HYDRAULIC HOSE

791mm Length, CROSSOVER, LIFT A PORT

1шт.

27

47378449

HYDRAULIC HOSE

767mm Length, CROSSOVER, LIFT B PORT

1шт.

28

86639082

TEE,13/16"-16 ORFS, Blkhd Br

Incl (3) Ref 33

2шт.

29

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

14шт.

30

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

6шт.

31

120038

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

2шт.

32

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

10шт.

33

9992898

O-RING

6шт.

34

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

6шт.

35

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

10шт.

36

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

37

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

38

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
