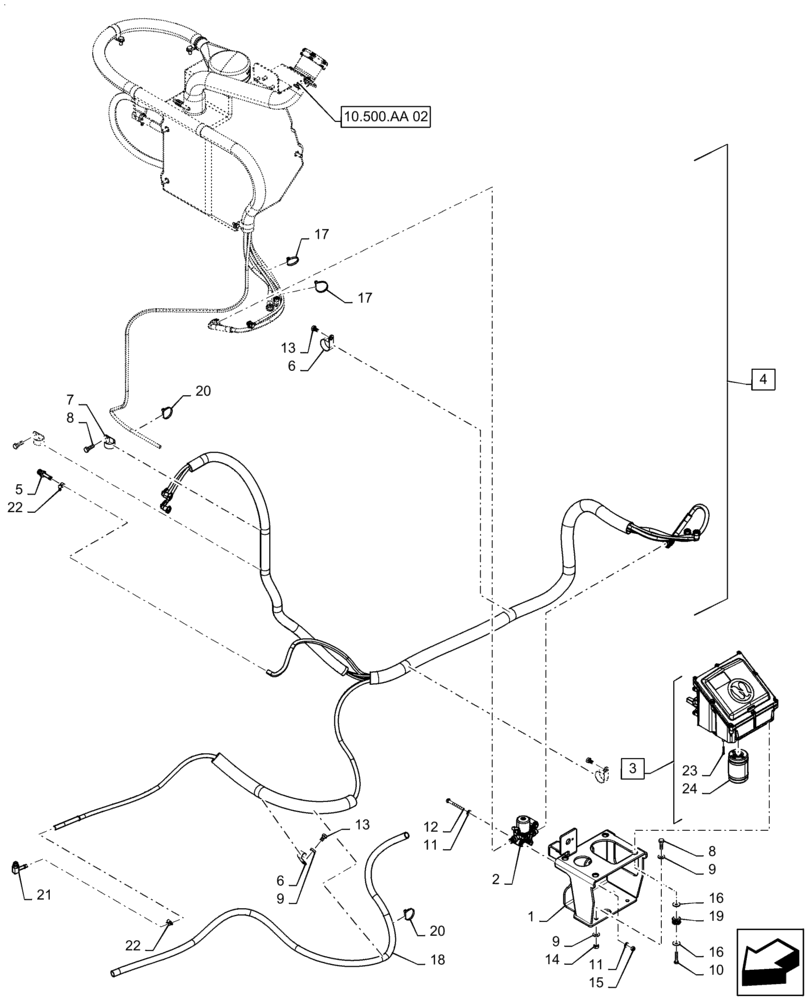

Запчасти Case 850M LT (10.500.AA [01]) - DEF TANK PLASTIC (10) - ENGINE

1

47460860

BRACKET

DEF Supply Mount

1шт.

2

84151635

HEATER VALVE

DEF Supply

1шт.

3

47364111

ECU

DEF Electronic Control, Incl 23 - 24

1шт.

4

47474956

HOSE

Assy, Front DEF, Incl 21

1шт.

5

217-380

FITTING,3/8" Hose Barb x 3/8" Male NPTF

1шт.

6

87301688

CLAMP,41.2mm, Coat, P Type

DEF Front Hose Assy Mounting Hardware

3шт.

7

87573373

CLAMP,33.3mm, Coat, 10.3mm Bolt Hole, P Type

DEF Front Hose Assy Mounting Hardware

3шт.

8

43140

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8

7шт.

9

87713132

SPECIAL WASHER,10.7mm ID x 23mm OD x 2.2mm Thk

8шт.

10

43129

BOLT,Hex, M8 x 1.25 x 40mm, LH Thd, Cl 8.8

4шт.

11

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

6шт.

12

120062

BOLT,Hex, M8 x 70mm, Cl 8.8

3шт.

13

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

4шт.

14

825-1410

NUT,M10, Cl 8

4шт.

15

9706690

NUT,M8 x 1.25, Cl 8

4шт.

16

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

8шт.

17

L11541

CABLE TIE,203.2mm L, Nylon

5шт.

18

84160812

CONDUIT

1шт.

19

434177A1

ISOLATOR

4шт.

20

87000312

CABLE TIE,4.8mm W x 203.2mm OAL, Nylon

1шт.

21

86625228

HYD CONNECTOR,90°, 3/8" Hose x 9/16-18

Incl W/ 4

1шт.

22

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

2шт.

23

84247272

FILTER,In-Line

DEFSystem Filter

1шт.

24

84254852

FILTER

Filter Element Assy, Service Kit, Denox 2

1шт.
