(10.216.AL[02]) - FUEL TANK & ASSOCIATED PARTS

Запчасти Case 850M LT (10.216.AL[02]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE

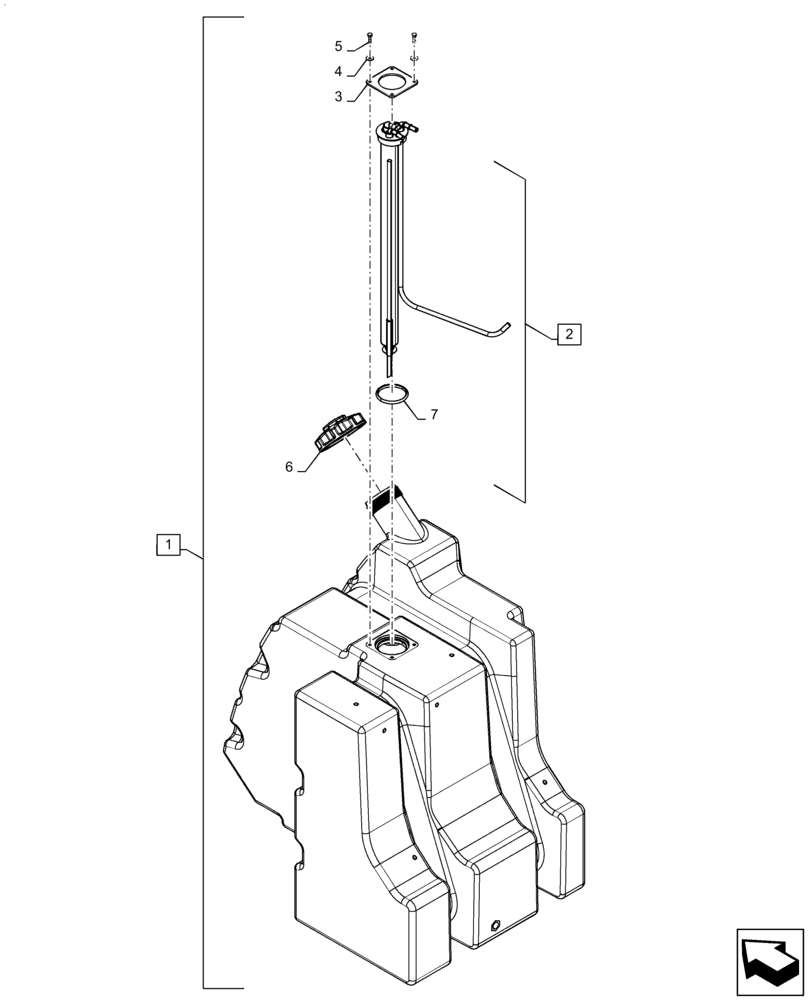

Схема запчастей Case 850M LT - (10.216.AL[02]) - FUEL TANK & ASSOCIATED PARTS (10) - ENGINE
5
7
2
6
4
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47490141

FUEL TANK

Incl 2 - 7

1шт.

2

47439870

SENDER UNIT

Level Sensor, Incl Ref 7

1шт.

3

84415880

RING,64mm OD, 90mm x 90mm L

1шт.

4

87655042

SPECIAL WASHER,8.8mm ID x 17.5mm OD x 2.2mm Thk

4шт.

5

120100

BOLT,M6 x 20mm, Cl 8.8

4шт.

6

84293447

CAP,128.7mm D

Fuel Tank

1шт.

7

84485157

SEAL

Fuel Sender To Tank

1шт.
