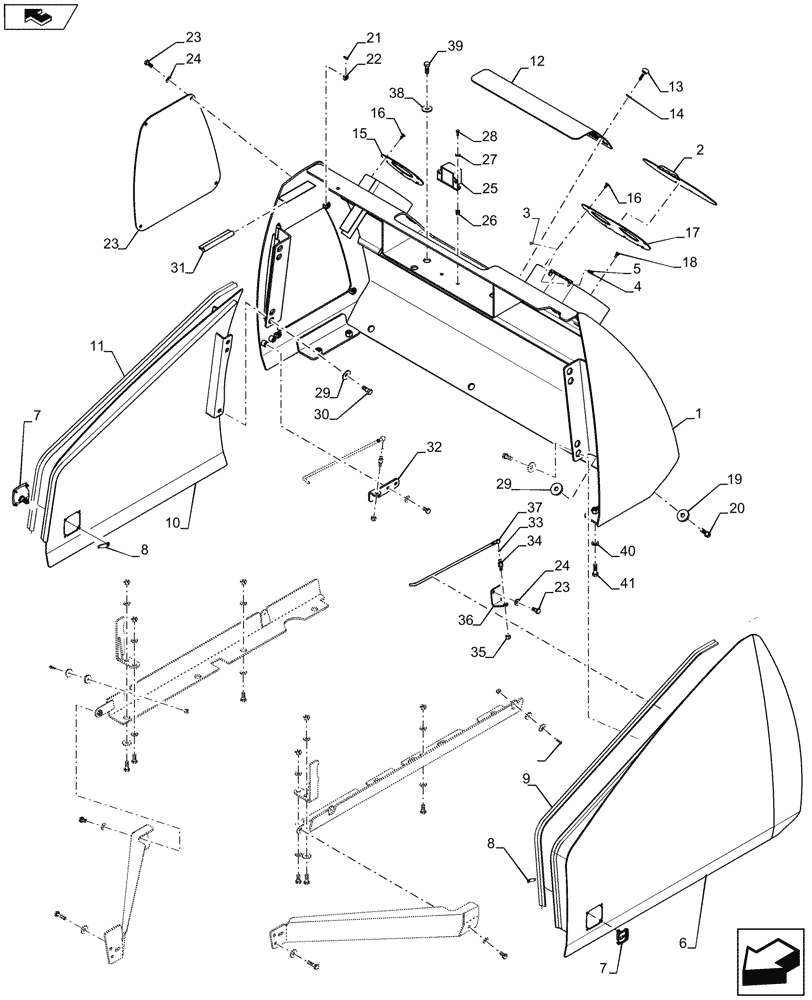

Запчасти Case 850M LT (90.105.CI[01]) - REAR COVER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47555304

COVER

1шт.

2

47555328

COVER

1шт.

3

86512439

CARRIAGE BOLT,M6 x 16mm, Cl 8.8

2шт.

4

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

5

412152

NUT,M6 x 1, Cl 8.8

2шт.

6

47435676

LH CAB DOOR

1шт.

7

47433308

LATCH

2шт.

8

47447084

LATCH

2шт.

9

235330A1

RUBBER SEAL,7620mm L

25 Ft Bulb Seal

1шт.

Original Seal is 1470mm L

1шт.

10

47435715

RH CAB DOOR

1шт.

11

235330A1

RUBBER SEAL,7620mm L

25 Ft Bulb Seal

1шт.

Original Seal is 1318mm L

1шт.

12

47385312

ACCESS COVER

1шт.

13

87551004

THUMB SCREW,M8 x 48.10mm

2шт.

14

87551005

SEALING WASHER

2шт.

15

84545240

SEAL

1шт.

16

182697A1

FASTENER

14шт.

17

84592698

SEAL

1шт.

18

A161780

BUMPER

2шт.

19

84146884

WASHER,15mm ID x 45mm OD x 6mm Thk

3шт.

20

9628065

SCREW,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

21

336371A1

PIN,4.88mm OD x 14.23mm L

4шт.

22

122958A1

SQUARE NUT

4шт.

23

9846677

BOLT,M10 x 1.5 x 25mm, Cl 10.9

4шт.

24

87655046

SPECIAL WASHER,10.65mm ID x 23mm OD x 2.2mm Thk

6шт.

25

L112318

ALARM

1шт.

26

353127A1

INSERT

2шт.

27

87655041

SPECIAL WASHER,6.85mm ID x 13.5mm OD x 2mm Thk

2шт.

28

86505530

BOLT,Hex, M6 x 1 x 20mm, Cl 10.9, Full Thd

2шт.

29

87016607

WASHER,13.5mm ID x 37mm OD x 3mm Thk

9шт.

30

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

6шт.

31

235330A1

RUBBER SEAL,7620mm L

25 Ft Bulb Seal, Bulk

1шт.

Original Seal is 150mm L

1шт.

32

47376107

BRACKET

1шт.

33

F44883

CLIP,DIN 71805 - S10

2шт.

34

109498A1

STUD

2шт.

35

231-1445

NUT,5/16"-18, GB

2шт.

36

47451770

BRACKET

1шт.

37

87308889

ROD

2шт.

38

87026355

WASHER,12.8mm ID x 50mm OD x 3mm Thk

4шт.

39

11112631

BOLT,Hex, M12 x 35mm, Cl 10.9

4шт.

40

87655043

WASHER,M12, 13.65mm ID x 24.90mm OD x 3.20mm, HT Boron, ZNM

4шт.

41

86629541

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8

4шт.
