Запчасти Case 850M LT (50.200.AK[01]) - AIR CONDITIONING CONDENSER (50) - CAB CLIMATE CONTROL

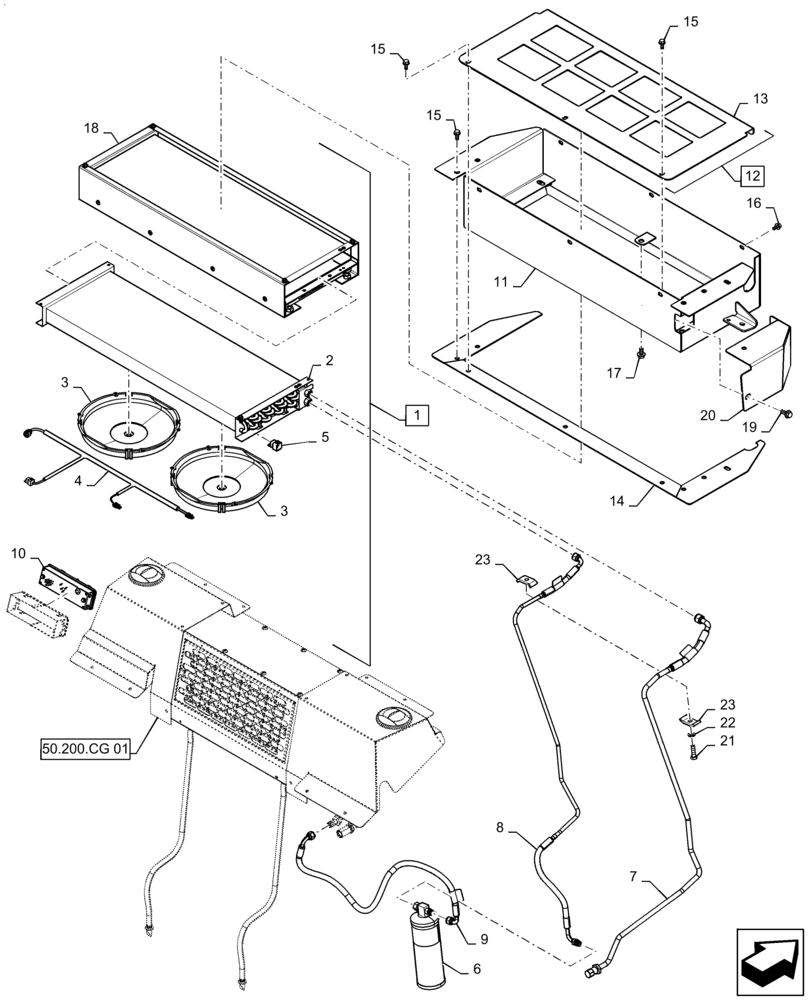

Схема запчастей Case 850M LT - (50.200.AK[01]) - AIR CONDITIONING CONDENSER (50) - CAB CLIMATE CONTROL
6
16
7
23
13
19
4
15
15
18
3
17
23
5
22
14
21
1
10
15
3
50.200.cg 01
8
20
2
9
12
11

Артикул

Название

Примечание

Количество

1

84406516

CONDENSER

Air Conditioning System, Incl 2 - 5, 18

1шт.

2

87721572

CONDENSER

Core Assembly

1шт.

3

87587491

FAN

Assy, Pancake, 24 Volt

2шт.

4

84406877

WIRE HARNESS

Internal Condenser

1шт.

5

87586970

RELAY

24 Volt

1шт.

6

87696535

RECEIVER-DRYER,Air Conditioner

1шт.

7

84549568

TUBE

Condenser To Bulkhead

1шт.

8

84419018

A/C HOSE

Condenser To Receiver-Dryer

1шт.

9

84419019

A/C HOSE,9.53mm ID x 810.77mm L

Receiver_Dryer to Cab A/C Unit

1шт.

10

87397412

CONTROL

Cab A/C

1шт.

11

84524276

HOUSING

Condenser, Main Body

1шт.

12

87488998

PLATE

Upper Condenser Housing, Incl Ref 13

1шт.

13

NSS

NOT SOLD SEPARAT

Condenser Housing Screen, Incl in Ref 12

1шт.

14

87302034

Bulk, Seal

FOAM

1140mmшт.

15

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

16

844-8016

BOLT,Hex, M8 x 16mm, Cl 8.8

5шт.

17

857-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 10.9

Mounting Hardware

6шт.

18

NSS

NOT SOLD SEPARAT

Condenser Core Housing, Incl in Ref 1

1шт.

19

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

1шт.

20

87489010

COVER

Hose Guard, Condenser Housing

1шт.

21

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

1шт.

22

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

23

D138055

CLAMP

Condenser Hose Mounting

2шт.

Выбрано товаров: 23
