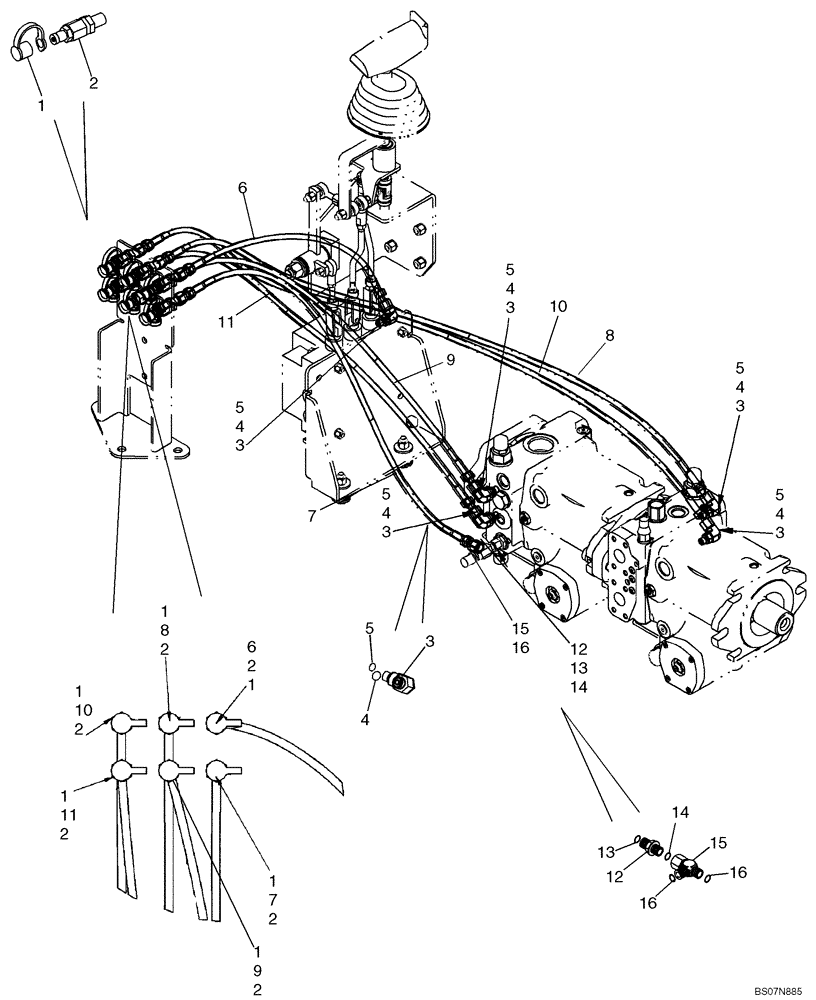

Запчасти Case 850L (06-04) - DIAGNOSTIC LINES (06) - POWER TRAIN

1

H434163

DUST CAP

6шт.

2

442012A1

LUBE NIPPLE

Diagnostic Check; Component Parts Not Serviced Separately

6шт.

3

201-303

ELBOW,90 Degree Elbow, 9/16" - 18 Male ORFS x 7/16" - 20 Male ORB

Incl. Ref 4, 5

5шт.

4

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

5

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

Boss end

1шт.

6

450821A2

HOSE ASSY.,4.76mm ID x 525mm L

525 mm (20-11/16 in); To Gage Port On The Control/Equipment Valve

1шт.

7

450820A2

HOSE ASSY.

1100 mm (43-5/16 in); Charge Pressure; To Port G1 On The Rear Pump, Right Side

1шт.

8

450823A2

HOSE ASSY.

1375 mm (54-3/16 in); Right Reverse; To Top Port MB On The Front Pump, Left Side

1шт.

9

450824A2

HOSE ASSY.

1000 mm (39-3/8 in); Left Reverse; To Top Port MA On The Rear Pump, Right Side

1шт.

10

450822A2

HOSE ASSY.

1450 mm (57-1/8 in); Right Forward; To Bottom Port MA On The Front Pump, Left Side

1шт.

11

450825A2

HOSE ASSY.

1075 mm (42-3/8 in); Left Forward; To Bottom Port MB On The Rear Pump, Right Side

1шт.

12

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

9/16 ORFS x 3/4 ORB; Incl. Ref 13, 14

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

14

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

15

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

Incl. Ref 16

1шт.

16

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal

2шт.
