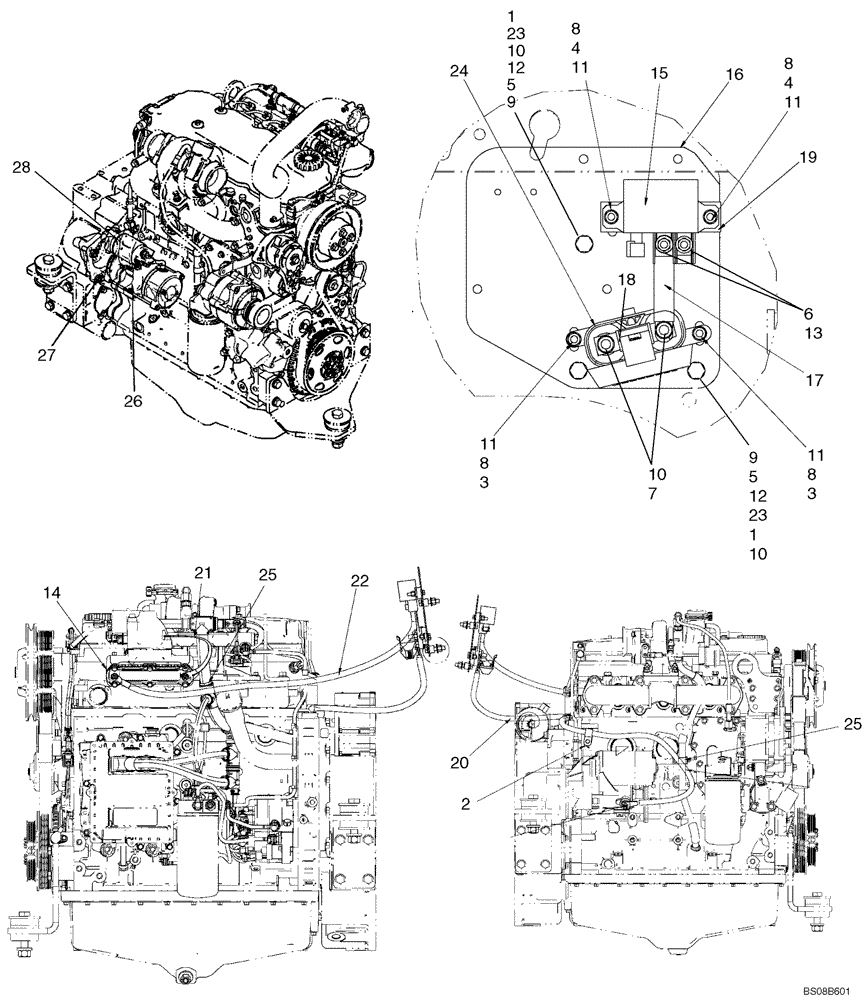

Запчасти Case 850L (04-21) - GRID HEATER (04) - ELECTRICAL SYSTEMS

1

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

3шт.

2

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

3

614-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

4

614-6035

BOLT,Hex, M6 x 1 x 35mm, Cl 8.8, Full Thd

2шт.

5

614-8040

BOLT,Hex, M8 x 1.25 x 40mm, Cl 8.8, Full Thd

2шт.

6

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

7

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

8

832-10406

NUT,M6 x 1, Cl 8

4шт.

9

832-10408

NUT,M8 x 1.25, Cl 8.8

3шт.

10

892-11008

LOCK WASHER,8mm ID

5шт.

11

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

12

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

3шт.

13

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

14

2854837

HEATER

Grid

1шт.

15

86619908

RELAY,12V, 150A

Cold Start

1шт.

16

87397601

BRACKET, SUPPORTING

Plate Cold Start

1шт.

17

87410265

BAR

Cold Start, Serial Range: Fuse-Relay

1шт.

18

87410602

FUSE,300A, Blade

300 AMP

1шт.

19

87414237

PLATE,25mm W x 102mm L x 10mm Thk

Bar 10mm Spacer

1шт.

20

87419615

CABLE ASSY.

Cold Start, Serial Range: Starter-Fuse

1шт.

21

87717884

GROUND STRAP

Cold Start Ground

1шт.

22

87729557

CABLE

Cold Start, Relay to Grid Heater

1шт.

23

407962A1

SPACER,9.8mm ID x 12.9mm OD x 11mm L

3шт.

24

440038A1

JUNCTION BLOCK

Block, Fuse

1шт.

25

D150521

CLAMP

2шт.

REF

INSTRUCTION

Optional; Motor, Starter, Heavy 12V 4.2 kw

1шт.

87475864

MOTOR, STARTER INSTALL HEAVY DUTY, OPTIONAL; Not Serviced Order Components 26 - 28

1шт.

26

87577368

STARTER MOTOR,3 hole

HEAVY, 12V 4.2 kw OPTIONAL

1шт.

26

87577368R

REMAN-STARTER,3 hole

850L, Tier 3

1шт.

26

87577368C

CORE-STARTER

Return Number

1шт.

27

R54620

BOLT,Hex, Flange, M10 x 35mm CL 10.9

3шт.

28

82012426

KIT

Cover/Solenoid Seal

1шт.

29

87584645

RESISTOR,1kohm, 0.5W

Grid Heater, Not illustrated, Used in place of Relay

1шт.
