(04-11) - HARNESS, ENGINE AND REAR WIRE HARNESS

Запчасти Case 850L (04-11) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS

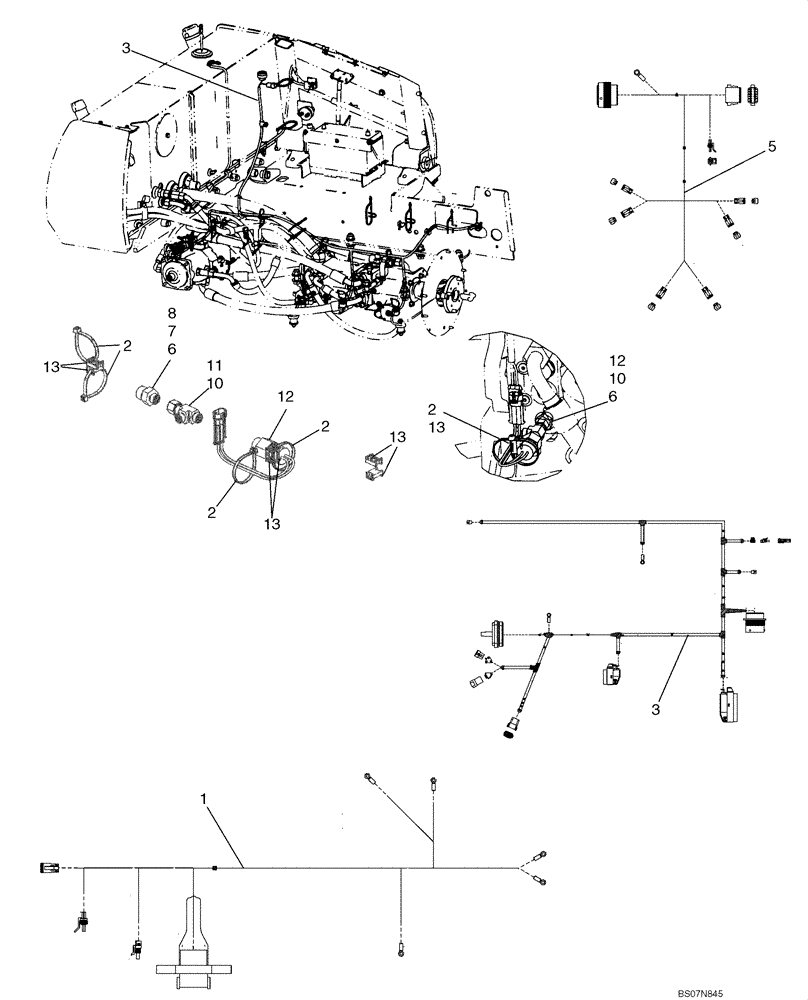

Схема запчастей Case 850L - (04-11) - HARNESS, ENGINE AND REAR WIRE HARNESS (04) - ELECTRICAL SYSTEMS
13
8
7
3
13
3
12
10
2
6
5
11
6
2
12
2
10
13
2
1
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87647731

WIRE HARNESS

Valves

1шт.

2

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

1шт.

3

87639278

WIRE HARNESS

MicroController

1шт.

5

87639280

WIRE HARNESS

Pump & Motor

1шт.

6

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

1/4 ORFS x 1/2 ORB; Incl. Ref 7, 8

1шт.

7

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

Face Seal End

1шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

Boss end

1шт.

10

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

At Tandem Pump; Incl. Ref 11

1шт.

11

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

12

87403648

PRESSURE SWITCH

Charge; At Tee On Tandem Pump

1шт.

13

86982400

SPACER

1шт.
