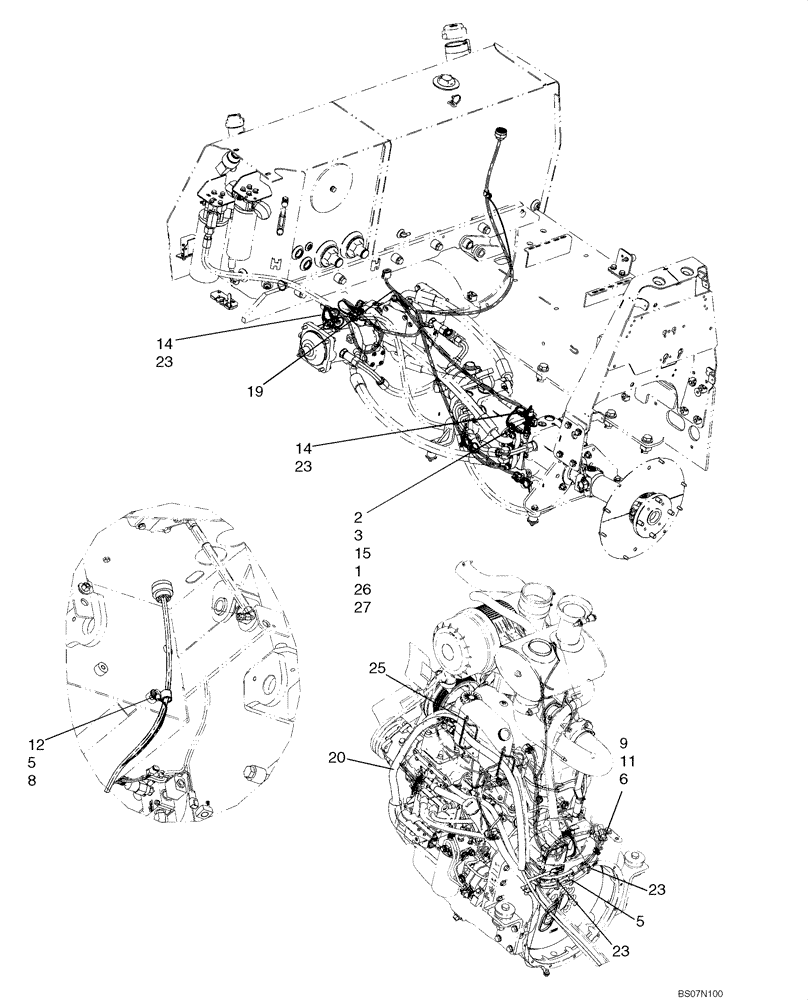

Запчасти Case 850L (04-10) - HARNESS, ENGINE (LEFT-HAND SIDE AND REAR) (04) - ELECTRICAL SYSTEMS

1

201-119

FITTING,9/16" - 18 Male ORFS x 3/4" - 16 Male ORB

Includes 26, 27

1шт.

2

201-421

TEE,9/16"-18 ORFS x 9/16"-18 Sw Run

Includes 3

1шт.

3

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

2шт.

5

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

6

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

8

614-10016

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

9

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

1шт.

11

892-11012

LOCK WASHER,M12

1шт.

12

893-11010

LOCK WASHER,Ext Tooth, M10

1шт.

14

86982400

SPACER

6шт.

15

87403648

PRESSURE SWITCH

1шт.

19

87639280

WIRE HARNESS

Pump & Motor

1шт.

20

87643804

WIRE HARNESS

Engine

1шт.

23

L11541

CABLE TIE,203.2mm L, Nylon

CABLE STRAP

6шт.

25

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

26

238-6011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

27

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.
