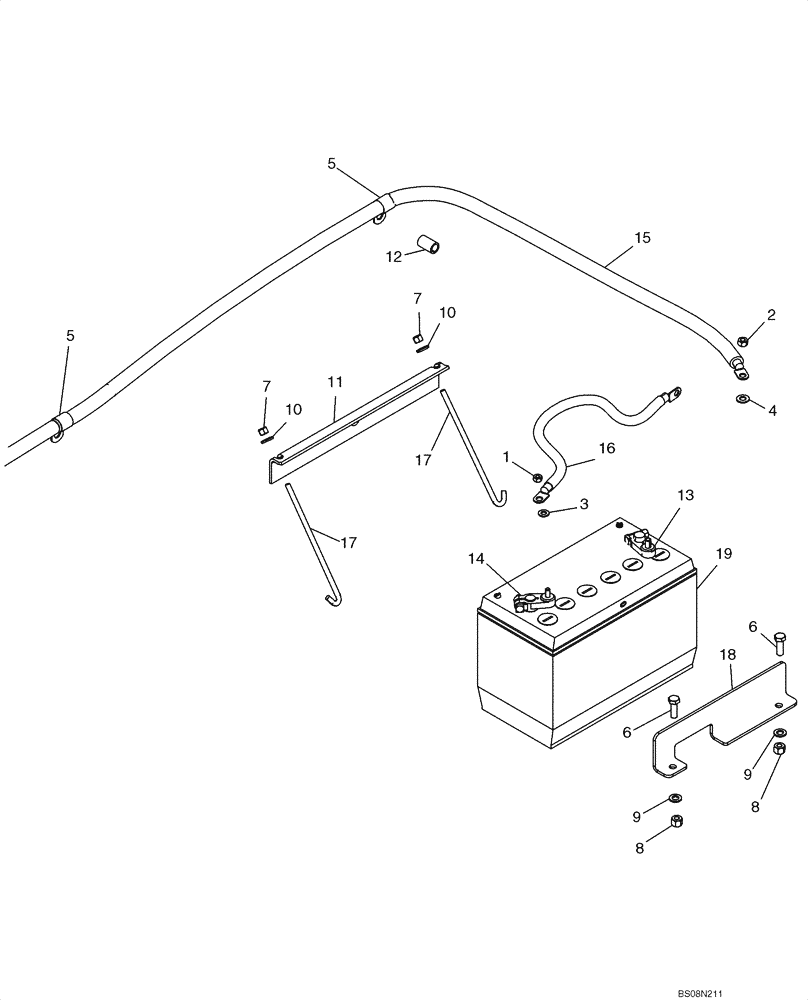

Запчасти Case 850L (04-05) - BATTERY, SINGLE - CABLES (Jan 13 2009 9:13AM) (04) - ELECTRICAL SYSTEMS

1

425-105

NUT,5/16"-18, G5

1шт.

2

425-106

NUT,3/8"-16, Cl 5

1шт.

3

495-11034

WASHER,5/16", SAE

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

5

515-25238

CLAMP,15/16", Insul, 1/2" Bolt

2шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

7

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

8

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

9

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

10

896-15008

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

11

86993151

LARGE PLATE

PLATE, LARGE Battery Mounting

1шт.

12

87302880

SPACER,13.5mm ID x 19mm OD x 30.2mm L

3/4 tube

1шт.

13

87656128

CLAMP

1шт.

14

87682197

CLAMP

1шт.

15

87717885

ELECTRIC CABLE

Cable, Positive Battery

1шт.

16

87740911

NEG BATTERY CABLE

Cable, Negative Battery

1шт.

17

416298A1

ROD

2шт.

18

417789A1

ANGLE

Plate, Battery Mounting

1шт.

19

BMF31EW

WET BATTERY

For US Only

1шт.

19

CCMF31EW

WET BATTERY

For Canada Only

1шт.
