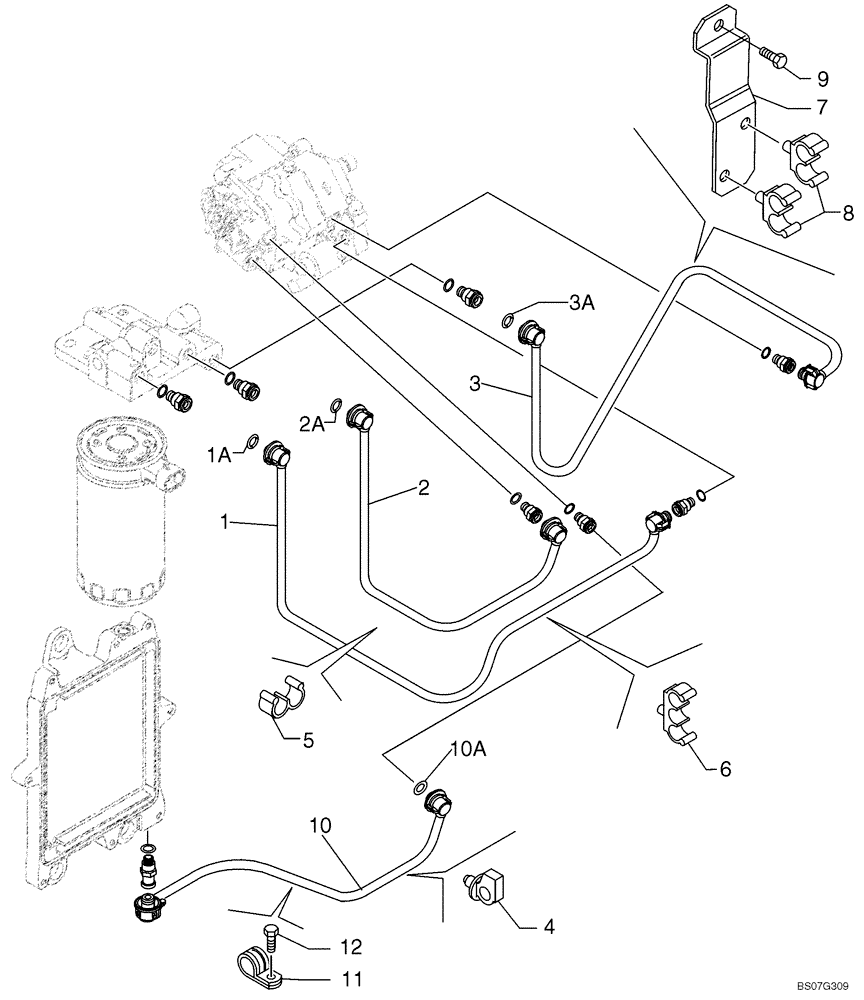

Запчасти Case 850L (03-09) - FUEL INJECTION SYSTEM (03) - FUEL SYSTEM

1

2852440

TUBE

Fuel Supply, Incl. Ref. 1A

1шт.

1a

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

2

2852443

TUBE

Fuel Supply, Incl. Ref. 2A

1шт.

2a

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

3

2852446

TUBE

Fuel Return, Incl. Ref. 3A

1шт.

3a

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

4

4896996

CLAMP,8mm D Clamping pipes

1шт.

5

2852449

CLIP,8mm ID

2шт.

6

2852794

CLIP,8mm ID

1шт.

7

2852451

BRACKET

Fuel Plumbing

1шт.

8

2852452

CABLE CLIP

2шт.

9

4897277

SCREW

1шт.

10

2855333

TUBE,419, 66 mm Length

Fuel Supply, Incl. Ref. 10A

1шт.

10a

4894095

O-RING,2.5mm Thk x 8mm ID, 60 Duro

2шт.

11

4895462

CLAMP

1шт.

12

4899063

SCREW,Hex Flg, M8 x 1.25 x 30

1шт.
