Запчасти Case 850L (03-06) - FUEL INJECTION PUMP (03) - FUEL SYSTEM

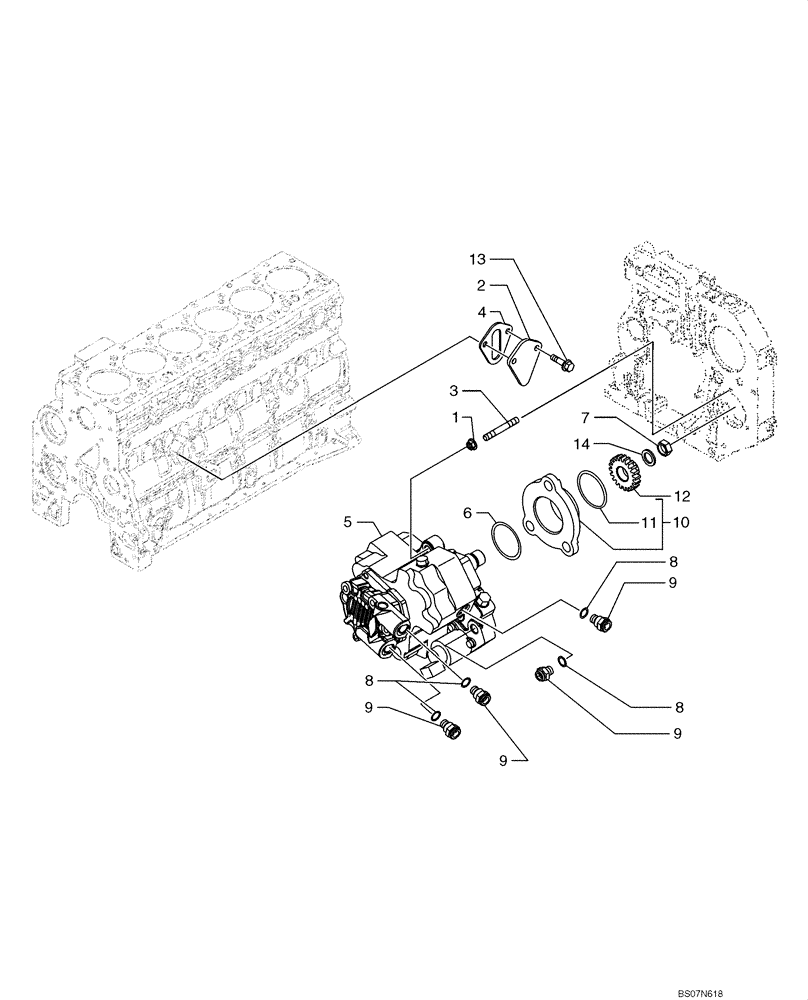

Схема запчастей Case 850L - (03-06) - FUEL INJECTION PUMP (03) - FUEL SYSTEM
9
14
6
9
9
8
4
3
1
8
9
10
2
13
12
11
5
8
7

Артикул

Название

Примечание

Количество

1

4899003

FLANGE NUT,M8 x 1.25

3шт.

2

4896952

COVER

1шт.

3

2852488

STUD,M8 x 1,25 x 50mm

M8 x 1.25 x 50

3шт.

4

4890700

GASKET,1.21mm Thk

1шт.

5

4898921

FUEL INJECTION PUMP

Incl. Refs. 6 - 9, 14

1шт.

84385110R

REMAN-INJECTION PUMP

850L TIER 3 (1/08-), Reman for New P/N 4898921

1шт.

84385110C

CORE-INJECTION PUMP

Return Number

1шт.

5

4898921R

REMAN-INJECTION PUMP

850L, Use w/ Eng. P/N 87731171 Tier 3

1шт.

5

4898921C

CORE-INJECTION PUMP

Return Number

1шт.

6

4890088

O-RING,44mm ID x 3mm Width

1шт.

7

4890634

NUT,Hex, M18 x 1.5, RH

M18 x 1.5

1шт.

8

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

4шт.

9

4893962

QUICK MALE COUPLING,M12 x 1.5

4шт.

10

2852804

HUB

ASSY. Incl. Ref. 11

1шт.

11

2852805

O-RING,2.6mm Thk x 72.6mm ID

1шт.

12

4893389

DRIVEN GEAR,27T

1шт.

13

2852234

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

2шт.

14

4890635

SPRING WASHER

1шт.

15

42541851

SOLENOID

Incl 16 - 18

1шт.

16

42541850

O-RING

1шт.

17

42541849

O-RING

1шт.

18

42550932

SCREW

Solenoid Hardware

3шт.

Выбрано товаров: 22
