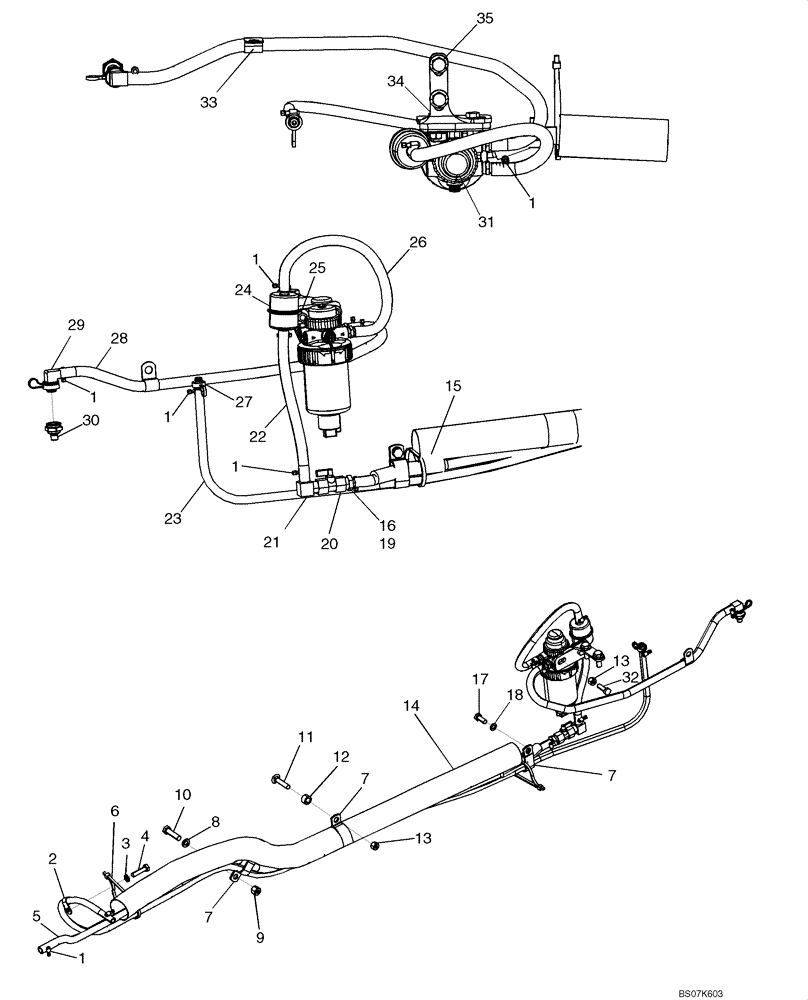

Запчасти Case 850L (03-05) - FUEL LINES (IF USED) (03) - FUEL SYSTEM

1

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

10шт.

REF

INSTRUCTION

This Application Uses A In Line Filter, Strainer; For Other Options See Figure 03-05 (01)

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

1шт.

3

892-11010

LOCK WASHER,M10

1шт.

4

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

5

87709103

FUEL HOSE,12.70 mm ID x 1682.00 mm

Fuel Supply, Cut From S11846X

1шт.

6

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

7

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

3шт.

8

892-11012

LOCK WASHER,M12

1шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

10

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

11

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

12

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

1шт.

13

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

14

87340827

SLEEVE

1350 mm

1шт.

15

87310535

SLEEVE

200 mm

1шт.

16

217-168

FITTING,1/2" Hose Barb x 1/2" Male NPTF

1шт.

17

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

18

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

19

345-147

Sealant

2шт.

20

86984713

SHUT-OFF VALVE

1шт.

21

217-335

FITTING,90 Degree Elbow, 1/2" Hose Barb x 1/2" Male NPTF

1шт.

22

87709098

FUEL HOSE,12.70 mm ID x 280.00 mm

Fuel Supply; Cut From S118466X

1шт.

23

87636002

FUEL HOSE,9.53 mm ID x 2371.00 mm, SAE 30R2 Or SAE 30R7

Fuel Return; Cut From S118400X

1шт.

24

84278141

FUEL FILTER

1шт.

25

515-25444

CLAMP,1 3/4", Insul, 7/16" Bolt

1шт.

26

87620928

FUEL HOSE,12.70 mm ID x 436.00 mm, SAE 30R2 OR SAE 30R7 TYPE1

Fuel Supply; Cut From S118466X

1шт.

27

87408919

FITTING

1шт.

28

87606669

FUEL HOSE,12.70 mm ID x 750.00 mm, SAE 30R2 or SAE 30R7

Supply; Cut from S118466X

1шт.

29

87442270

FITTING

Includes 87445405, O-Ring

1шт.

87445405

O-RING

1шт.

30

8602557

FITTING,M12 x 1.5

1шт.

31

84164617

FILTER ASSY

Water Separator Without Heater; Service With Filter Element 87803445

1шт.

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Filter Element

1шт.

32

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

33

515-25190

CLAMP,3/4", Insul, 1/2" Bolt

1шт.

34

87603659

MOUNTING PARTS

BRACKET, Water Separator

1шт.

35

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

36

87612475

SENSOR

Water in Fuel Sensor (Not Shown)

1шт.

37

87612469

SEALING WASHER

Water in fuel (Not Shown)

1шт.
