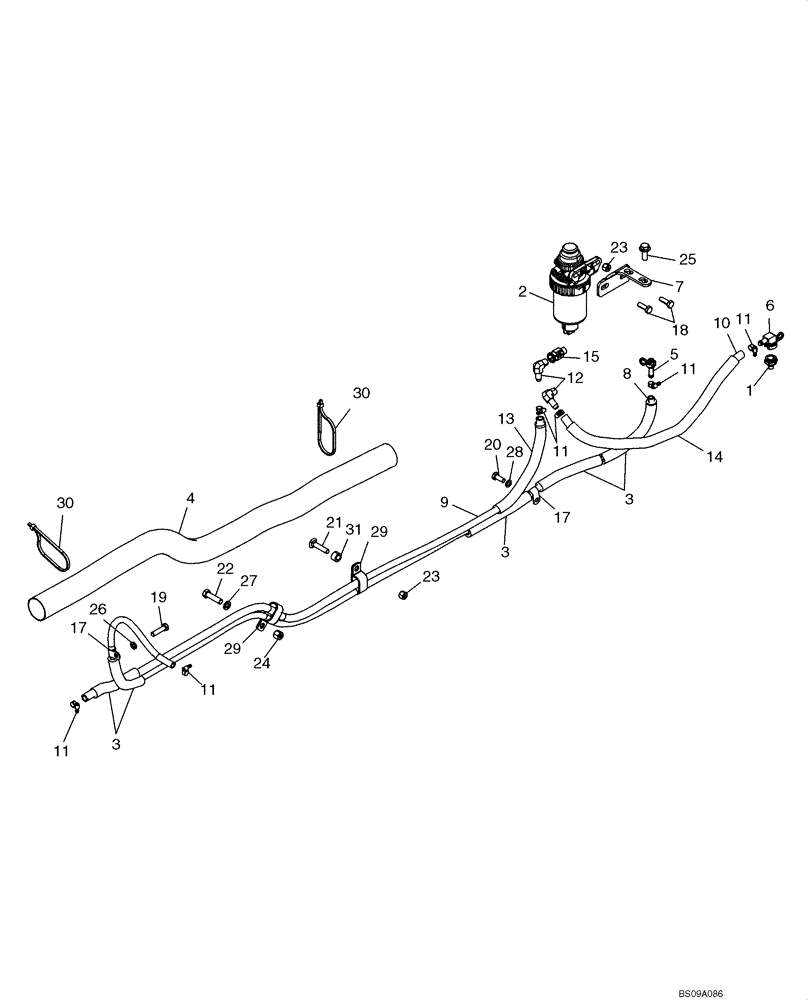

Запчасти Case 850L (03-05[01]) - FUEL LINES (IF USED) (03) - FUEL SYSTEM

REF

INSTRUCTION

This Application Does Not Use A In Line Filter, Strainer; For Other Options See Figure 03-05

1шт.

1

8602557

FITTING,M12 x 1.5

1шт.

2

84164617

FILTER ASSY

Water Separator Without Heater; Uses 87803445 Filter Element

1шт.

87803444

FUEL FILTER,79.2mm OD x 109.2mm L

Filter Element

1шт.

3

87310535

SLEEVE

200 mm

2шт.

4

87340827

SLEEVE

1350 mm

1шт.

5

87408919

FITTING

1шт.

6

87442270

FITTING

Includes 87445405, O-Ring

1шт.

87445405

O-RING

1шт.

7

87603659

MOUNTING PARTS

Bracket

1шт.

8

87636002

FUEL HOSE,9.53 mm ID x 2371.00 mm, SAE 30R2 Or SAE 30R7

Fuel Return; Cut From S118400X

1шт.

9

87709103

FUEL HOSE,12.70 mm ID x 1682.00 mm

Fuel Supply; Cut From S118466X

1шт.

10

87754973

FUEL HOSE,12.70 mm ID x 650.00 mm, SAE 30R2 Or SAE 30R7

Fuel Supply; Cut From S118466X

1шт.

11

214-1708

HOSE CLAMP,#08, 0.5" - 0.91", Type M Worm

6шт.

12

217-290

FITTING,90 Degree Elbow, 1/2" Hose Barb x 3/8" Male NPTF

2шт.

13

220275A1

SLEEVE

250 mm

1шт.

14

220276A1

SLEEVE

1шт.

15

284721A1

VALVE

Valve, Shut-Off, One Way

1шт.

17

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

2шт.

18

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

19

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

1шт.

20

627-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9, Full Thd

1шт.

21

711-10050

CARRIAGE BOLT,Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

22

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

23

832-10410

NUT,M10 x 1.5, Cl 8

3шт.

24

832-10412

NUT,M12 x 1.75, Cl 8

1шт.

25

857-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

26

892-11010

LOCK WASHER,M10

1шт.

27

892-11012

LOCK WASHER,M12

1шт.

28

895-18010

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

29

H434289

MOUNTING CLIP,7/8”, Insulated, 1/2” Bolt

2шт.

30

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP

2шт.

31

M42296

SPACER,1/2" X-Strng Pipe x 1/2"

1шт.
