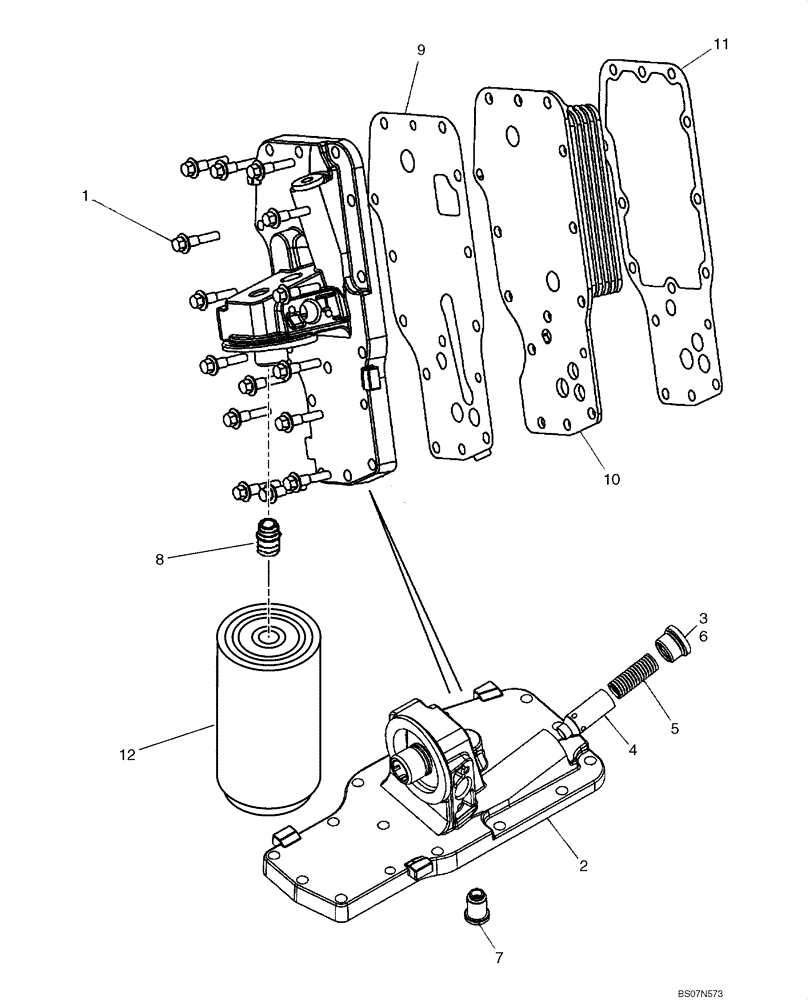

Запчасти Case 850L (02-34) - OIL FILTER AND COOLER (02) - ENGINE

1

4899019

SCREW,Hex Flg, M8 x 1.25 x 35

15шт.

2853780

FILTER HEAD

Housing Assy. Incl. Refs. 2 - 8

1шт.

2

4899566

FILTER HEAD

1шт.

3

2853781

PLUG,Hex, M22 x 1.5 ORB

Incl. Ref. 6

1шт.

4

4896404

PLUNGER,10mm ID, 12mm OD, 15.44mm ID, 18.26mm OD

Pressure Reg.

1шт.

5

4895045

SPRING,Compression, 14.7mm OD x 66mm L

1шт.

6

4899035

O-RING,2.62mm Thk x 18.39mm ID

1шт.

7

J936365

VALVE PRESSURE RELIE

1шт.

8

4893391

ADAPTER,M24 x 2 x M27 x 2

1шт.

9

4896409

GASKET,1.55mm Thk

1шт.

10

4896407

OIL COOLER

1шт.

10

2853604

OIL COOLER

In Alternative

1шт.

11

2830559

GASKET,0.5mm Thk

1шт.

12

REF

INSTRUCTION

INSTRUCTION, FILTER, Engine Oil; See Figure 02-32

1шт.
