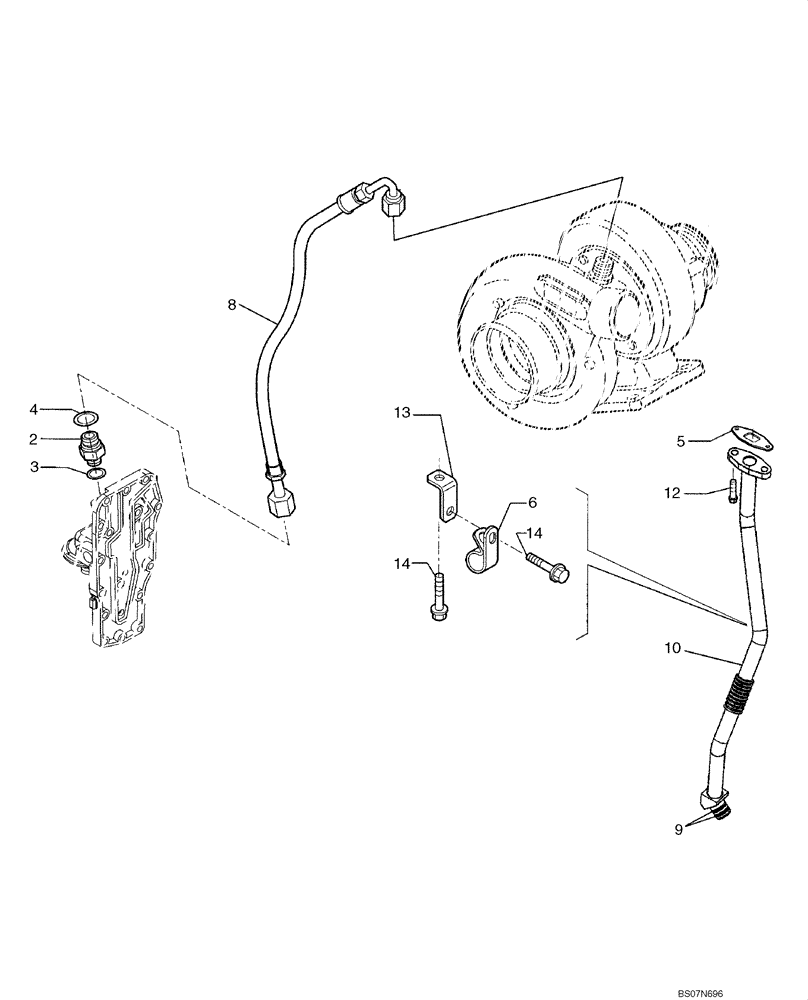

Запчасти Case 850L (02-33) - PIPING - ENGINE OIL (02) - ENGINE

2

4895107

HYD CONNECTOR,11/16"-16 x M12

Incl. Ref 3, 4

1шт.

3

4899107

O-RING,1.8mm Thk x 10.52mm ID

1шт.

4

4899108

O-RING,0.364mm ID x 0.07mm Width

1шт.

5

4891288

GASKET,0.8mm Thk

Oil Drain

1шт.

6

2852380

BRACKET

Clamp

1шт.

8

2852746

HOSE,6.35mm ID x 698mm L

1шт.

9

5135738

O-RING,0.103" Thk x 0.674" ID, -115, 80 Duro

2шт.

10

2854585

TUBE

Incl. Ref 9

1шт.

12

4899079

SCREW,Hex Flg, M8 x 1.25 x 25

Flange

2шт.

13

2852390

BRACKET

Flange

1шт.

14

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

REF

INSTRUCTION

THE FOLLOWING COMPONENTS ARE NOT ILLUSTRATED; ART NOT AVAILABLE

1шт.

4899436

CLAMP

1шт.

4896893

CLAMP,20mm W

1шт.

17044735

NUT,Hex, M8

1шт.

4895089

PLUG,0.886" L

.886" OD

1шт.

2852380

BRACKET

1шт.

4899031

BOLT,Flng, M8 x 1.25 x 25mm

1шт.
