Запчасти Case 850L (02-26) - FLYWHEEL - ENGINE - HOUSING (02) - ENGINE

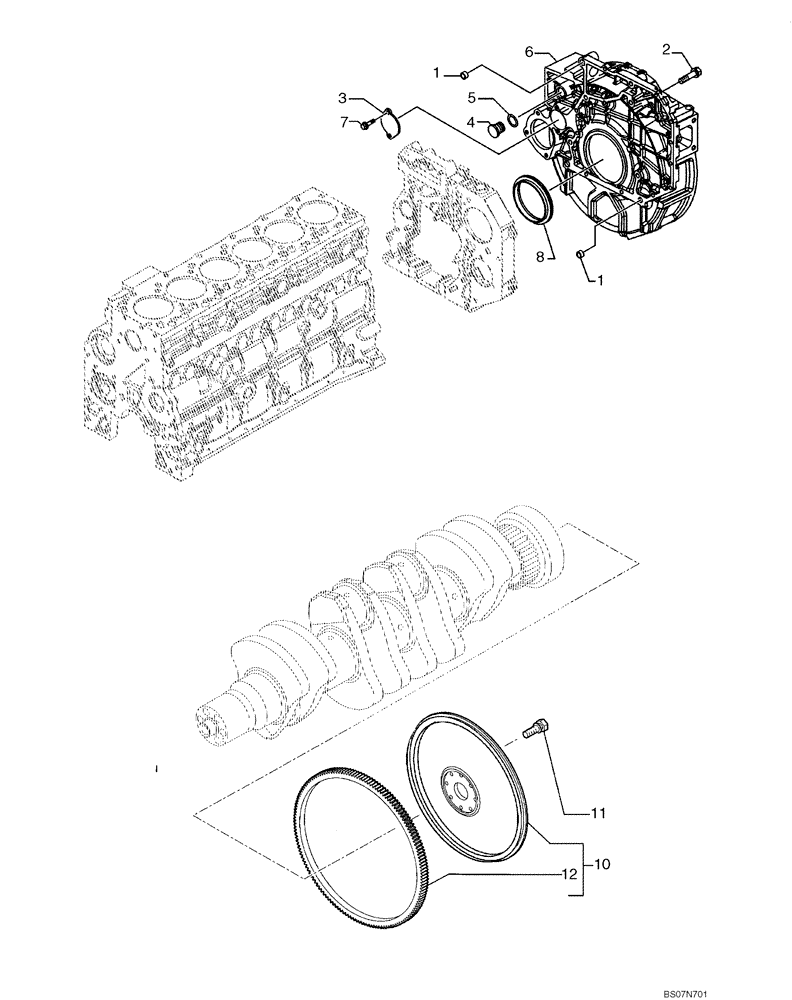

Схема запчастей Case 850L - (02-26) - FLYWHEEL - ENGINE - HOUSING (02) - ENGINE
8
1
3
1
2
11
6
10
5
7
4

Артикул

Название

Примечание

Количество

1

4899026

DOWEL,M18 x 10

2шт.

2

4899109

SCREW,Hex, M10 x 1.5 x 80

2шт.

2

4899076

SCREW,Hex Flg, M12 x 1.75 x 80

6шт.

2

2852865

FLANGE BOLT,Hex, Shldr, Lkg, M10 x 33mm

If used

1шт.

2

4897499

SCREW,Hex, M12 x 1.75 x 110mm

M12 x 110; If Used

2шт.

2

4892915

FLANGE BOLT,Hex, M10 x 1.5 x 40mm

If used

7шт.

2

4899143

SCREW,Hex Flg, M10 x 1.5 x 140

If Used

1шт.

3

4895155

COVER

1шт.

4

4895378

BUTTON PLUG,M29.2

1шт.

5

4895379

O-RING,21.82mm ID x 3.53mm Width

1шт.

6

2856957

HOUSING

HOUSING, Flywheel

1шт.

7

4899068

BOLT,Flng, M8 x 1.25 x 16mm

2шт.

8

4890833

OIL SEAL,M130 x 155 x 12.5/16

1шт.

10

2853171

ENGINE FLYWHEEL

Incl. Ref 12

1шт.

11

2852942

SCREW

With Washer, M12

8шт.

11

4894641

CAPTIVE WASHER SCREW,M12 X 1.25 X 31mm

Alternate Part to 2852942

8шт.

12

2852221

RING GEAR

1шт.

Выбрано товаров: 17
