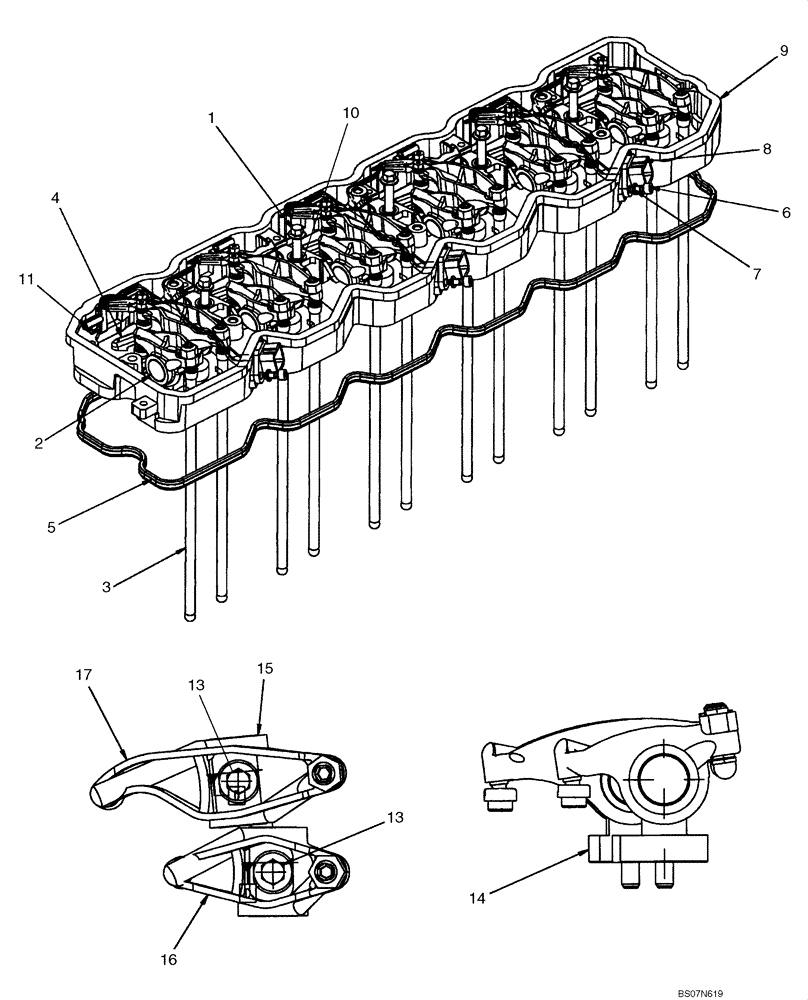

Запчасти Case 850L (02-20) - ROCKER ARMS - ASSEMBLY (02) - ENGINE

1

4895432

SCREW,M8 x 1.25 x 70mm

M8 x 1.25 x 70

5шт.

2

2856458

ROCKER ARM

Assy. Incl. Ref. 13 - 17

6шт.

3

4895031

PUSH ROD

12шт.

4

2854530

BRIDGE

Crosshead Valve

12шт.

5

2853788

GASKET,10.35mm Thk

Rocker Lever Housing

1шт.

6

2852602

HEX SOC SCREW,M6 x 16mm

Socket Head Cap

3шт.

7

2852776

WASHER,6mm ID x 11mm OD

M6 x 11 x 1.6

3шт.

8

2852427

WIRE HARNESS

3шт.

9

4899257

HOUSING

ASSY. Rocker Lever, Incl. Ref. 10

1шт.

10

4899245

SLEEVE,9mm ID x 13.9mm OD x 55.25mm L

5шт.

11

2852428

WIRE CLAMP,6mm ID

Wire Retaining

6шт.

12

4899089

SCREW,Hex Flg, M8 x 1.25 x 50

Not Illustrated

2шт.

13

2856460

BOLT,Flng, M8 x 1.25 x 55.5mm, Cl 10.9

Shoulder

2шт.

14

4893487

LEVER

Rocker Lever

1шт.

15

4894816

SHAFT

Rocker Lever

2шт.

16

NSS

NOT SOLD SEPARAT

LEVER, ROCKER, Intake

1шт.

17

NSS

NOT SOLD SEPARAT

LEVER, ROCKER, Exhaust

1шт.
