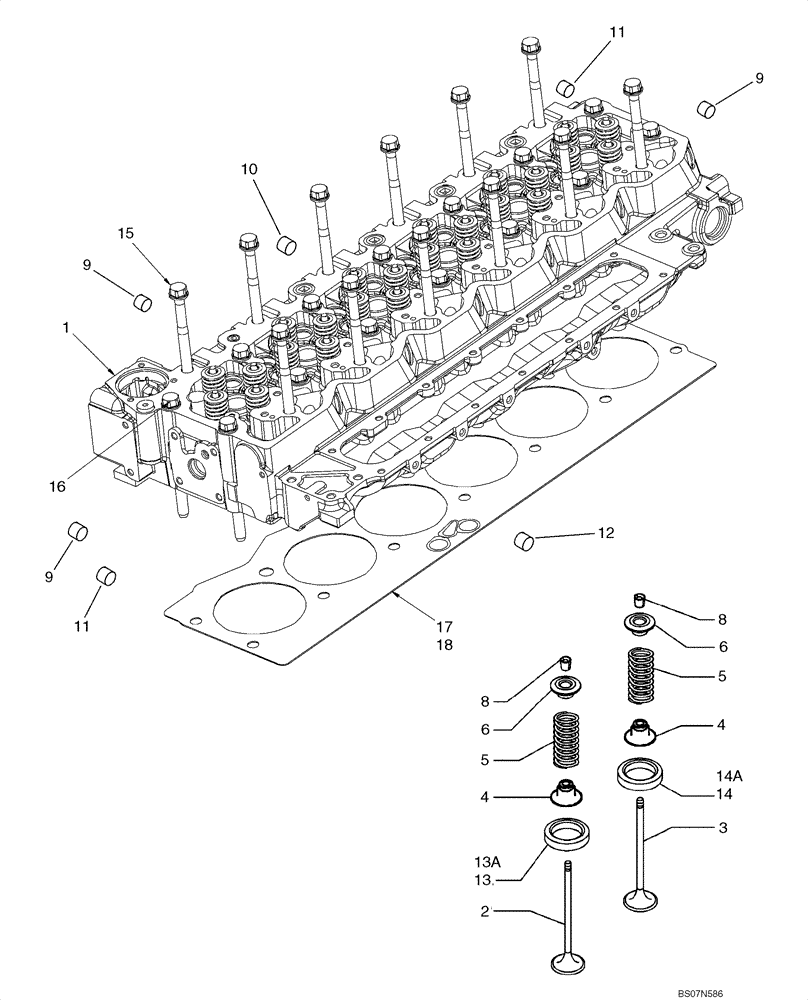

Запчасти Case 850L (02-18) - CYLINDER HEAD - ASSEMBLY (02) - ENGINE

1

2831274

CYLINDER HEAD,6 Cylinders

Assy, Incl. Refs. 1 - 14

1шт.

2831274R

REMAN-CYLINDER HEAD

850L TIER 3 (1/08-)

1шт.

2831274C

CORE-CYLINDER HEAD

Return Number

1шт.

2

4895051

STD EXHAUST VALVE

STD ENGINE EXHAUST VALVE

12шт.

3

4895052

STD INLET VALVE

STD ENGINE INLET VALVE Intake

12шт.

4

2831287

SEAL,12.6mm ID x 28.5mm OD x 0.6mm Thk

Valve Stem Seal

24шт.

5

2831473

VALVE SPRING,Compression, 18.8mmOD x 45.2mm L

24шт.

6

4895074

CUP,18mm ID

Retainer

24шт.

7

4893036

PIPE PLUG,3/4"-14 NPTF

Not Illustrated

1шт.

8

4899081

ROCKER ARM COTTER

24шт.

2831278

CYLINDER HEAD,6 Cylinders

Assy. Incl. Refs. 8 - 12, 13, 14

1шт.

2831278C

CORE-CYLINDER HEAD

Return Number, For N.A. Only

1шт.

2831279

CYLINDER HEAD,6 Cylinders

Assy. Incl. Refs. 8 - 12, 13A, 14A; In Alternative

1шт.

2831279C

CORE-CYLINDER HEAD

Return Number, For N.A. Only

1шт.

9

4895085

EXPANSION PLUG,25.74mm

13шт.

9

4895408

PLUG,0.511" L

.511" OD

2шт.

10

4895089

PLUG,0.886" L

.886" OD

11шт.

11

4895406

EXPANSION PLUG,9.8mm OD

7шт.

12

4895407

EXPANSION PLUG,38.28mm OD

38.28mm OD

2шт.

13

4897106

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

Used on Cylinder Head Assy. 2831278

12шт.

13a

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

Used on Cylinder Head Assy. 2831279

12шт.

14

4897578

VALVE SEAT,28mm ID x 34.9mm OD x 5.75mm L

Used on Cylinder Head Assy. 2831278

12шт.

14a

4893244

VALVE SEAT,28.42mm ID x 34.9mm OD x 5.75mm L

Used on Cylinder Head Assy. 2831279

12шт.

15

4891024

BOLT,Flng, M12 x 1.75 x 130mm

Hex Flange Hd Cap, M12 x 130

12шт.

16

4891025

SCREW,Flng, M12 x 1.75 x 150mm

Hex Flange Hd Cap, M12 x 150

14шт.

17

2830704

CYLINDER HEAD GASKET,1.25mm Thk

1.25 mm

1шт.

18

2830705

CYLINDER HEAD GASKET,1.15mm Thk

1.15 mm

1шт.
