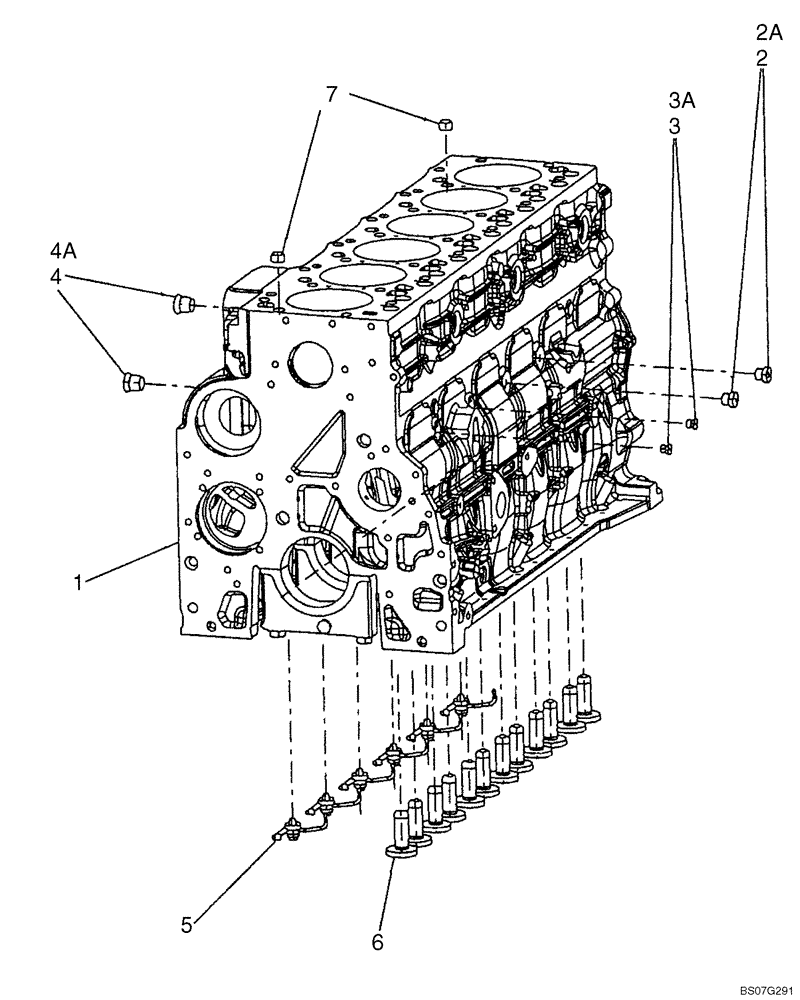

Запчасти Case 850L (02-11) - CYLINDER BLOCK - PLUG ASSY (02) - ENGINE

1

2830074

CYLINDER BLOCK,6 Cylinders

ASSY. See Figure 02-10

1шт.

2

4895605

HEX SOCKET PLUG,M14 x 1.5

Incl. Ref. 2A

2шт.

2a

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

3

4899009

PLUG,M10 x1

Incl. Ref. 3A

2шт.

3a

4899072

O-RING,1.6mm Thk x 8.1mm ID

1шт.

4

4895392

HEX SOCKET PLUG,M18 x 1.5

Incl. Ref. 4A

2шт.

4a

4895393

O-RING,2.2mm Thk x 15.3mm ID

1шт.

5

2852202

NOZZLE, PISTON COOLI

6шт.

6

4891226

TAPPET

12шт.

7

4895049

DOWEL,M16.05 x 10

2шт.
