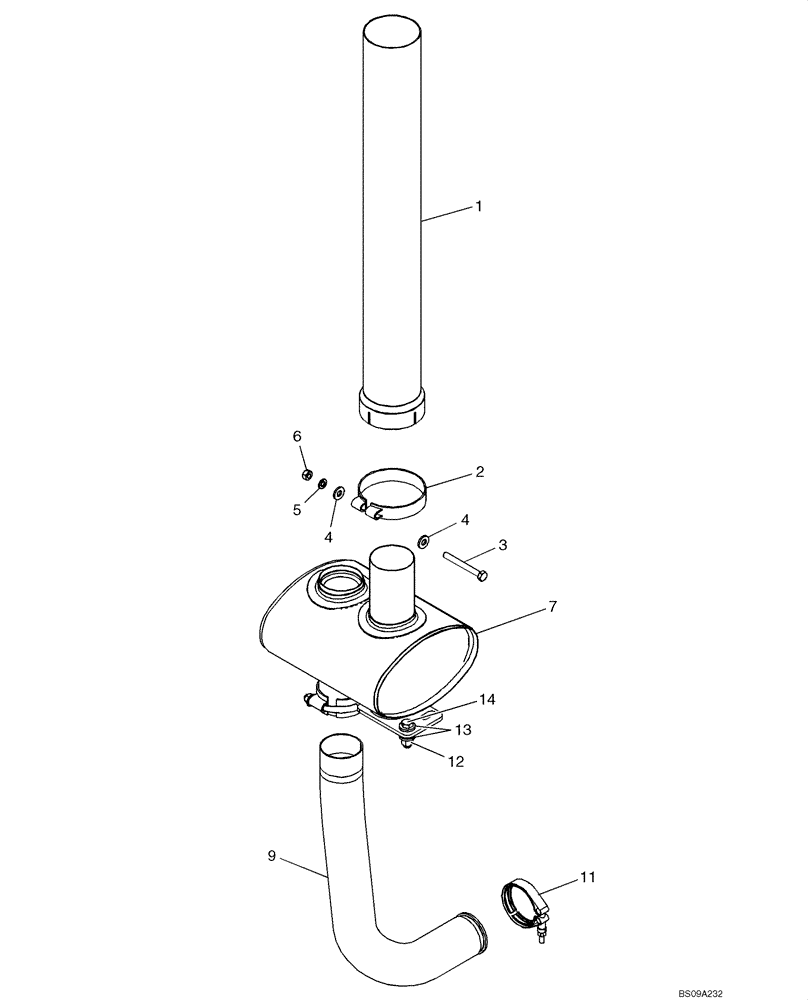

Запчасти Case 850L (02-08) - MUFFLER - EXHAUST SYSTEM (02) - ENGINE

1

189279A2

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST

1шт.

2

R27699

CLAMP,114.3mm

1шт.

3

614-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8, Full Thd

1шт.

4

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

2шт.

5

892-11010

LOCK WASHER,M10

1шт.

6

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

7

87740682

MUFFLER

Includes Clamp

1шт.

9

87604761

EXHAUST SYSTEM PIPE

ELBOW, Exhaust Outlet

1шт.

11

A170467

CLAMP,72mm ID

Includes Hardware

1шт.

12

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

13

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

4шт.

14

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.
