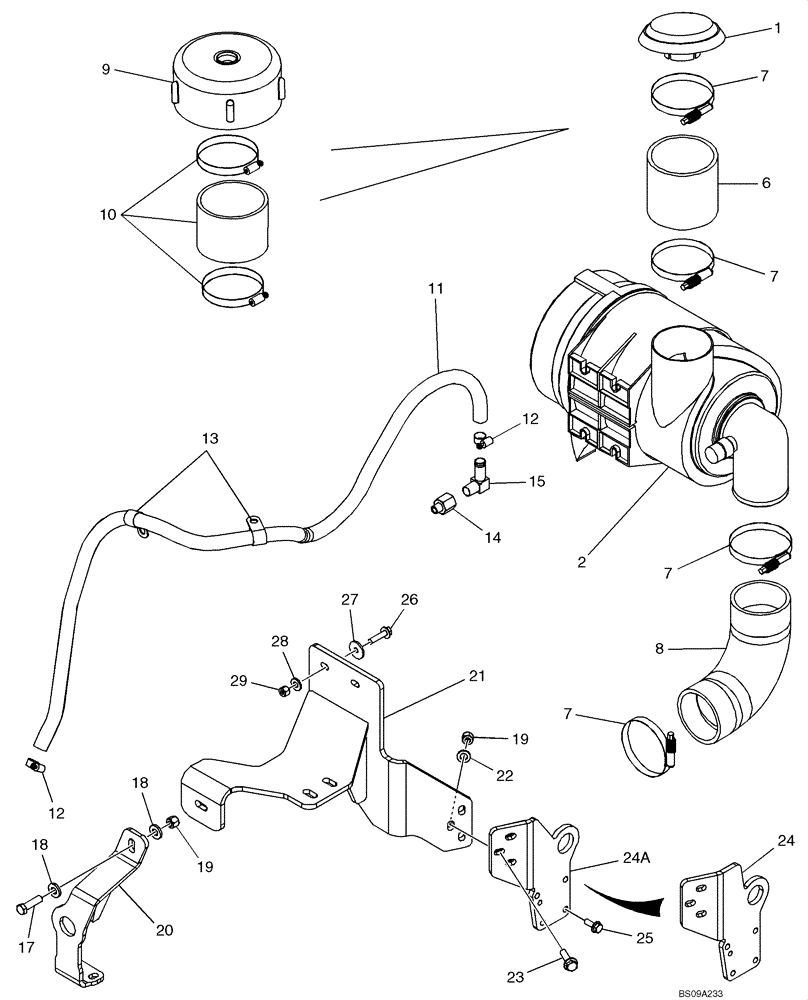

Запчасти Case 850L (02-06) - AIR CLEANER - MOUNTING (02) - ENGINE

1

L10659

CAP

Includes Clamp 214-269

1шт.

2

87434700

AIR CLEANER

See Figure 02-07

1шт.

6

87758770

HOSE,116.00 mm ID x 122.00 mm, SAE J200

Air Cleaner-Upper; Replaces 87604767

1шт.

7

L127771

CLAMP,107.95mm - 130.18mm

Replaces 214-3180, 4.25/5.125 HD Clamp, Used On Some Models

4шт.

8

87604766

RADIATOR HOSE,97.00 mm ID x 181.00 mm, SAE J20

Air Cleaner, Outlet, Lower

1шт.

9

86988018

AIR INTAKE

Includes Clamp; Component Parts Not Serviced Separately; If Used

1шт.

10

86988015

ADAPTER

Rubber

1шт.

11

87651817

HOSE,19.05 mm ID x 1430.00 mm, SAE 30R2

CCV

1шт.

12

214-1416

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

13

515-25286

CLAMP,1 1/8", Insul, 3/8" Bolt

Hardware For Clamp That Mounts Is On Figure 02-08

2шт.

14

217-1008

ADAPTER,3/8" - 18 Male NPTF x 1/2" - 14 Female NPTF

1шт.

15

217-129

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 1/2" Male NPTF

1шт.

17

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

1шт.

18

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

2шт.

19

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

20

87747960

BRACKET

Muffler Support Rear

1шт.

21

87740688

BRACKET

Air Cleaner & Muffler

1шт.

22

86625255

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

3шт.

23

854-12040

BOLT,Hvy Hex, M12 x 40mm, Cl 10.9

4шт.

24

87744313

PLATE, Engine Eye Lift; No Longer Available, Order 84173866 Eye Lift, Ref 24A

1шт.

24a

84173866

PLATE, Engine Eye Lift

1шт.

25

87698836

BOLT,M10 x 25mm, Full Thd, Cl 10.9

4шт.

26

9804263

BOLT,M10 x 49.2mm, Cl 8.8

4шт.

27

39519

WASHER,10.31mm ID x 34.9mm OD x 3.57mm Thk

4шт.

28

896-15010

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

29

832-10410

NUT,M10 x 1.5, Cl 8

4шт.
